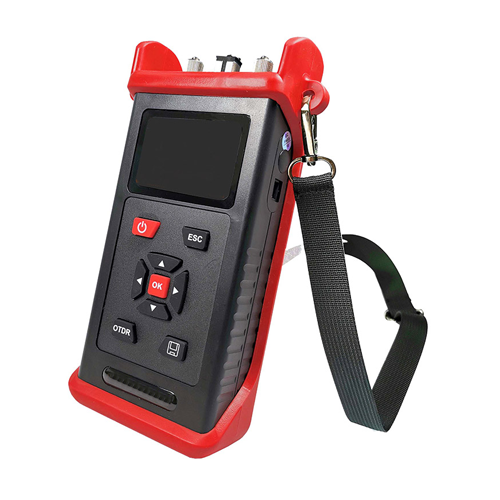

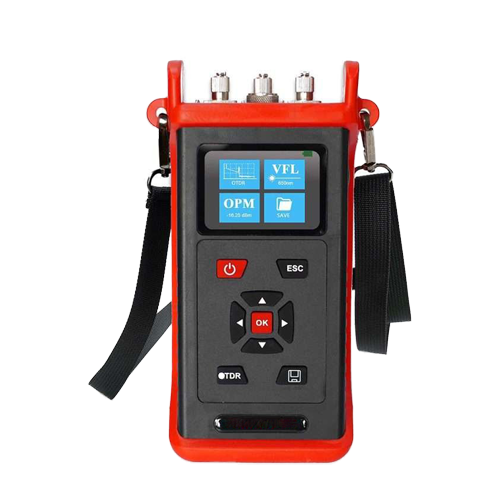

Built in Filter OTDR with High Dynamic Range and Testing Tools – Amuse Tech Solutions
Advanced optical time-domain reflectometer with built-in filter for precise online testing in passive optical networks. Includes multiple functions.
Description
Features
- Built-in optical filter
- High dynamic range
- Compatible with splitters
- Integrated testing tools
Â
Technical Specifications
| OPM & VFL | Yes |
| Wavelength | 1625 nm (built-in filter) |
| Number of Splitters | TWH-1625D1: 1×32; TWH-1625D2: 1×64 |
| Test Dead Zone | ≤ (3 m) 9.84 ft |
| Distance Resolution | (1 m) 3.28 ft |
| Dead Zone of Reflective Event | ≤(10 m) (32.8 ft) |
| Length | can reach to (20 KM)12.4 mi |
| Dead Zone of Attenuation Event | ≤(30 m) 98.4ft |
| Pulse Width | 10ns to 500ns |
| Distance Uncertainty | 土 (2.6 ft(0.8 m) 土0.01% * Test distance土Resolution) |
| Threshold of Loss | >0.3 dB |
| Resolution of Loss | 0.1 dB |
| Connector | SC/FC(PC/UPC/APC) |
| OPM Supported Wavelength | (850, 1300, 1310, 1490, 1550, 1625) nm |
| Storage Ability | 100 items |
| Display | 2.8 in TFT color screen |
| Port | Mini USB |
| Battery | 3*AA 1.5V rechargeable lithium battery |
| Working Time | Standby >15 Hours, Test >8 Hours |
| Operating Temperature | -4 °F to +140 °F (-20 °C to +60 °C), <90%RH |
| Dimension | 7.01 in × 3.46 in × 1.42 in (17.8 cm × 8.8 cm × 3.6 cm) |
| Weight | 0.99 lbs. (450g) |
