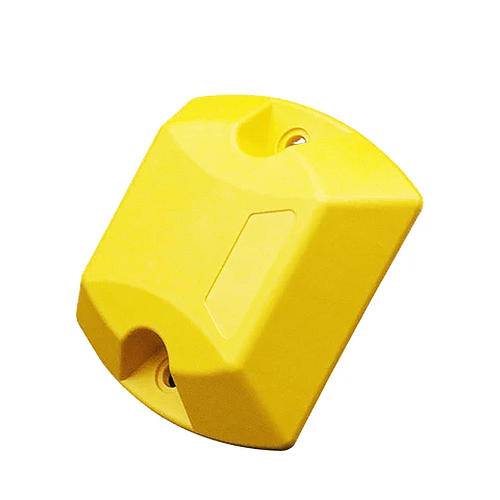

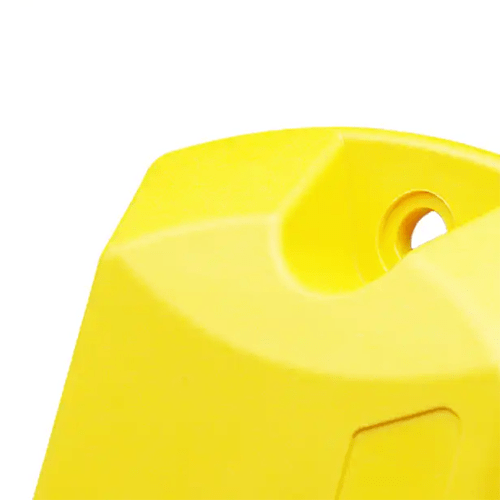

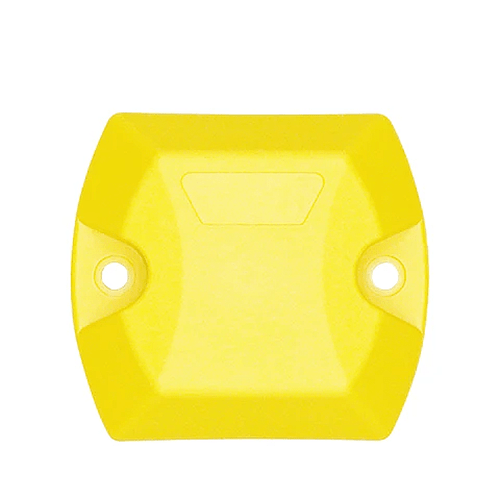

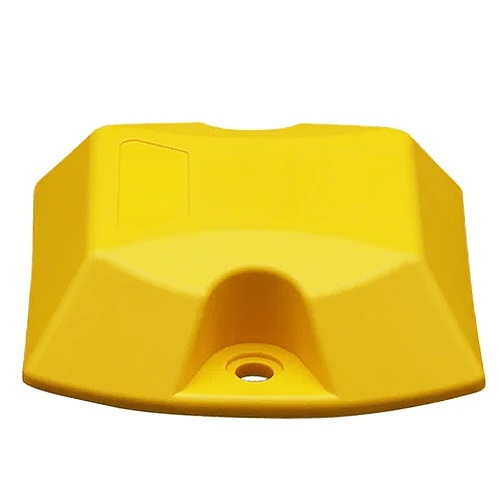

Bluetooth Beacon with Dialog DA 14580, IP 68, 120m Range, 10 Years Battery – Amuse Tech Solutions
This Bluetooth beacon for parking lots offers up to 393.7 ft transmission, powered by 2 lithium batteries, with IP 68 protection and 5-ton strength.
Description
Technical Specifications
| Chipset | Dialog DA 14580 |
| Application | Positioning and Navigation |
| Support agreement | Bluetooth BLE 4.2, Apple’s standard iBeacon protocol |
| Power supply scheme | ER 14505 lithium battery x 2 |
| Transmission | Up to 393.7 ft (120 m) |
| Endurance | 10 years |
| Degree of protection | IP 68 |
| Explosion-proof grade | Support Ex ia IIC T3 or T4 Ga |
| compressive strength | 5 t |
| Operating temperature | -40 °F to 185 °F (-40 ℃ to 85 ℃) |
| Overall dimensions | 4.2 in x 3.9 in x 1 in (107 mm x 98 mm x 26 mm)  |
| Weight | 0.57 lb (260 g) |
Click Here to Download Technical
Documentation (User Manual or Instruction Manual)
