Bluetooth Beacon with BLE , nRF52810 Chipset, 164 ft Range, and AES Security – Amuse Tech Solutions
Bluetooth beacon with BLE, 164 ft range, AES security, and CR 2032 battery. Ideal for precise indoor navigation and monitoring.
Description
Overview

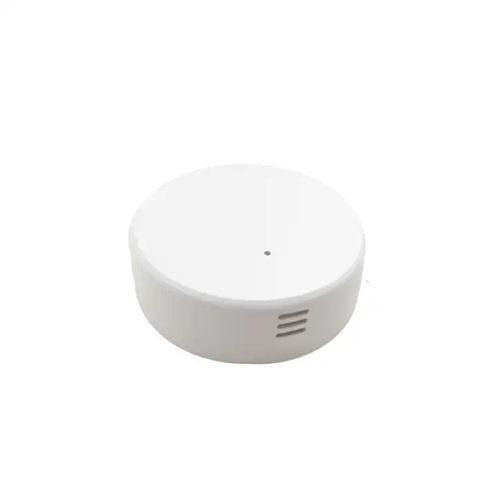

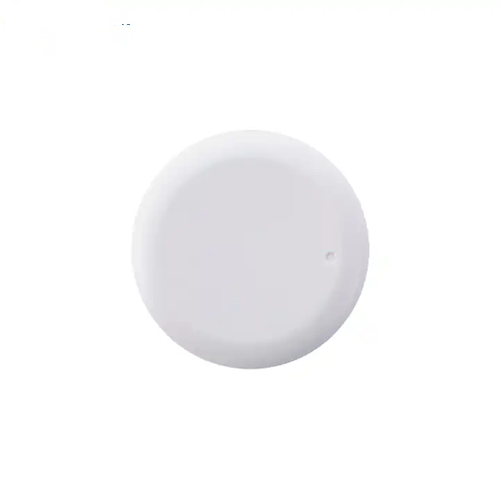

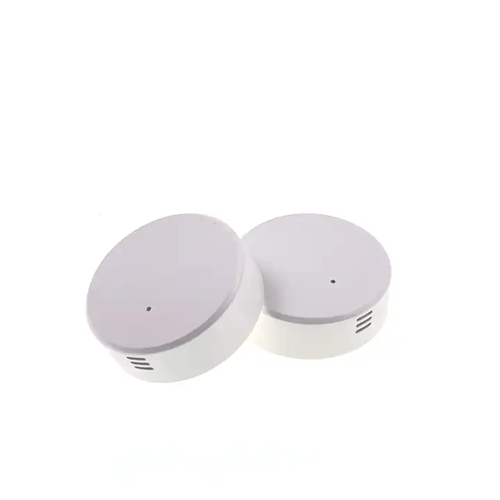

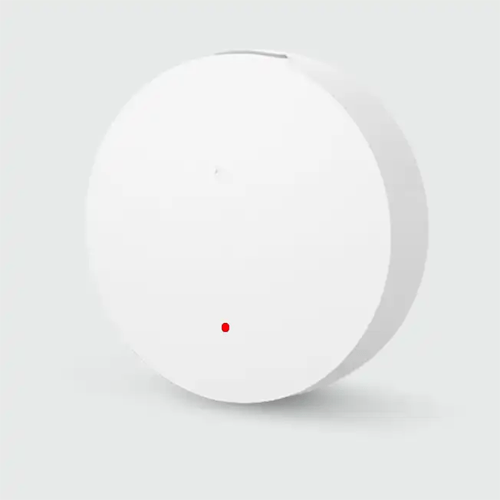

Amuse Tech Solutions temperature and humidity sensor beacon is a new generation sensor technology which is based on Beacon. This product can send collected data to phone or gateway via Beacon broadcasting.
Technical Specifications
| Bluetooth version | BLE 5.0 |
| Searching distance | 164 ft (50 m) |
| Connecting distance | 32.8 ft to 98.4 ft (10 m to 30 m) |
| Power supply | CR 2032 button cell |
| Chipset | nRf52810 |
| Working current | About 235 ua |
| Operation frequency | 2400 MHz to 2483 MHz |
| Frequency error | +/- 20 KHz |
| Standby current | 46 ua |
| Output power | 0 dBm |
| Receiving sensitivity | -93 dBm |
| Antenna | 50 ohm |
| Operation voltage | 2 V to 6 V DC |
| Security processor | AES 128 bit |
| Temperature measure range | -40 °F to 185 °F (-40 °C to 85 °C) |
| Size | 1.6 in x 0.6 in (40 mm x 14 mm) |
