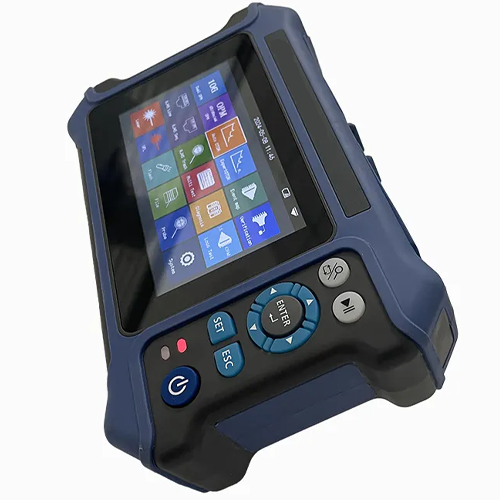

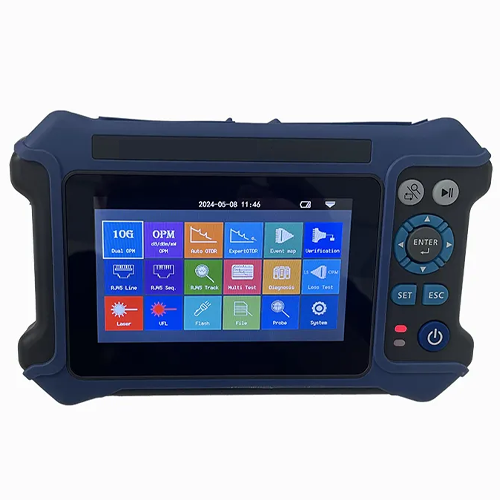

Automatic One Key Optical Time Domain Reflectometer – Amuse Tech Solutions
Compact optical testing tool with touch screen, auto testing, multi-function support, long battery life, and precise diagnostics for maintenance.
Description
Features
- Capacitive touch screen
- Automatic one-key testing
- Shock-proof and drop-proof
- Long battery standby
Technical Specifications
| Wavelength | 1310 nm to 1550 nm or 1310 nm to 1550 nm to 1625 nm ±20 nm |
| Fiber Type | G.652 SM Fiber |
| Connector | FC/UPC (Interchangeable SC/ST) |
| Display | 4.3 in Color LCD |
| Data Interface | Micro USB |
| External Storage | TF Card |
| Power Supply | Polymer Li-battery: 3.7 V, 4000 mAh; Power Adapter: 5 V DC, 2A |
| Battery Life | Standby >20 h; Measuring time >12 h |
| Laser Safety Level | Class II |
| File Format | SOR Standard File Format |
| Dynamic Range | 28 dB to 26 dB |
| Event Blind Zone | 3 m (9.8 ft) |
| Attenuation Blind Zone | 8 m (26.2 ft) |
| Test Range | 5 m to 80 km (16.4 ft to 49.7 mi) |
| Pulse Width | 5 µs to 10 µs |
| Ranging Accuracy | ± (1 m + Sampling Interval + 0.005% × Test Distance) |
| Linearity | ±0.2 dB/dB |
| Sampling Points | 16 k to 128 k |
| Sampling Resolution | 0.05 m to 8 m (0.16 ft to 26.2 ft) |
| Reflection Accuracy | ±3 dB |
| Calibration Wavelength | 1490 nm, 1577 nm |
| Measure Range | +10 to -40 |
| Isolation (dB) | 1490 nm >35, 1577 nm >35 |
| Wave Range | 800 nm to 1700 nm |
| Output Wavelength | 1310 nm to 1550 nm ±20 nm |
| Output Power | ≥-5 dBm |
| Modulation Frequency | CW, 270/1k/2kHz |
| Stability | CW, +0.5 dB/15 min (test after 15 mins of preheating) |
| Work Wavelength | 650 nm ±20 nm |
| Output Power | ≥10 mW |
| Mode | CW/1 Hz/2 Hz |
| Relative Humidity | 0 % to 95% (non-condensing) |
| Operating Temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Dimension | 7.1 in × 4.4 in × 1.7 in (18 cm × 11.1 cm × 4.4 cm) |
| Weight | 14.1 oz (≤ 400 g) |
