ASTM Tester for Pile Integrity & Bearing Capacity with 138 dB Dynamic Range – Amuse Tech Solutions
ASTM tester with 138 dB dynamic range for pile integrity analysis and monitoring precast pile driving, ensuring structural stability.
Description
Overview

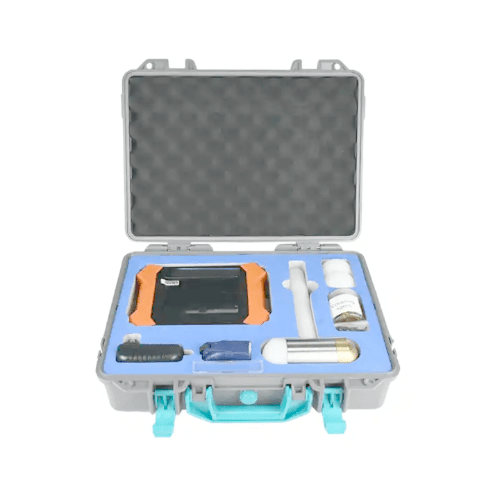

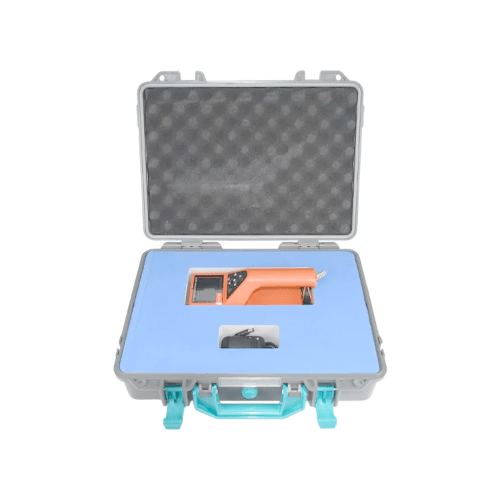

ASTM Tester for Pile Integrity & Bearing Capacity with 138 dB Dynamic Range provides analysis instrument for pile integrity testing and monitoring of precast pile driving process. This product provides under impact or vibration load, the pile structure integrity and vertical bearing capacity of single pile are tested and analyzed. It determines the bearing capacity of pile and the integrity of pile structure.
Â
Technical Specifications
| Powder Supply | 220 V 50 Hz |
| Sampling Time Intervals | 2 µs to 32768 µs |
| Length Of Sampling | 1024 or 2048 or 4096 |
| Amplifier Frequency Range | 10 kHz to 10 kHz |
| Dynamic Range | ≥138 dB |
| Noise Voltage of Sampling | ≤2 mV |
| Dimension | 82.67 in x 62.99 in x 19.68 in (220 mm x 160 mm x 50 mm) |
| Weight | 2.73 lb (1.24 kg) |
