Asset Tracking Beacon with Wirepas Mesh – Amuse Tech Solutions
Bluetooth Low Energy (BLE) is a wireless area network that allows people within its range to see its location easily, it can also be employed in the tracking of valuable assets.
Description
Overview

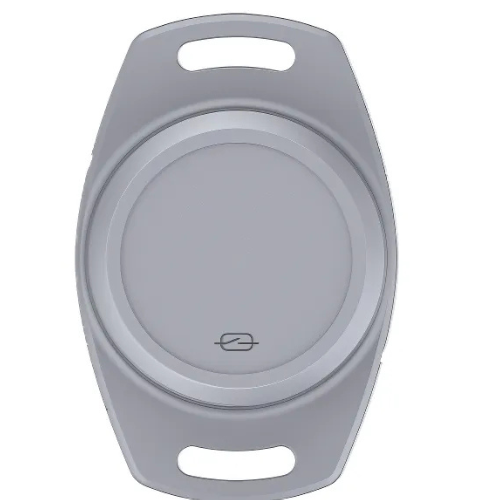

Bluetooth Low Energy (BLE) is a wireless area network that allows people within its range to see its location easily, it can also be employed in the tracking of valuable assets. This Asset Tracking Beacon with Wirepas Mesh utilizes the Bluetooth low energy asset tracking technology. It is can be employed indoors or outdoors to monitor inventory or other important use cases vital to your organization. It is portable and easy to install. You do not need specialized tools to set things up and running. It can be hung, screwed, or attached to a surface with a sticker. This Asset Tracking Beacon with Wirepas Mesh gives you a range of up to 160 meters (in open spaces without obstacles). You can easily install the BEACONX PRO APP for your iOS or Android devices to connect with the device with ease.
Features
- Nordic nRF52832 SoC （Hardware is compatible with Bluetooth 5.1 ）
- Integrated 3-axis accelerometer and magnetic (Hall-effect sensor) switch sensors
- Accelerometer sensor for motion detection can identify whether the Beacon is moving
- Smartphone app (iOS & Android, and provide SDK) easily configures all parameters
- Wide broadcast range (up to 160 meters)
- Temperature and humidity sensor integrated
- Barometer integrated to assist the gateway to locate the asset label accurately
- Can store 100,000 + temperature and humidity data and door status records with storage flash
- Long-lasting 1000-mAh lithium coin battery (replaceable)
- Smartphone application for easy configuration
- Wirepas mesh supported
Technical Specifications
| Power Supply | Replaceable 1000mAh lithium coin CR2477 battery |
| Average Current | 21uA (Default settings, without 3-axis G-sensor) 28uA (Default settings, motion detection is always active) |
| Lifetime | 4 years (Default settings, without 3-axis G-sensor) 3 years (Default settings, motion detection is always active) |
| Main Chip | Nordic nRF52832 |
| Bluetooth | Bluetooth 4.2 (hardware compatible with Bluetooth 5.1) |
| Range | Up to 160 meters (in the open area and no obstacles) |
| Dimension | 2.75 in x 1.81 in x 0.82 in (70 mm x 46 mm x 21 mm) |
| Weight | (0.07 lb.) 33.5g (With battery) |
| Material | PC + ABS |
| Waterproof | IP67 |
| Installation | Hang, Sticker, Screw |
| Color | Grey |
| Button | Inner mechanical button |
| Led | Single red LED |
| Sensor | Omni polar Hall-effect sensor for magnetic switch 3-axis accelerometer sensor (optional) Temperature and humidity sensor Barometer |
| Operating Temperature | General -4°F (-20°C) to +140°F (+60°C)
-40°F (-40°C) to +185°F (+85°C) can be customized |
| Storage Temperature | -4°F (-20°C) to +158°F (+70°C) (without battery)
+50°F (+10°C) to +77°F (+25°C) (with battery) |
| Humidity | 0% ~ 95% (non-condensing) |
| Advertising Format | Apple iBeacon Google Eddystone (UID, URL, TLM) MOKO BeaconX Pro sensor data ( with 3-axis G-sensor) |
| Multi-Advertising | Support up to 6 active slots (Beacon can broadcast different advertising packets separately) |
| Power On/Off | Press inner mechanical button Magnet approaching to pull-down hall effect sensor |
| Configuration | Advertising format and data/ Beacon Name Tx Power/ Advertising interval Connection password/ Trigger options/ Sensor parameters |
| Sensor Sampling | Broadcast or notify the 3-axis G-sensor data in real time (with 3-axis G-sensor) |
| Motion Detection | 3-axis G-sensor identify whether the Beacon is moving to change the advertising status and data |
| Power Saving Mode | Motion detection stops Beacon broadcasting and make Beacon to sleep |
| Firmware Update | Nordic DFU OTA/ J-link |
| Configuration APP | BeaconX Pro APP for iOS and Android Open APP SDK for customer to develop |
| Certifications | USA (FCC)
Europe (CE-RED, CE-LVD, CE-EMC, REACH, RoHS) Other certifications or approvals can be customized |
