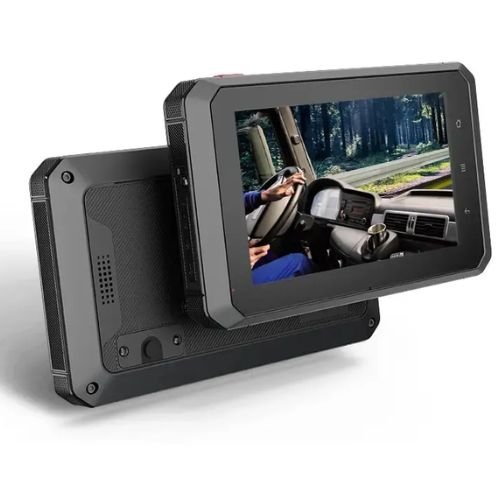

Android 12 Tablet with GNSS, NFC, and RS232 Connectivity
Explore industrial-grade performance with a 5″ Android tablet—Quad-Core, 4G, NFC, GPS, and extended interface options.
Description
Technical Specifications
| System | |
| CPU | Qualcomm Cortex-A53 64-bit Quad-Core Process 2.0 GHz |
| GPU | Adreno TM 702 |
| Operating System | Android 12 |
| RAM | 3GB/4GB |
| Storage | 32GB/64GB |
| Functional Module | |
| LCD | 5 Inch Digital IPS Panel，854 x 480 |
| Interfaces | TYPE-C(USB-A and TYPE-C should not be used together) |
| 1 x Micro SD card, Support up to 512G | |
| 1 x Micro SIM Card slot | |
| Standard 3.5mm earphone connector | |
| Camera | Rear: 8.0 megapixel camera (optional) |
| Power | DC 8-36V（ISO 7637-II） |
| Battery | 5F supercapacitor, which only takes 10min to charge, |
| can keep the tablet working for about 10s. | |
| Sensors | Acceleration, Compass, Ambient Light Sensor |
| Screen | Multi-point Capacitive Touch Screen |
| Audio | Integrated microphone |
| Integrated speaker 1W | |
| Communication | |
| Bluetooth | 2.1 EDR/3.0 HS/4.2 LE/5.0 LE |
| WLAN | 802.11a/b/g/n/ac；2.4GHz&5GHz |
| 2G/3G/4G | US Version(North America): |
| LTE FDD:B2/B4/B5/B7/B12/B13/B14/B17/B25/ | |
| B26/B66/B71 | |
| LTE TDD: B41 | |
| EU Version(EMEA/Korea/South Africa): | |
| LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 | |
| LTE TDD: B38/B40/B41 | |
| WCDMA: B1/B2/B4/B5/B8 | |
| GSM/EDGE：850/900/1800/1900 MHz | |
| GNSS | NA version:GPS/BeiDou/GLONASS/Galileo/QZSS/SBAS/ |
| NavIC, L1 + L5; AGPS, Internal Antenna | |
| EM version:GPS/BeiDou/GLONASS/Galileo/QZSS/SBAS, | |
| L1; AGPS, Internal Antenna | |
| NFC (Optional) | ● Read/Write Mode:ISO/IEC 14443A&B up to 848 kbit/s, |
| FeliCa at 212 & 424 kbit/s, | |
| MIFARE 1K, 4K, | |
| NFC Forum type 1, 2, 3, 4, 5 tags, | |
| ISO/IEC 15693 | |
| ● All peer-to-peer modes(included android BEAM) | |
| ● Card Emulation Mode (from host): | |
| NFC Forum T4T (ISO/IEC 14443A&B) at 106 kbit/s, | |
| NFC Forum T3T (FeliCa) | |
| Extended Interface (All in one cable) | |
| Serial Port | RS232 ×1 |
| RS485 ×1 | |
| CANBUS | ×1 (optional) |
| Ethernet | ×1 (optional) |
| GPIO | Inputs ×2, Outputs ×2 |
| ACC | ×1 |
| Power | ×1(8 V to 36V) |
| Environment | |
| Operating temperature | -10°C to 65°C (14°F to 149°F) |
| Storage temperature | -20°C to 70°C (-4°F to 158°F) |
