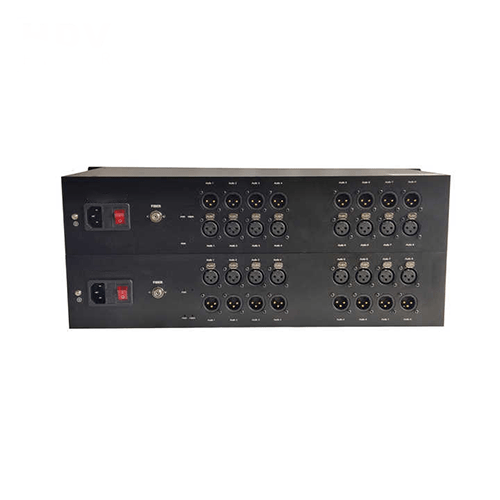

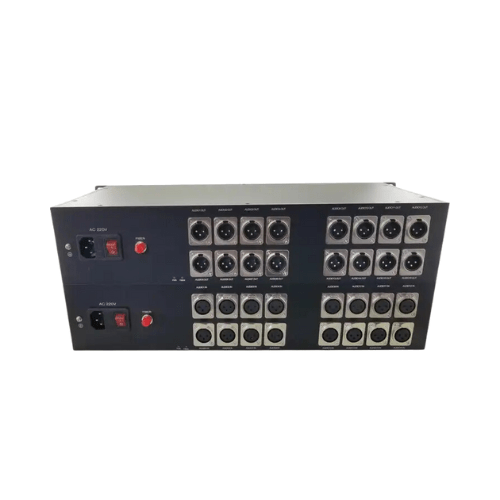

Amuse Tech Solutions XLR Audio Fiber 16
This XLR Audio Fiber 16 has number of channels of 4, input sampling rate of 33 KHz to 108 KHz, 48 KHz output sampling rate and fall time of 25 ns.
Description
Features
- Input or output AES or EBU, AES3, and S or PDIF compatibilityÂ
- Built-in auto synchronization, no need for manual setupÂ
- Supports point-to-point and point-to-multipoint configurationsÂ
- Easy plug-and-play installation for user convenienceÂ
- LED indication for status monitoring Â
- Optional optical transmission at 1310 nm, 1550 nm, CWDM, or DWDM.Â
Technical Specifications
| Input Channels | 1-16 unidirectional |
| Input Level | 0.2 to 7.0 VP-P |
| Input Sampling Rate | 32 KHz to 108 KHz |
| Input Impedance | 110 ohm (balanced) 75 ohm (non-balanced, optional)Â |
| Connector | XLR, BNCÂ |
| Output Channel | 1-16 unidirectional |
| Output Level | 5 VP-PÂ |
| Output Sampling Rate | 48 KHz (other optional)Â |
| Jitter | <0.005 UI P-PÂ |
| Rise/Fall Time | <25 ns |
| Output Impedance | 110 ohm (balanced) 75 ohm (non-balanced, optional)Â |
| Connector | XLR, BNCÂ |
| Wavelength | 1310 nm (1550 nm, CWDM optional)Â |
| Transmitter Optical Power | -10 dBm ± 2 dBm (-0 dBm ± 3 dBm optional) Receiver Optical Power -28 dBm to -3 dBm |
| Distance | 0 mi (0 Km) to 12.427 mi (20 Km) (longer optional)Â |
| Connector | FC PC (optional FC or APC, SC or PC, SC/APC)Â |
| Power Supply | AC Voltage AC 220 VÂ |
| Power Consumption | AC 220 V, <20 WÂ |
| Dimensions | 19 in (48.26 cm)1U or 2U rack mount 17.0 in x 9.1 in x 1.7 in (430 mm x 230 mm x 43 mm)Â |
| Receiver optical power | -28 dBm to -3 dBm |
| Channels | 4 Channels |
