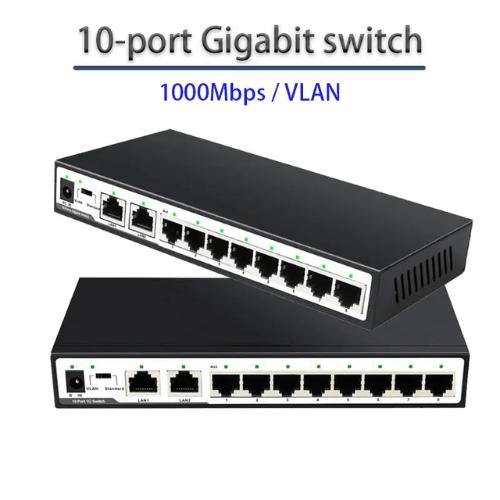

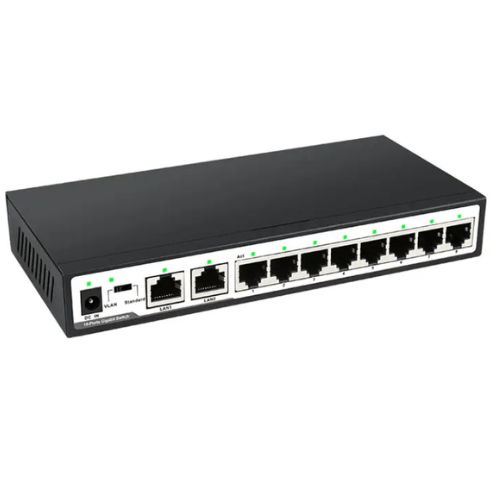

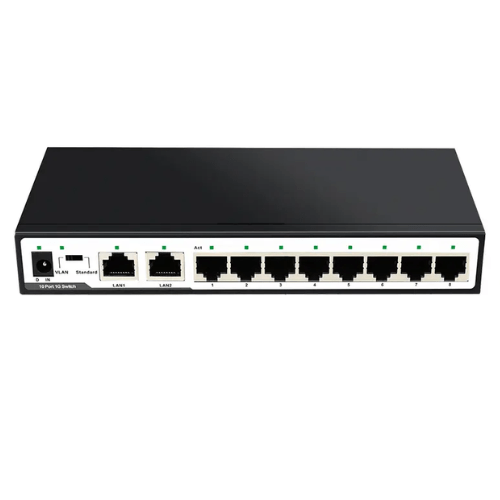

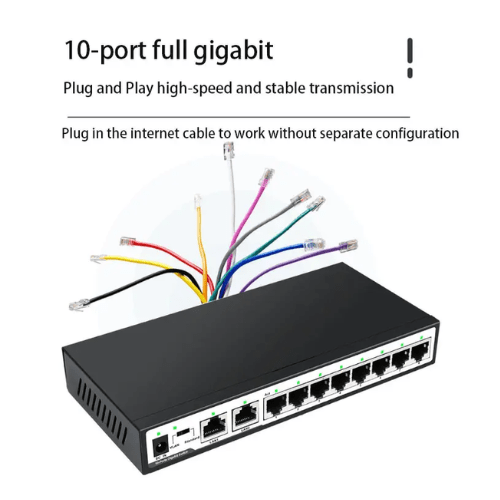

Amuse Tech Solutions Vlan 10/100/1000mbps Ethernet Smart Switcher Game With 10-Ports Gigabit Switch
This chip powers this switch, supporting IEEE standards. It features 10 or 100 or 1000 Mbps ports, VLAN mode, and LED indicators.
Description
Technical Specifications
| Chip | 2 x EN 88850 DH |
| Supported Standards and Protocols | IEEE 802.3IEEE 802.3 u
IEEE 802.3 ab IEEE 802.3 x IEEE 802.3 az IEEE 802.1 q |
| Interface | 10 10 or 100 or 1000 Mbps adaptive RJ45 ports (Auto MDI or MDIX |
| Network Media | 10 Base-T: UTP of Class 3 or above100 Base-TX: Class 5 UTP
1000 Base-T: UTP of Class 5 or above |
| Transmission Method | Store-and-forward |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| Operating Mode | Normal mode: all ports can communicate with each other normallyVLAN mode: the switch uplink port and 1 to 8 ports can communicate with each other normally, and 1 to 8 ports are isolated from each other and cannot communicate |
| Indicator Light | Each: Power, VLANPer port: Link / Act |
| Power Supply | DC 5 V / 1 A |
| Power Consumption | Maximum:Â 3.8 W |
| Working Environment Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Storage Environment Temperature | – 40 °F to 158 °F (- 40 °C to 70 °C) |
| Working Humidity | 10% RH to 90% RH non-condensing |
| Storage Humidity | 5% RH to 90% RH non-condensing |
| Dimensions | 7.48 in x 3.66 in x 1.15 in (19 cm x 9.3 cm x 2.93 cm) |
