Amuse Tech Solutions UHF RFID Reader Capable For Industrial Inventory Management– With The Frequency From 865 MHz to 928 MHz

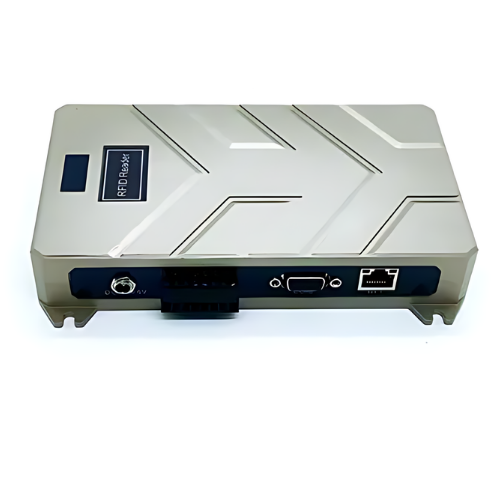

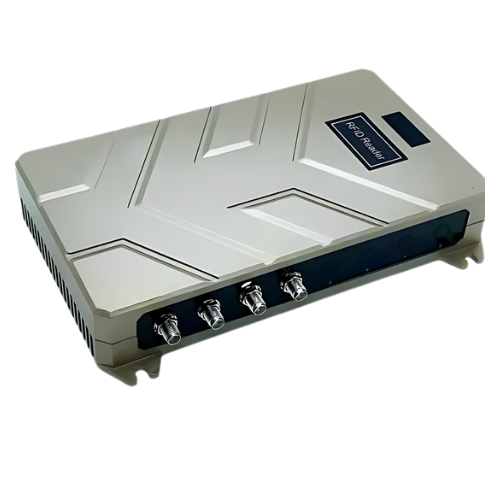

Amuse Tech Solutions UHF RFID Reader Capable for Industrial Inventory Management isa UHF RFID Reader, an ultra-high frequency RFID tag reader and writer that embodies efficiency and technological sophistication. Constructed with robust die-cast aluminum and powered by a versatile DC 12 V to 24 V input voltage, this device is engineered to excel in demanding environments.
Description
Technical Specifications
| Frequency | 902 MHz to 928 MHz FCC 865 MHz to 868 MHz ETSI |
| Air Protocol | EPC global UHF Class 1 Gen 2 I50 18000-6C |
| Input Voltage | DC 12 V to 24 V |
| Standby Current | <100 mA |
| Work Current | 1000 mA +/-5% at DC 12 V Input |
| Output Power | 0 to 33 dBm |
| Output Power Precision | ± 1 dB |
| Output Power Flatness | ± 0.2 dB |
| Receive Sensitivity | < -85 dBm |
| Reading Rate | > 800 tags per s |
| Tag Buffer Capacity | 200 tags at 96 bit EPC |
| Tag RSSI | Supported |
| Antenna Detector | Supported |
| Ambient Temp Monitor | Supported |
| Host Communication | RS-232, TCP or IP |
| GPIO | 2 input optical coupling 2 output coupling |
| Band Rate | 115200 bps |
| Cooling Mode | Air cooling |
| Material | Die-cast aluminum |
| Humidity | -5 % RH to 95 % RH (no condensation) |
| Operating Temp. | -4 °F to 149 °F (- 20 °C to + 65 °C) |
| Storage Temp | -40 °F to 185 °F (-40 °C to + 85 °C) |
| Dimensions | 4.45 in x 3.44 in x 1.06 in (113 mm x 87.5 mm x 27 mm) |
| Weight | 17.64 oz (500 g) |
