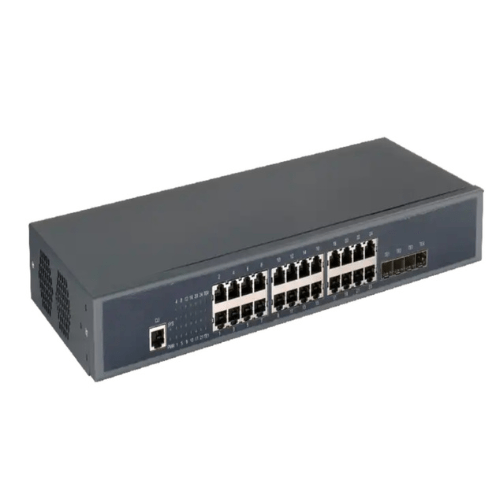

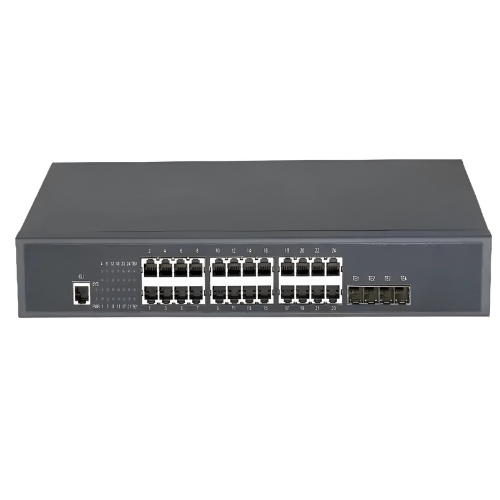

Amuse Tech Solutions T Ethernet Port and 4 x 10GE SFP
Amuse Tech Solutions T Ethernet Port and 4 x 10GE SFP, this product has a switch capacity of 128G, a data rate of 1000Mbps, an AC 100V to 240V power supply and a full load power consumption of 35W
Description
Overview
Amuse Tech Solutions T Ethernet Port and 4 x 10GE SFP, this product has a switch capacity of 128G, a data rate of 1000Mbps, an AC 100V to 240V power supply and a full load power consumption of 35W
Technical Specifications
| Conventional | Interface | 24 GE TX ports， 4 10 G SFP + ports |
| Console | 1 RJ45 port | |
| Backplane | 128 Gbps | |
| Forwarding rate | 96 Mpps | |
| Model | 1 U | |
| Installation | 19 inch rack mounted installation | |
| LED indicator | Operation indicator light, interface indicator light, power indicator light | |
| Power consumption |
no-load | <22 W |
| full-load | Â 35 W | |
| Power supply AC | AC:100 to 240 V | |
| Power supply AC | DC: 36 to 72 V | |
| Total output BTU (1000BTU/H=293W) | 153.58 | |
| Layer 2+ Switching Characteristics | VLAN | 4 K Active VLAN Â or QinQ & Selective QinQ Â or GVRP, Private VLAN or Voice VLAN |
| Reliability | Static or LACP link aggregation or Interface backup or EAPS and ERPS or ISSU uninterrupted system upgrade or JTVSS, ups to 16-units per stack or VRR or UDLD | |
| MAC address table | 16 K | |
| IP | Static route, RIP, OSPFÂ Â Â Â Â Â Â Â Â IPv4 or v6 dual stack | |
| Management | Console, Telnet, SSH v1 or 2, HTTP, HTTPS, SNMP v1/v2/v3, RMO or  TFTP, FTP, SFTP · NTP · ZTP (Zero Touch Provisioning) or SPAN, RSPAN |
|
| Jumbo frame | 9 K | |
| Watchdog function | support | |
| Port trunking | support | |
| Environmental Conditions | Working temperature | 32 F to 122 F (0 ℃  to 50 ℃) |
| Storage/Transportation Temperature | 68 F to 158 F (20 ℃  to 70 ℃) | |
| Relative humidity | 5% to 95% | |
| Fan number | no | |
| MTBF(H) | > 200,000 | |
| Security | Forwarding mode | Store to forward |
| Flash (MB) | 16 | |
| DRAM (MB) | 256 | |
| MAC | 16 K | |
| Buffer size(Mb) | 1.5 | |
| Mechanical Structure | Dimensions | 17.32 in x 7.09 in x 1.73 in (440 x 180 x 44 mm) |
| Jumbo frame | 9 K | |
| Weight about | 5.73 lb (2.6 KG) | |
| Certification | Product certification | CE or FCC or ROHS |
