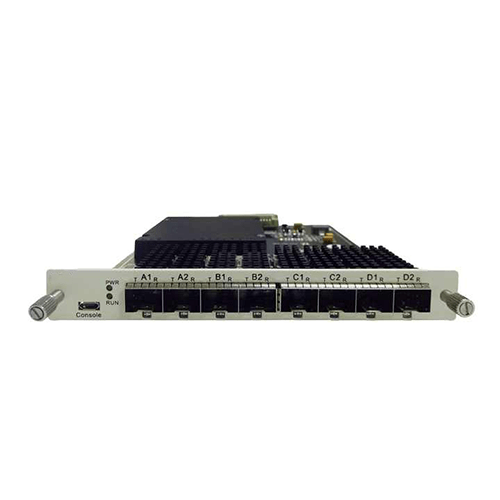

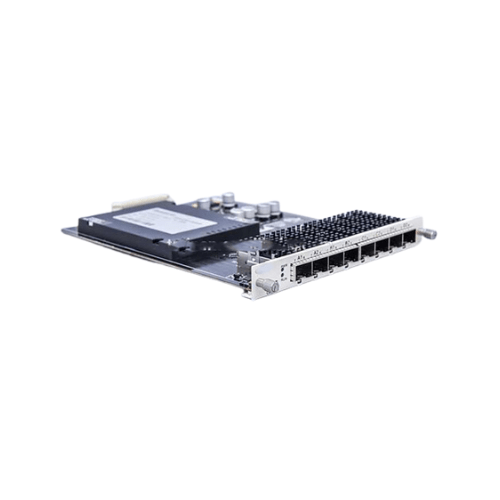

Amuse Tech Solutions SFP+ Optical Regenerator
This SFP+ Optical Regenerator has working wavelength of max. 1550 nm, extinction ratio of 10 dB SMSR of 30 dB and power dissipation of 10 W.
Description
Features
- 10 Gbps rate access capability.Â
- Full-service support: Ethernet, P SDH, ATM, etc.Â
- 3R (Re-amplification, Reshaping, Retiming) function.Â
- Single card handles 4-channel two-way or 8-channel one-way processing.Â
- High integration with space-saving plug-in design.Â
- Convenient and easy expansion for scalability.Â
Technical Specifications
| Working Wavelength | 850 nm, 1310 nm, 1550 nm (CWDM/DWDM)Â |
| Transmission Distance | 0.186 mi (0.3 km), 6.214 mi (10 km), 12.427 mi (20 km), 12.427 mi (20 km)Â |
| Input Power Range | -11 dBm to -1 dBm, -140 dBm, -160 dBm, -24 dBm to -7 dBm |
| Output Power Range | -6 dBm to -1 dBm, -60 dBm, -1 dBm to +3 dBm, 0 dBm to +4 dBm |
| Extinction Ratio | ≥10 dB |
| Dithering Performance | Conforms to ITU-T G.825 (2000)Â |
| SMSR | >30 dBÂ |
| Power Dissipation | <10 WÂ |
