Amuse Tech Solutions Saldatore Fibra Optica

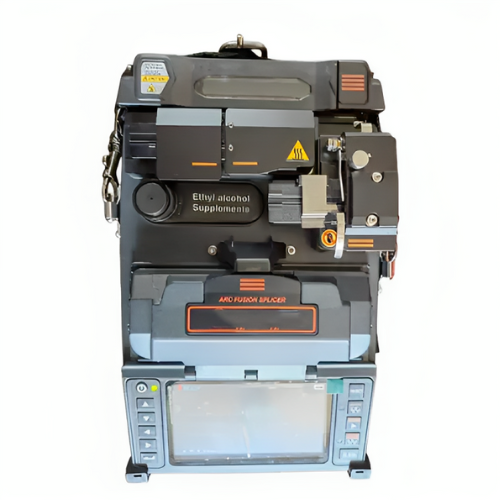

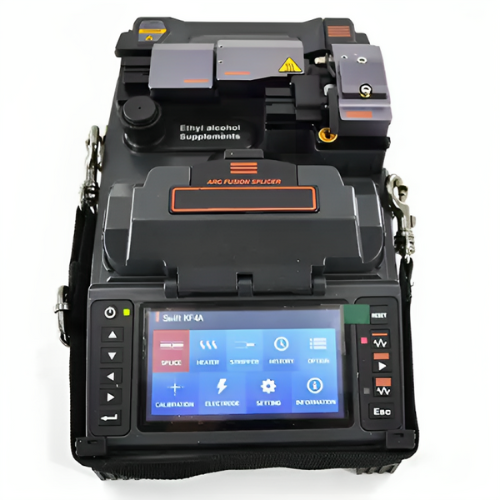

Amuse Tech Solutions saldatore fibra optical has highly advanced and accurate ACTIVE cladding alignment fusion splicer, which has been designed to perform the major 5 multifunctional features systematically: stripping, cleaning, cleaving, splicing and sleeving.
Description
Overview
Amuse Tech Solutions saldatore fibra optical has highly advanced and accurate ACTIVE cladding alignment fusion splicer, which has been designed to perform the major 5 multifunctional features systematically: stripping, cleaning, cleaving, splicing and sleeving. In addition, Optical Power Meter and V.F.L(Visual Fault Locator) is imbedded in the machine. They allow users check the splice result immediately without additional tools. (ALLINONE+, KF4A+) The Swift KF4A is best fit for fusion splicing and fusion Splice-On Connector (SOC) of FTTx network applications, which eliminates fatal issues with conventional mechanical connectors. (low quality, weak durability and high maintenance cost).
Technical Specifications
| Fiber alignment | IPAAS Clad to Clad Alignment |
| Applicable Types | 0.009 in x 0.035 in x 0.78 in x 0.11 in (0.25 mm, 0.9 mm, 2.0 mm, 3.0 mm) Indoor cable |
| Fiber count | Single fibre |
| Applicable Sizes | Cladding diameter: 125 um, Coating diameter: 150 ums to 0.11 in (3mm) |
| Fiber setting and cleaved length | 0.19 in (5 mm) to 0.62 in (16 mm) |
| Splicing modes | Splice mode: 300, Heat mode: 100 |
| Typical splice Losses | SM: 0.02 dB, MM: 0.01 dB, DS:0.04 dB, NZDS: 0.04 dB |
| Return loss | > 60 dB |
| Splicing time | Typical 7 sec with SM |
| Splice loss estimation | Available |
| Sleeve heating time | Typical 13 sec, IS-60 mode with IS-60 sleeves |
| Applicable protection sleeves | 2.32 in (60 mm), 1.57 in (40 mm) and micro sleeves |
| Storage of splice results | Data: Up to 5,000 ea (Image: Up to 5,000 pcs) |
| Tension test (Tensile load) | 1.96 N to 2.25 N |
| Operating conditions | Altitude: 0 mi to 0.31 mi (0 m to 5,000 m) above sea level, Temperature: 14 °F to 122 °F (-10 ℃ to 50 ℃), Humidity: 0 to 95 %, Wind: 15m/s, non-condensing, dust proof, waterproof, shock proof |
| Storage conditions | Temperature: – 40 °F to 176 °F (-40 ℃ to 80 ℃), Humidity: 0~95% |
| Viewing method and display | 2 AXIS Two CMOS cameras with 4.3-inch colour LCD monitor |
| Fiber view and magnification | X/Y: 110 X, Max :220X |
| Power supply | Li-ion Battery (DC 14.8 V, 3400 mAh), 100 V to 240 V AC Charger |
| No. of splice/heating per battery full charge | Typical 200 cycles |
| Electrode lifetime | 21,000 splices |
| Blade lifetime* | 75,000 fibres |
| Terminal | USB |
| Dimensions | 5.19 in x 8.34 in x 2.87 in (132 mm (W) x 212 mm (L) x 73(H)mm) (Without rubber protector) |
| Weight | 3.30 lb (1.5 kg) (Including battery) |
