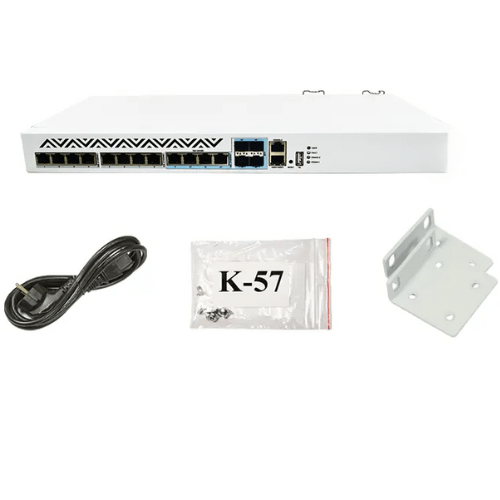

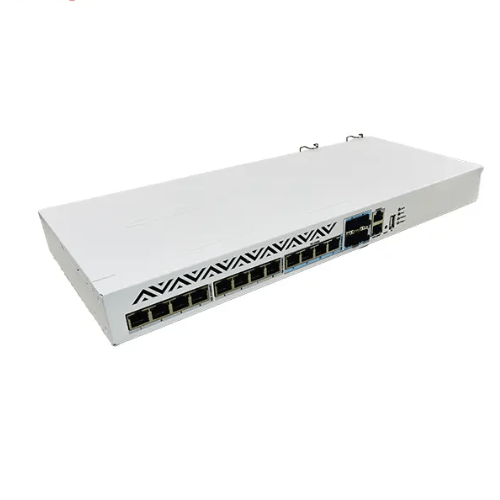

Amuse Tech Solutions Router-Enabled Compact Ethernet Switch
Amuse Tech Solutions router-enabled compact ethernet switch has 4 x 10 G combo ports: use them for 10 G RJ 45 Ethernet or 10 G SFP+, when you need an additional fiber connection.
Description
Overview
Amuse Tech Solutions router-enabled compact ethernet switch has 4 x 10 G combo ports: use them for 10 G RJ 45 Ethernet or 10 G SFP+, when you need an additional fiber connection. Combo ports can be always used alongside the 8 regular 10G RJ45 Ethernet ports. These ports can also be software selected, so you can use Routers scripting to decide which combo ports will be active.
Features
- 10G RJ45 Ethernet ports and SFP
- Dual power supply ensures redundancy and prevents unexpected downtime
- Includes full size USB, console port, and 1 U rackmount case
- Non-blocking throughput of 120 Gbps, switching capacity of 240 Gbps
- Forwarding rate of 178 Mbps for efficient data transfer
Technical Specifications
| CPU | QCA9531, 650 MHz |
| Size of RAM | 64 MB |
| Storage | 16 MB flash |
| 10 / 100 Ethernet ports | 1 |
| 1G / 2.5G / 5G / 10G RJ45 Ethernet ports | 8 |
| Combo 10G Ethernet / SFP ports | 4 |
| Supported input voltage | power supply 100 V AC to 240 V AC |
| Redundant supply | Yes |
| USB port | USB type A |
| Serial port | RJ45 |
| Operating temperature | -22 °F to 158 °F (-30 °C to 70 °C) |
| Operating system | RouterOS or SwitchOS, License level 5 |
| Max power consumption | 60 W |
| Dimensions | 17.44 in x 7.20 in x 1.73 in (443 mm x 183 mm x 44 mm) |
