Amuse Tech Solutions RFID Tags Printing Program Reusable UHF RFID Label Sticker For Car – Frequency Of 902 MHz To 928 MHz

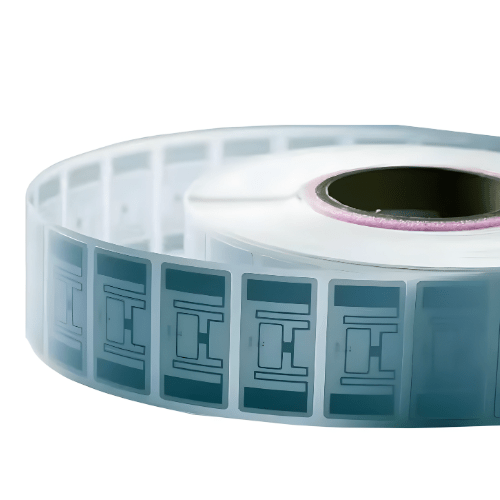

RFID dry inlay with ISO/IEC 18000-6C (EPC Gen2) standard, Impinj Monza 6R chip, 860 MHz to 960 MHz frequency, 36.1 ft (11 m) read range.
Description
Overview
RFID dry inlay with ISO/IEC 18000-6C (EPC Gen2) standard, Impinj Monza 6R chip, 860 MHz to 960 MHz frequency, 36.1 ft (11 m) read range.
Technical Specifications
| Special Features | Dry Inlay |
| Communication Interface | RFID |
| Frequency | 860 MHz to 960 MHz |
| RFID Standard | ISO/IEC 18000-6C (EPC Gen2) |
| Chip Type | Impinj Monza 6R or Customize |
| Read Range | 36.1 ft (11 m) |
| Data Storage | > 10 years |
| Re-write | 100000 times |
| Customization | Printing LOGO, Barcode, Serial number, Encoding, Designing etc |
| Label Material | Coated Paper or PET or Fragile Paper |
| EPC Memory | 496 bits or 128 bits |
| User Memory | 128 bits or 512 bits |
| Working Temperature | -40 °F to 185 °F (-40 ℃ to 85 ℃) |
| Storage Temperature | -40 °F to 185 °F (-40 ℃ to 85 ℃) |
| Antenna Size | 1.97 in x 1.18 in (50 mm x 30 mm) |
| Wet Inlay or Label Size | 2.12 in x 1.34 in (54 mm x 34 mm) |
