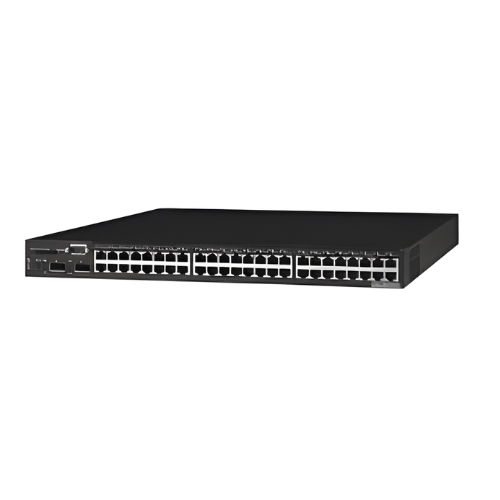

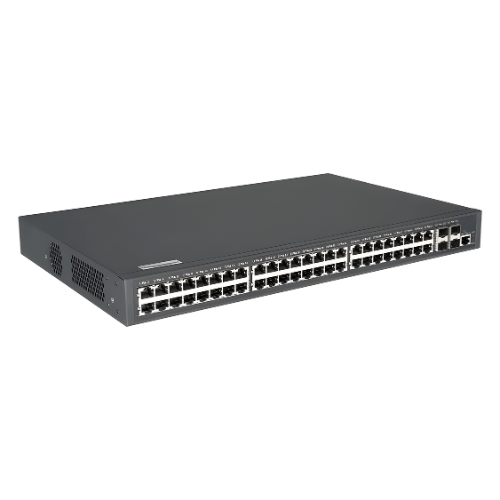

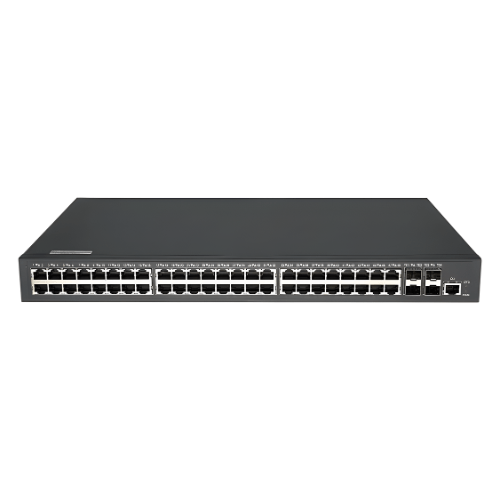

Amuse Tech Solutions Port Network Ethernet Switch
Amuse Tech Solutions port network ethernet switch with 100 or 1000M port network PoE Ethernet switch is a next-generation aggregation 10GE switch, 162 Mpps forwarding rate and 216 Gbps backplane.
Description
Overview
Amuse Tech Solutions port network ethernet switch with 100 or 1000M port network PoE Ethernet switch is a next-generation aggregation 10GE switch, 162 Mpps forwarding rate and 216 Gbps backplane.
Technical Specifications
|
Conventional |
Interface | 48 GE TX ports, 4 10GE SFP+ ports，1 Console port |
| Console | 1 RJ45 port | |
| Backplane | 216 Gbps | |
| Forwarding rate | 162 Mpps | |
| Model | 1U | |
| Installation | 19 inch rack-mounted installation | |
| LED indicator | Operation indicator light, interface indicator light, power indicator light | |
|
Power |
no-load | <25 W |
| full-load | < 48 W | |
| Power supply AC | AC: 100 to 240 V | |
| Power supply AC | DC: 36 to 72 V | |
| Total output BTU (1000BTU/H=293W) | 163.82 | |
|
Layer Switching Characteristics |
VLAN | 4K Active VLAN or QinQ & Selective QinQ or GVRP, Private VLAN / Voice VLAN |
| Reliability | Static or LACP link aggregation or Interface backup or EAPS and ERPS or ISSU uninterrupted system upgrade or JTVSS, ups to 16-units per stack or VRR or UDLD | |
| MAC address table | 16 K | |
| IP | Static route, RIP, OSPF IPv4 or v6 dual stack | |
| Management | Console, Telnet, SSH v1 or 2, HTTP, HTTPS, SNMP v1 or v2 or v3, RMO or TFTP, FTP, SFTP · NTP · ZTP (Zero Touch Provisioning) or SPAN, RSPAN |
|
| Jumbo frame | 9 K | |
| Watchdog function | support | |
| Port trunking | support | |
|
Security |
Forwarding mode | Store-forward |
| Flash (MB) | 16 | |
| DRAM (MB) | 512 | |
| MAC | 16 K | |
| Buffer size(Mb) | 1.5 | |
|
Environmental Conditions |
Working temperature | 32 F to 122 F (0℃ -50℃) |
| Storage/Transportation Temperature | 68 F to 158 F (20℃ to 70℃) | |
| Relative humidity | 5% to 95% | |
| Fan number | 2 | |
| MTBF(H) | > 200,000 | |
| Mechanical Structure | Dimensions Jumbo frame Weight about |
17.32 in X 11. 02 X 1.73 in (440 x 280 x 44mm) 9 K 12.13 lb (5.5 kg) |
