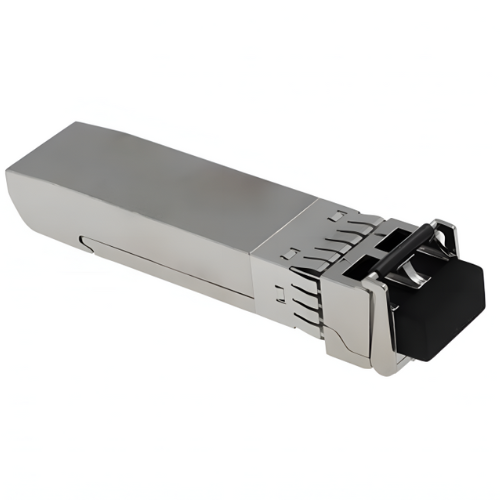

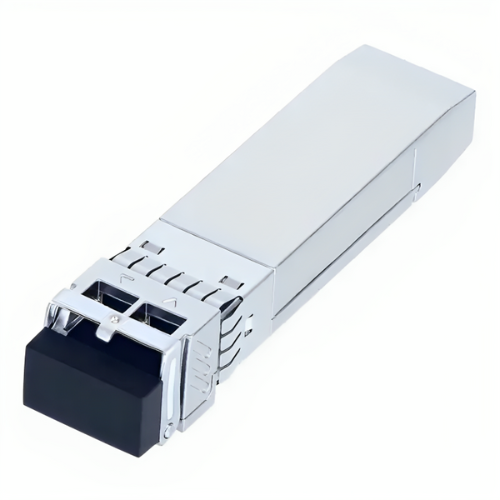

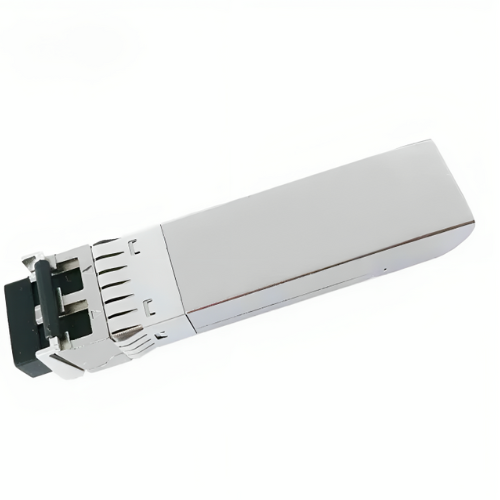

Amuse Tech Solutions Optical Transceiver

Description

Overview

Amuse Tech Solutions optical Transceiver has integrated fibre optic transceiver that provides a high-speed serial link at signalling rates from 9.95 Gb/s to 11.3 Gb/s. The module complies with optical Transceiver. It complies with the ITU-TG.698.1 standard with 50 GHz channel spacing for SONET or SDH, IEEE, optical Transceiver for 49.71 mi (80 km) reach (Ethernet), and optical Transceiver for 49.71 mi (80 km) reach (Fiber Channel) applications. The transceiver contains a C-band-tuneable integrated Mach-Zehnder (MZ) laser, enabling data transmission over single-mode fibre through an industry-standard LC connector. On the receiver side, the 10 Gbps data stream is recovered from an APD per trans-impedance amplifier and passed to an output driver. This module features a hot-pluggable electrical interface.



Features

• Supports 9.95Gb/s to 11.3Gb/s bit rates
• Monolithically integrated C-band tuneable transmitter, APD receiver
• 50 GHz ITU channel spacing, integrated wavelength locker
• Up to 49.71 mi (80 km) SMF transmission
• Compliant with SFP+ MSA, duplex LC receptacle
• Compliant with SFF – 8472 and SFF – 8690
• RoHS compatible, single + 3.3 V power supply
• Real Time Digital Diagnostic Monitoring
• Operating case temperature: 20 °F to 158 °F (-5 °C to +70 °C)



Technical Specifications

Data Rate	10 G/ps
Wavelength	Tuneable DWDM
Cable Type	SMF
Max Distance	49 .71 mi (80 km)
Optical Components	C-band tuneable transmitter + APD
Transmitter Power	-1 dBm to 3 dBm
Extinction Ratio	> 8.2 dB
Receiver Sensitivity	< -23 dBm
Receiver Overload	> -7 dBm
Connector	Double LC
Digital Diagnostic Monitoring	Yes
Operating Environment	32 °F to 158 °F (0 °C to 70 °C)
Weight	0.33 lb (150 g)
