Amuse Tech Solutions Optical OTDR Loss Ethernet Tester

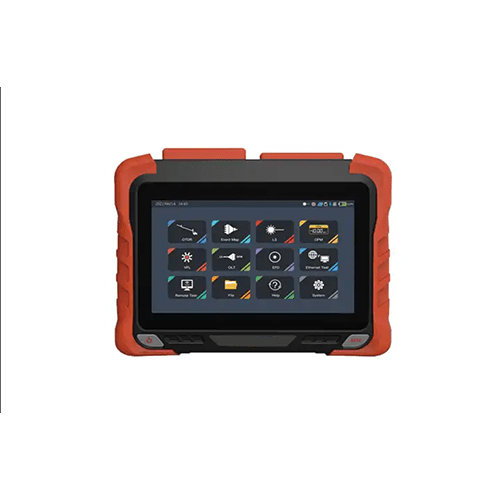

Amuse Tech Solutions optical OTDR ethernet tester 7 in (17.7 cm) capacitance touch screen, which integrates 9 modules.
Description
Overview
Amuse Tech Solutions optical OTDR ethernet tester 7 in (17.7 cm) capacitance touch screen, which integrates 9 modules. With excellent intelligent hardware and software design. It is equipment with rich Ethernet test (ping or PPOE, etc.).it is used in engineering contraction, link maintenance test. They are mainly used in urban trunk, bone trunk network and metropolitan area network.Â
Â
Features
- 19.68 in (0.5 m) event dead zone Â
- Online detectionÂ
- Support fast charging protocol and power bankÂ
- Ethernet test, supporting Ethernet remote test Â
- Support SM or MM or SM+MM test Â
- PON network Online test Â
- Maximum dynamic range 45 dBÂ
- Mobile APP wireless operation Â
Â
Technical Specification
| Wavelength | 1310 nm or 1550 nm |
| Sample Resolution | 0.049 ft or 52.49 ft (0.015 m or 16 m)Â |
| Loss Analysis | 4-point method or 5-point method |
| Connector | FC or UPCÂ |
| File Format | SOR Standard File Format |
| Reflection Accuracy | ±2 dB |
| Data Storage | Internal storage 2 GBÂ |
| File Format | SOR Standard file format  |
| Display | 7 in (17.78 cm) LCD touch screen |
| Size | 0.82 in × 2.36 in × 1.96 in (21 mm × 60 mm × 50 mm) |
| Weight | Â 2.64 lb (1.2 kg)Â Â Â |
