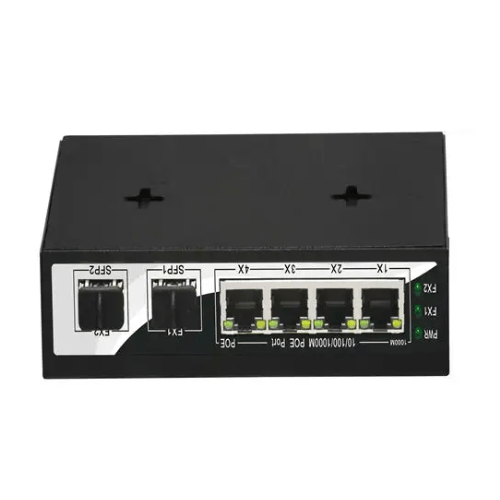

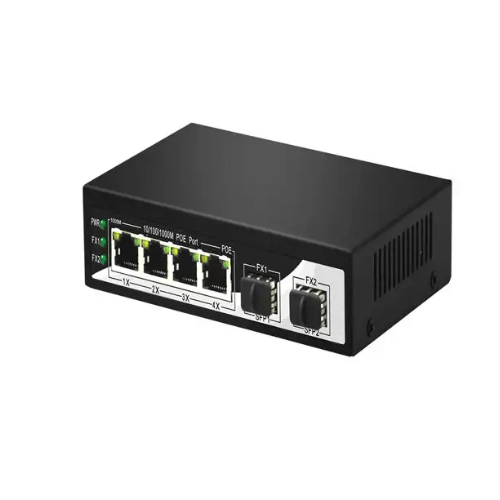

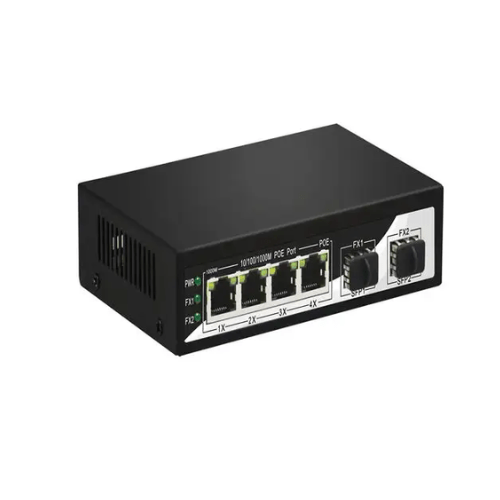

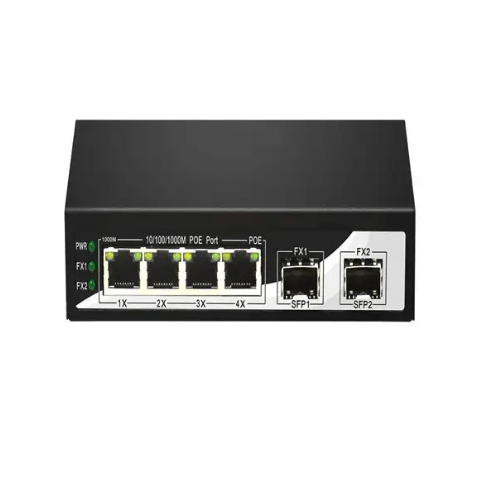

Amuse Tech Solutions Optical Network Gigabit POE Switch
Amuse Tech Solutions optical network gigabit POE switch has two Gigabit uplink ports that provide fast connection to servers or the backplane of the gigabit speed.
Description
Overview
Amuse Tech Solutions optical network gigabit POE switch has two Gigabit uplink ports that provide fast connection to servers or the backplane of the gigabit speed. The effective connectivity of the four 10 / 100 / 1000 Mbps ports allows growing business networks, classrooms, and workgroups to obtain benefits from the demand for superior performance and sustain network expansion. This high-performance switch features non-blocking, wire-speed switching, and 8.8 Gbps switching capacity. All RJ 45 ports can auto adjust the highest connection speed for a normal working.
Features
- Powers Ethernet APs and surveillance cameras
- Ports 1 to 4 compatible with IEEE 802.3 af
- Features 4 x auto-adjustment RJ 45 ports
- Complies with multiple IEEE standards
- Full/half duplex with respective flow control
- Auto-flip ports with lightning-proof function
- Maximum POE Power is 65 W
- Store-and-forward architecture, 192K forwarding memory
- Wall-mounted design for easy installation
- Auto-adjustment, plug and play device
Technical Specifications
| Connector Type | 4 x 10 / 100 / 1000 M copper cable RJ45 ports (4 PoE ports + 2 Uplink SFP port) |
| Network Media | 10 BASE-T: Cat 3, 4, 5 UTP (≤3937 in (100 meter))100 BASE-TX: Cat 5 or more UTP (≤3937 in (100 meter))
1000 BASE-T: Cat 6 or more (≤3937 in (100 meter)) |
| Bandwidth | 10 Gbps (non-blocking) |
| Address Database Size | 1 K |
| MTBF | 190,000 hrs (about 21 years) |
| Forwarding Mode | Store-And-Forward |
| Network Protocols | IEEE 802.3 i 10BASETIEEE 802.3 u 100BASE TX
IEEE 802.3 x Flow Control IEEE 802.1 af DTE Power via MDI IEEE 802.3 af |
| LED Display | System: power supplyEvery Port: connecting, PoE working status |
| Power Supply | Power input: 100 V AC to 240 V AC 50 Hz / 60 Hz(every country uses a custom power plug) |
| PoE Ports | Port 1 to 4 support POE |
| PoE Port Power | 15.4 W for each POE port |
| PoE Standard | IEEE 802.3 af |
| PoE Feature | All ports support MDI / MDIX |
| Radiation | CE mark, commercialFCC Part 15 Class B
VCCI Class B EN 55022 (CISPR 22), Class B |
| Transmission Distance | Depend on SFP module |
| Working Environment | Operating Temperature: – 4 °F to 131 °F (- 20 °C to 55 °C)Storage Temperature: – 40 °F to 185 °F (- 40 °C to 85 °C)
Operating Humidity: 10% to 95%, non-condensing |
