Amuse Tech Solutions Optic Extender

Description

Overview

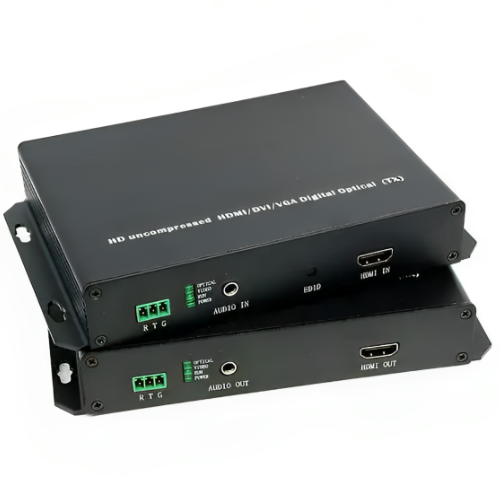

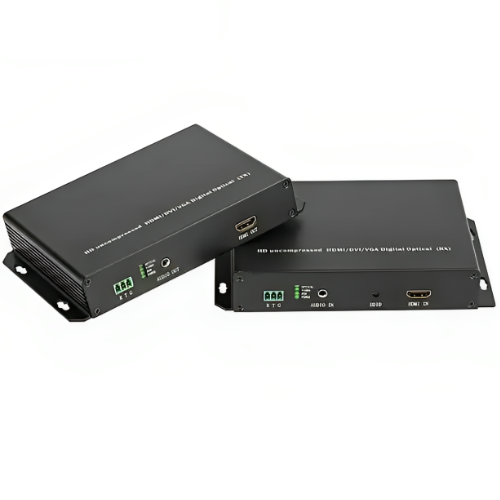

Amuse Tech Solutions optic extender has uncompressed digital HD video and high-speed digital optical fibre transmission technology advanced, it can transfer signal source (computer signal source, HD video signal source, HDMI HD signals output from HD DVD or DVR) to long distance terminal easily, up to 6.21 mi (10 KM), with strong anti-interference performance, ensure the signal completed and stable.



Features

• Fully digital, uncompressed HD fibre transmission
• Video resolution up to 1920 x 1080 @ 60 Hz
• Low optical module SFP attenuation (-3 dB)
• 1 channel analogy audio 0.13 in (3.5 mm)
• HDMI 1.3b protocol support
• Automatic display mode identification and configuration
• Built-in automatic balance for clear and stable pictures
• Easy installation, plug-and-play; customization and OEM support



Technical Specifications

Transmitter-Input	HDMI 1.3×1 RS 232 x 1 Audiox1

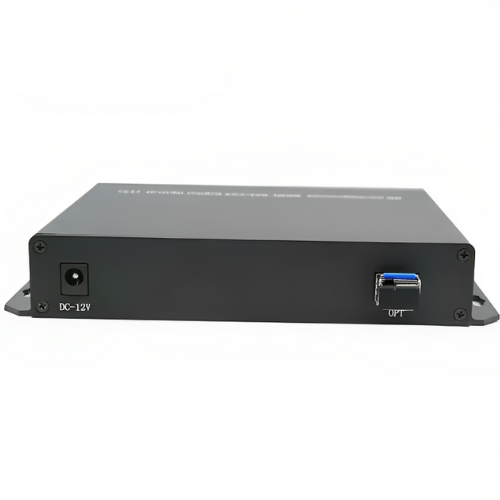

Transmitter-Output	LCx1
Receiver-Input	LCx1
Receiver-Output	HDMI 1.3 x1 RS 232×1 Audiox1
Resolution	1920 x 1200 P 60 or 1920 x 1080I 60 or 1920 x 1080I 50 1920 x 1080 P 60 or 1920 x 1080 P 50 or 1920 x 1080 P 30 1920 x 1080 P 25 or 1920 x 1080 P 24 or 1280 x 720 P 60 1280 x 720 P 50 or 1680 x 1050 P 60 or 1600 x 1200 P 60 1600 x 900 P 60 or 1440 x 900 P 60 or 1400 x 1050 P 60 1366 x 768 P 60 or 1360 x 768 P 60 or 1280 x 1024 P 60 1280 x 800 P 60 or 1024 x 768 P 60 or 800 x 600 P 60

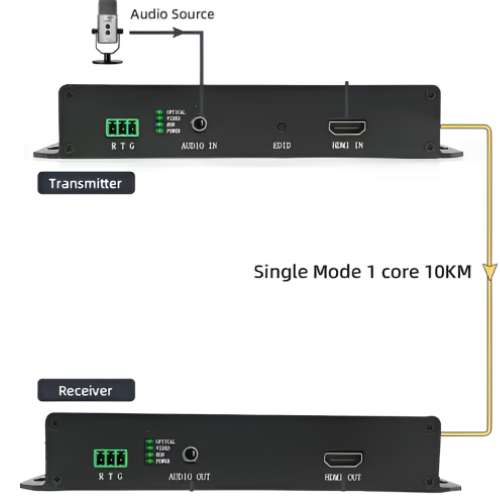

Transmission distance	Single-mode fiber:6.21 mi (10 KM) (standard), 12.42 mi (20 KM), 24.84 mi (40 KM), 37.26 mi (60 KM). Multi-mode fibre: 0.186 mi (300 m)
Cable	Single-mode 1-core fibre
Operating temperature	-4 °F to 158 °F (-20 ℃ to +70 ℃)
Environment humidity	< 90 %, No condensation
Power	DC 12 V or 1 A
Size	6.88 in x 4.52 in x 1.18 in (175 mm× 115 mm× 30 mm)
Weight	Transmitter:0.88 lb (400 g). Receiver: 0.88 lb (400 g)
