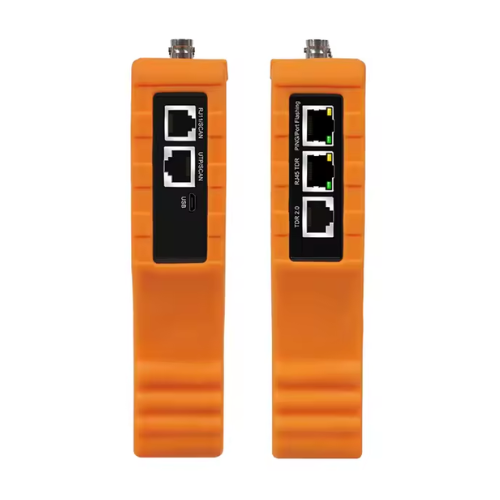

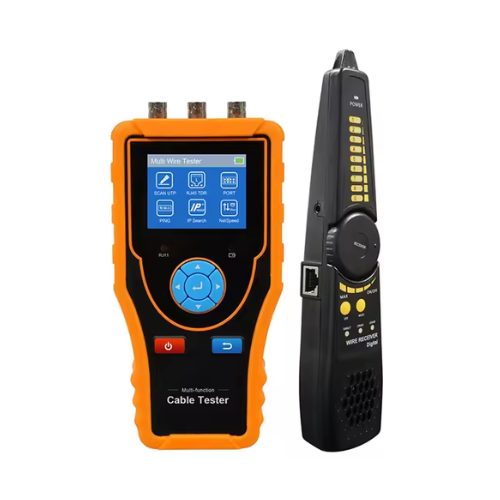

Amuse Tech Solutions Network Cable Tester Wire Tracer
This Amuse Tech Solutions Network Cable Tester Wire Tracer has display 2.4 in TFTLCD screen320 x 240 resolution and RJ45 RJ11 TDR Coaxial BNC UTP cable test.
Description
Meta Description
This Amuse Tech Solutions Network Cable Tester Wire Tracer has display 2.4 in TFTLCD screen320 x 240 resolution and RJ45 RJ11 TDR Coaxial BNC UTP cable test.
Features
- 4 in TFTLCD screen 320 x 240 resolution
- Cable tracer can search UTP cable BNC cable from mess cable
- Port Flash PING testIP address Scan Link Monitor
- TDR Opens and short circuit testthe Max
- RJ45 cable TDR test cable quality test
- UTP cable test and test cable’s sequencetype and remote kit
- Can detect TVI CVI AHD CVBS video signal peak valueSYNV value
Technical Specifications
| Display | 2.4 inTFTLCD screen320x240 resolution |
| Cable Type | RJ45 Twisted pair RJ11 telephone line BNC cable etc |
| Link Monitor | Quickly identify the connected network port 32.8084 ft x x 328.084 ft x 3280.84 ft (10 or 100 or 1000 m) and duplex mode (full duplex or half duplex) |
| External Power Supply | DC 5V or 1A |
| Battery | Builtin 3.7V Lithium Ion battery 1800mAh The cable Receiver battery two AA batteries |
| Rechargeable | After charging 3 hours normal working time 16 hours |
| Auto Off | 1 to 30 (mins) |
| Working Temperature | 14°F to 122°F( -10℃ to 50℃) |
| Working Humidity | 30% to 90% |
| Dimension | 4.96 in x 3.27 in x 1.30 in(126mm x 83mm x 33mm) |
| Weight | 0.70 lbs(0.32 kg) |
