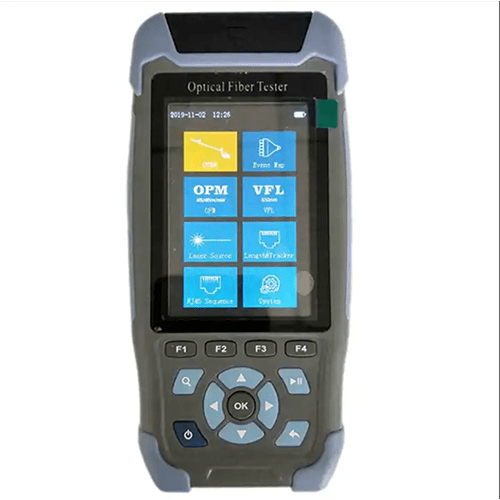

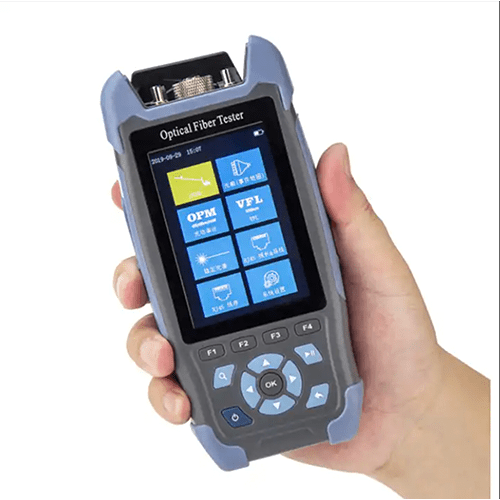

Amuse Tech Solutions Multifunctional Optical Tester
Amuse Tech Solutions optical fiber tester mini OTDR is a unique mainly designed for construction and maintenance of telecommunication and CATV networks.
Description
Overview
Amuse Tech Solutions optical fiber tester mini OTDR is a unique mainly designed for construction and maintenance of telecommunication and CATV networks, can be widely used in engineering construction, maintenance test and emergency repair of all fiber optics related systems. Compared with a regular OTDR, it is more compact in size and easier for field use.
Technical Specification
| Wavelength | 1310 nm or 1550 nm |
| Dynamic Range | 2 dB or 22 dB |
| VFL Output Power | 10 mW |
| Optical Power Meter Module | 50 dBm or + 26 dBm |
| Optical Light Source Module | 1310 nm or 1550 nm |
| Testing Data Storage | 600 |
| Battery Capacity | 4000 mAh |
| Pulse Width | 3 ns to 10 us |
| Wave Range | 800 nm or 1700 nm |
| Test Range | -50 dBm to + 26 dBm |
| LD Type | FP to LD |
| Output Power | -5 dBm |
| Output Power | 10 mW |
| Mode | CW or 1 Hz or 2 Hz |

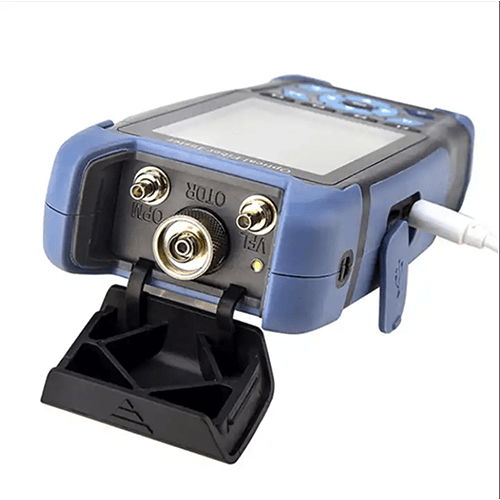

| Connector | FC or SC or ST |
| Test Range | 0.18 mi (300 m) |
| Data Interface | Micro USB |
| External storage | TF Card |
| Power Supply | Polymer Li-Battery :3.7 V, 4000 mAh Adapter:5 VDC, 2 A |
| Battery Life | Standby >20 h |
| Operating Temperature | 14 °F to 122 °F (-10° C to +50° C) |
| Storage Temperature | -40 °F to 158 °F (-40° C to +70° C) |
| Dimensions | 0.18 in × 3.22 in × 1.45 in (173 mm x 82 mm x 37mm) |
| Display | 3.5 in (8.89 cm) Color LCD |
| Size | 6.81 in × 3.22 in × 1.45 in (173 mm × 82 mm × 37 mm) |
| Weight | 0.77 lb (350 g) |
