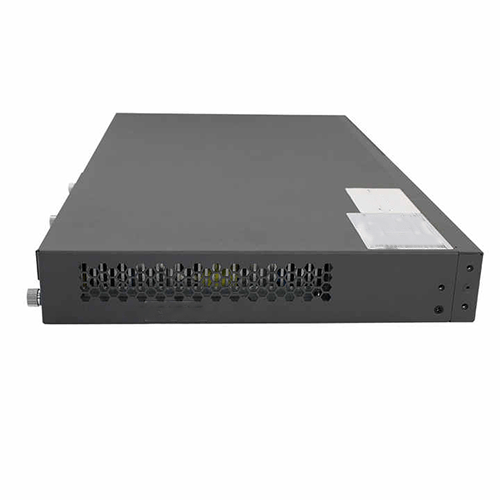

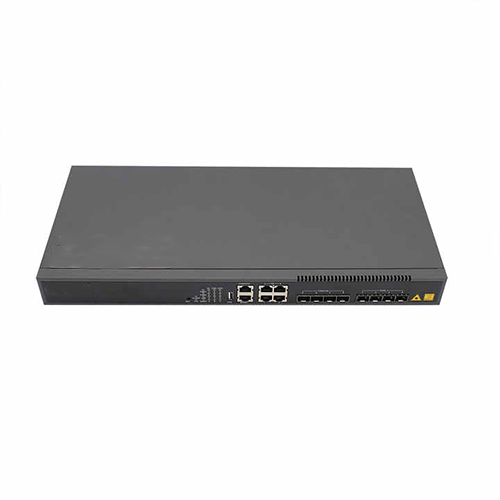

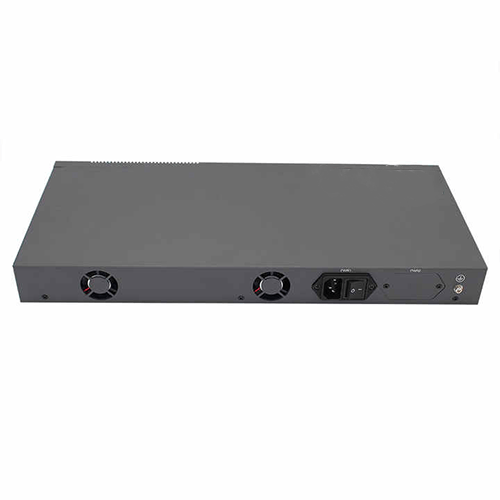

Amuse Tech Solutions Mini Web OLT
This Mini Web OLT has number of ports 4 or 8, transmission rate of 1.25 Gbps, 6 W power consumption and power supply of 12 V DC.
Description
Features
- 4K VLAN support based on port, MAC, and protocol.
- Dual Tag VLAN support with 16K MAC addresses.
- Static MAC address setting and black hole filtering.
- Port MAC address limit, STP or RSTP or MSTP support.
- ERPS Ethernet ring network protection and loopback detection.
- Two-way bandwidth control and port storm suppression.
- 9K Jumbo frame forwarding and static link aggregation.
- Dynamic LACP with 8 ports per aggregation group.
- Port mirroring and stream mirroring support.
- Standard and extended ACL with time-based policies.
- Flow classification and definition based on IP header information.
Technical Specifications
| Standards | EPON or GPON OLT |
| Port features | 4 or 8 PON port (1.25 G) 1 10 or 100 or 1000 M port |
| Rate | 1.25 Gbps or 1.25 Gbps T or R 1310 nm or 1490 nm |
| Interface | SC or PC or UPC or SC or APC |
| Distance | 12.43 mi (20 km) |
| Max splitting ratio | 1:128 |
| Power supply | 12 V DC > |
| Power consumption | 6 W |
| Temperature | Working temperature: 32 °F to 131 °F (0 ℃ to 55 ℃) Storage temperature: -22 °F to 140 °F (-30 ℃ to 60 ℃) |
| Relative humidity | 10% to 90% (non-condensing) |
