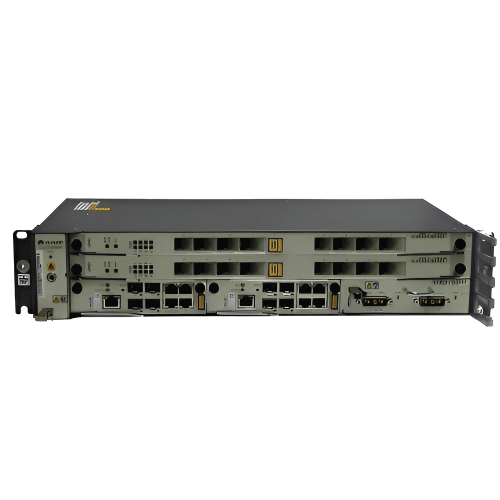

Amuse Tech Solutions Mini Gpon Gepon
Amuse Tech Solutions mini Gpon Gepon has a strong adaptability to the environment and can be deployed quickly.
Description
Overview
Amuse Tech Solutions mini Gpon Gepon has a strong adaptability to the environment and can be deployed quickly. In FTTx networks, the OLT is moved closer to the user side, which can save backbone optical cable resources. This solves the problem of a few users and long access distance.
Technical Specifications
| Operating Environment | Temperature: -13 °F to 131 °F (-25 ℃ to +55 ℃) Humidity: 5% to 95% (non-condensing) Temperature: 40 °F to 149 °F (-40 ℃ to +65 ℃) Humidity: 5% to 95% (non-condensing) |

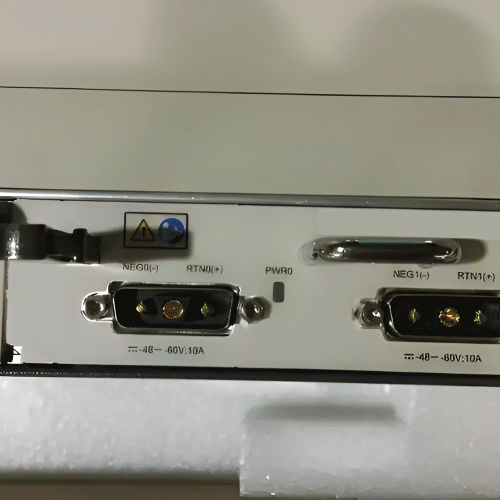

| Power Supply Parameters | -48 V DC input Supports dual power protection Working Voltage range: -38.4 V to –72 V Support 220 V or 110 V AC input |
| Backplane Exchange Capacity | 3.2 Tbit/s 1.5 Tbit/s 720 Gbit/s |
| Control Board Exchange Capacity | 1920 Gbit/s 960 Gbit/s 512 Gbit/s |
| Access Capacity | 12810 G EPON, 6410 G GPON, 128 EPON, 256 GPON, 768 x GE 4810G EPON, 2410G GPON, 48EPON, 96GPON, 288 x GE 1610G EPON, 810G GPON, 16EPON, 32GPON, 96 x GE |

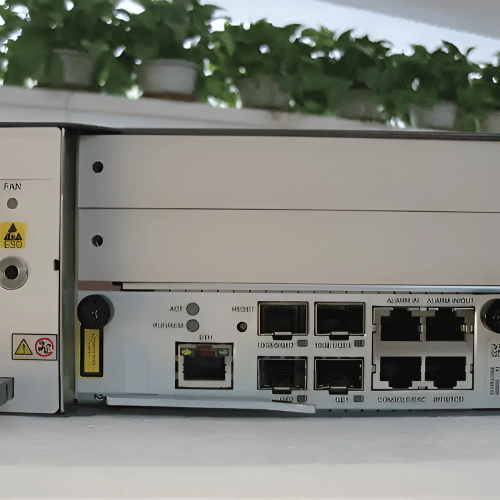

| Access Type | Upstream interface: 10GE optical, GE optical or electricity Business interface: EPON optical port, GPON optical port, 10 G EPON optical port, P2P FE optical port, P2P GE optical port, Ethernet optical interface |
| System Performance | Layer 2 or Layer 3 wire-speed forwarding Support static router or RIP or OSPE.MPLS BITS or E1 or STM-1 or Ethernet or 1588 v 2 or 1 PPS +ToD clock Maximum support 1:256 splitting ratio Maximum support 37.28 mi (60 KM) logical distance |
| Dimension | 19.29 in x 10.58 in x 17.60 in (490 mm x 275.8 mm x 447.2mm) |
