Amuse Tech Solutions Managed Ethernet Fiber Media Converter

Description

Overview

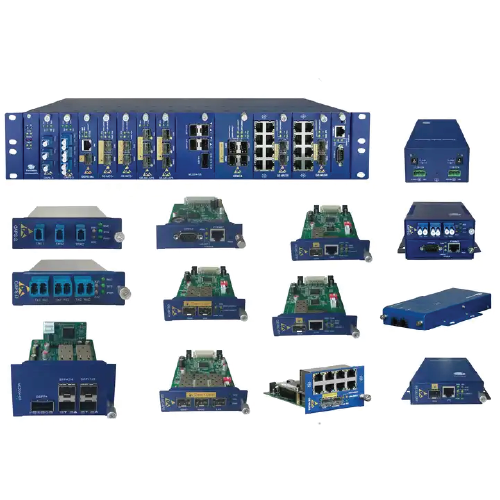

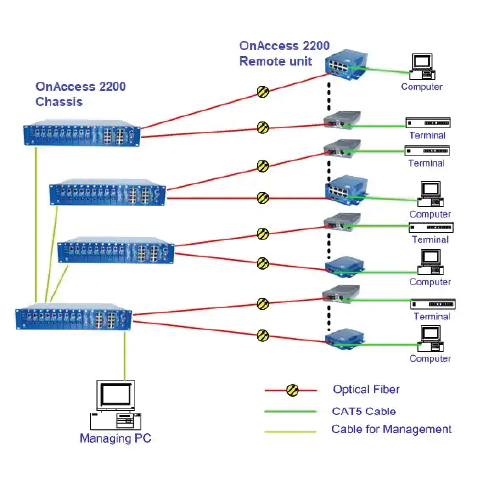

Amuse Tech Solutions managed ethernet fiber media converters are a high performance, cost effective, carrier grade manageable media converter platform. They are intended for applications of the point-to-point fiber-to-the-premises (FTTx) market, or to bridge the gap between legacy copper infrastructures and fiber growth. Available in stand-alone, modular chassis-based, or fixed multiport, they offer copper to fiber and fiber to fiber media conversion or automatic fiber protection switching in the following supported protocols like Ethernet, Fast Ethernet, Gigabit Ethernet, or other media and protocol conversion in the future releases.With industry advanced features such as Auto-Negotiation, Auto-MDI/X, Link Fault Pass-Through (LFP) or Remote Fault Detection (RFD), and Dying Gasp Alarm make more efficient troubleshooting and less on-site maintenance. They provide remote loopback and in-band IEEE 802.3 ah, IEEE 802.1 ag, ITU-T Y.1731 and First Mile proprietary Ethernet packet-based OAM capabilities to manage subscriber access network from carrier center side to terminal side, while the embedded management software allows administrators easily to configure features, to monitor performance, and to troubleshoot the system using command line interface (CLI), standard Web browser and Simple Network Management Protocol (SNMP) based network management platforms.

Features

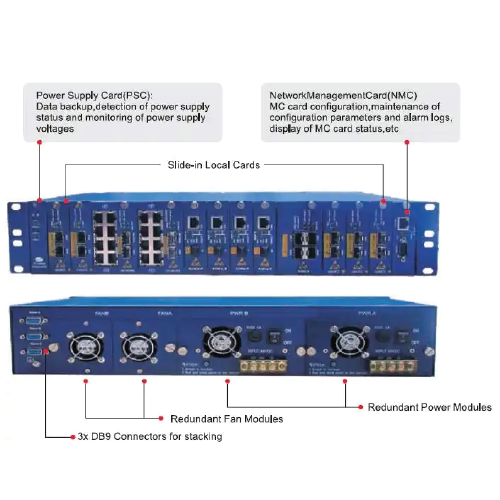

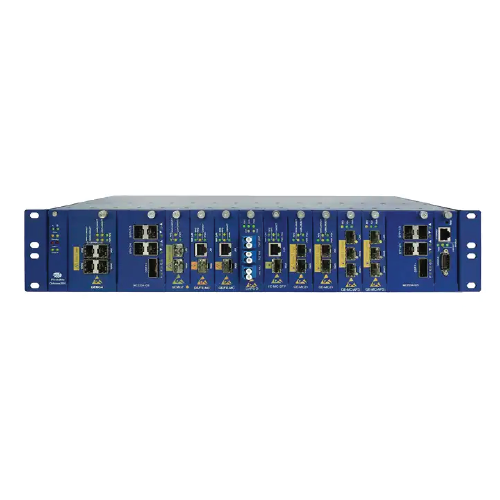

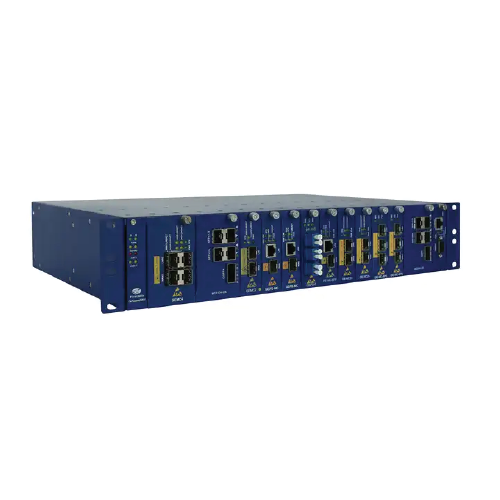

• 2U chassis 15 MC slots and 1 NMC slot
• 2 slot chassis 1 MC slot, 1 NMC slot
• OAM communication per IEEE 802.3ah, IEEE 802.1ag
• ITU-T Y.1731, proprietary Ethernet
• Single fiber to dual fibers conversion
• multi-mode fiber to single mode fiber conversion
• SFP choices 100Base-FX, 1000Base-X, ID, status monitoring
• Non-blocking store-and-forward architecture ensures full wire-speed forwarding
• 3 x flow control for full duplex, back pressure for half duplex
• Egress or Ingress rate management control
• 1 Mbps or 5 Mbps or 50 Mbps granularity
• Fast link switchover 50 ms active
• 10 ms passive fiber protection
• Support Remote Fault Detection (RFD)
• Link fault pass-through (LFP) function
• Remote power on or off detection
• Dying gasp alarm and dual power supplies
• Remote loopback capability for link integrity test

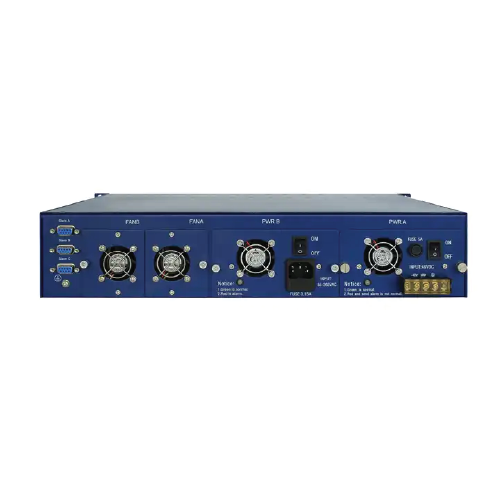

• Dual power chassis, load sharing
• 1+1 auto-switch, voltage alarms
• Dual fan chassis with monitoring and alarm features.
• Standard 19 in rack mounted
