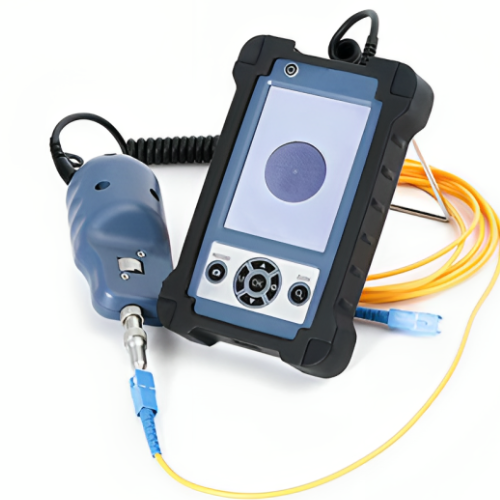

Amuse Tech Solutions Magnifiers Probe Scope
Amuse Tech Solutions magnifiers probe scope has various patch cord and transceivers and display the fibre end face in PC or laptop or OTDR or smartphone etc., digital devices with a USB cable and no driver to install.
Description
Overview

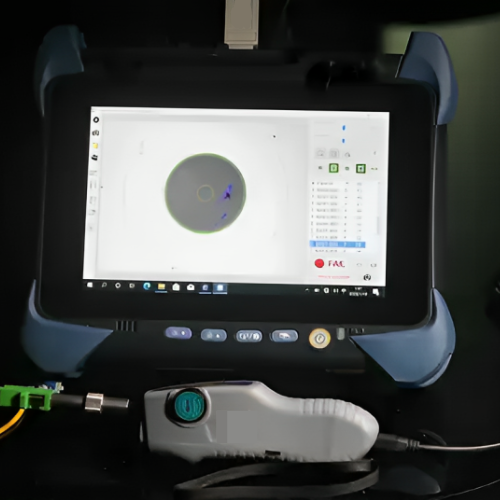

Amuse Tech Solutions magnifiers probe scope has various patch cord and transceivers and display the fibre end face in PC or laptop or OTDR or smartphone etc., digital devices with a USB cable and no driver to install. Fiber images can be saved in mobile device or PC and test results can do the pass or fail optionally in PC or OTDR. It’s super light and handy to take anywhere anytime for the field test, operation inspection, and lab research.
Features
- SC or FC or LC or ST or MU or MT inspection
- 400 X or 200 X magnification, < 1 µm resolution; quick image capture
- Barcode scan for fibre label and data record support
- Customized or lengthened or angled tips for various connectors
- Windows or Android or iOS system redevelopment support
Technical Specifications
| Magnification  | 400 X or 200 X |
| Connector  | Micro USB  |
| Definition | <1 μm |
| Connectivity | USB 1.0 or 1.1 or 2.0 |
| Light Source | Blue LED  |
| Frequency Band  | 2.4 GHz  |
| OS Compatibility  | Android 4.4 or above Â
IOS 8.1 or above  Windows 7, 8, 10 |
| Diameter  | Φ 50 |
| Voltage  | 5 V  |
| Focus Wheel  | Single way  |
| Power Support  | 3400 mAh Li-ion  |
| Focus Speed  | 1 s to 3 s |
| Working Time  | ≥ 5 h |
| Alignment | >98 % |
| Recharge Time  | ≤ 5 h |
| Output  | USB 1.0 or 2.0 |
| Dimensions  | 7.48 in x 1.96 in x 1.18 in (19 cm x 5 cm x 3 cm) |
| Weight  | 0.38 lb (175g) |
