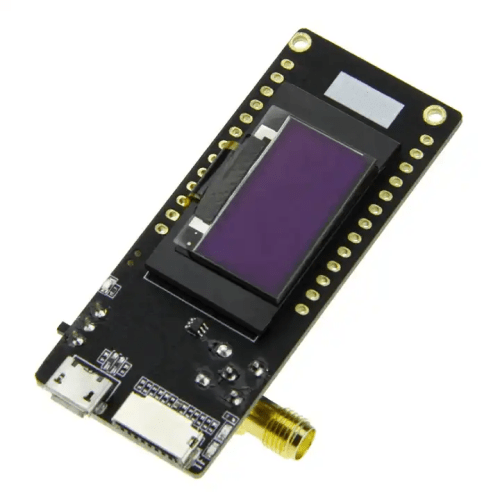

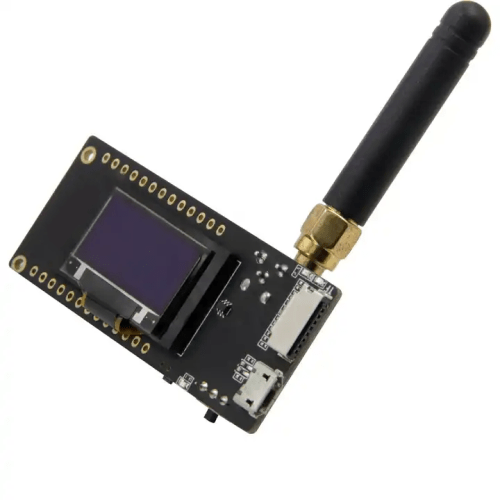

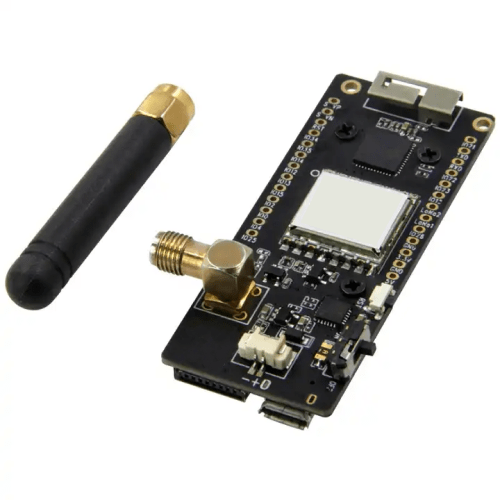

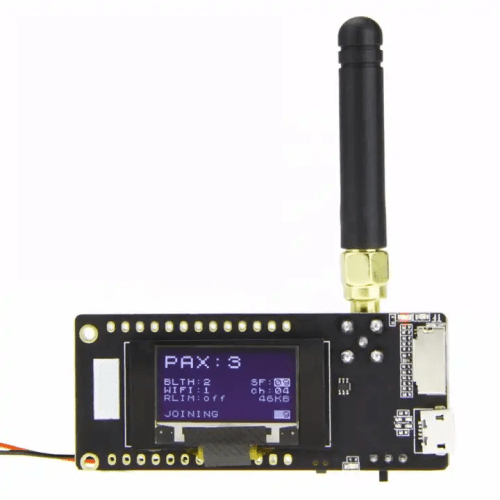

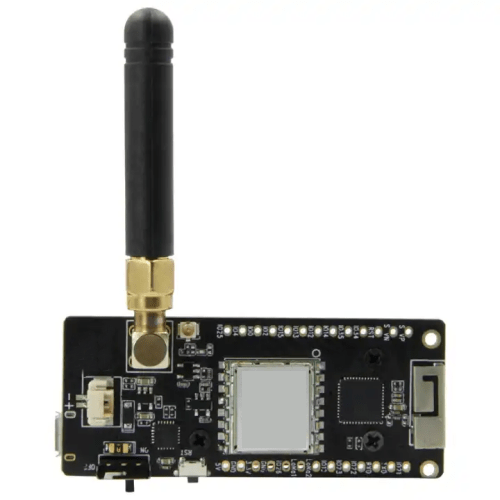

Amuse Tech Solutions LoRa WIFI Module
Amuse Tech Solutions LoRa Wi–Fi module is crucial and must connect to the IPEX interface to prevent potential damage to the LoRa chip.
Description
Overview
Amuse Tech Solutions LoRa Wi-Fi module is crucial and must connect to the IPEX interface to prevent potential damage to the LoRa chip. The device includes a lithium battery charge and discharge circuit with a status indicator LED that stops when the battery is fully charged. When using the IO port for touch screen signal input, it’s essential to add a 100 nF pull-down capacitor to ensure stable signal reception.
Technical Specification
| Working Voltage | 1.8 V to 3.7 V |
| Acceptable Current | 10 mA to 14 mA |
| Transmit Current | 120 mA at +20 dBm, 90 mA at 17 dBm, 29 mA at 13 dBm |
| Operating Frequency | 868 MHz / 915 MHz |
| Transmit Power | 20 dBm |
| Receive Sensitivity | -139 dBm LoRa 62.5 KHz SF=12 146 bps
-136 dBm LoRa 125 KHz SF=12 293 bps -118 dBm LoRa 125 KHz SF=6 9380 bps -123 dBm FSK 5 KHz 1.2 Kbps |
| Frequency Error | + / – 15 KHz |
| FIFO Space | 64 Bytes |
| Data Rate | 1.2 Kbps to 300 Kbps (FSK), 0.018 Kbps to 37.5 Kbps (LoRa) |
| Modulation Mode | FSK, GFSK, MSK, GMSK, LoRa TM, OOK |
| Interface Form | SPI |
| Sleep Current | 0.2 uA (SLEEP), 1.5 uA (IDLE) |
| Operating Temperature | 40 °F to 185 °F (-40 °C to 85 °C) |
| Antenna | SMA Antenna |
