Amuse Tech Solutions LoRa WAN Radio Module

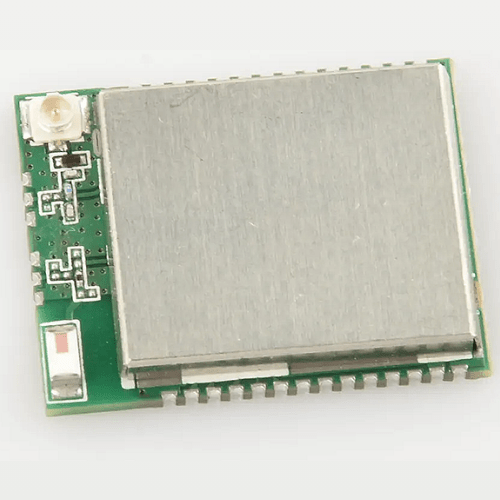

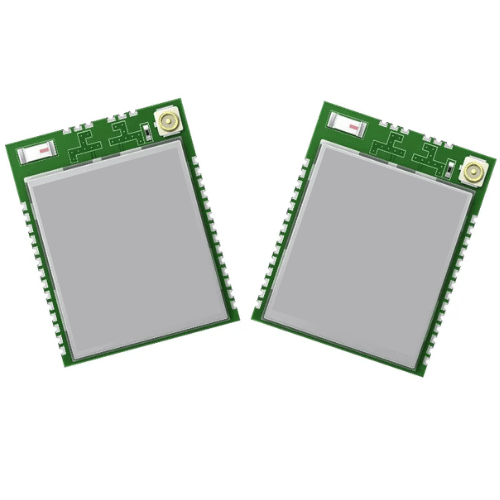

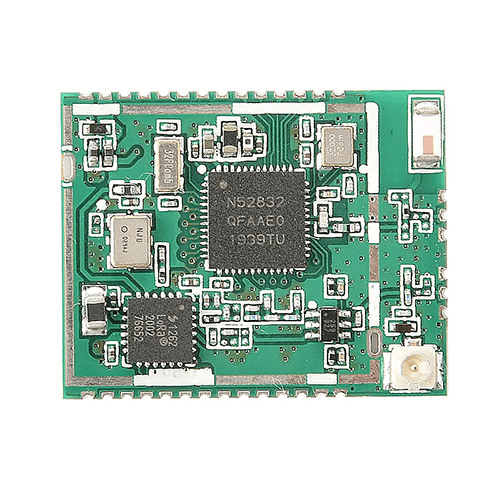

Amuse Tech Solutions LoRa WAN module for industrial controller the module integrates with the world-leading Nordic Semiconductor NRF 52832 (BLE) and Sematic S x 1262 (LoRa) chipsets, providing ultralow power consumption with outstanding wireless range using the LoRa radio link and local BLE connections.
Description
Overview
Amuse Tech Solutions LoRa WAN module for industrial controller the module integrates with the world-leading Nordic Semiconductor NRF 52832 (BLE) and Sematic S x 1262 (LoRa) chipsets, providing ultralow power consumption with outstanding wireless range using the LoRa radio link and local BLE connections. Users can easily access the standard LoRa WAN network through AT commands, making it an excellent choice for IOT applications.
Technical Specifications
| Flash and RAM | 512 KB or 64 KB |
| Power Supply | 3.3 V |
| Deep Sleep | 7 uA |
| BLE TX | 5.3 mA peak at 0 dBm @Vcc = 3.3 V) |
| BLE RX | 5.4 mA peak @Vcc = 3.3 V |
| Antenna | U. FL for external Lora antenna, On board BLE ceramic antenna |
| Long Range | Lora range up to 32808.4 ft (10 km), (in free space 5 dB) |
| Development Kit | Development Kit MKL 62 ST to DT and Free DEMO firmware |
| Temperature | -40 °F to 217 °F (-40 °C to 85 °C) |
| Dimension | 0.94 in x 0.74 in x 0.11 in (24 mm x 19 mm x 2.8 mm) |
