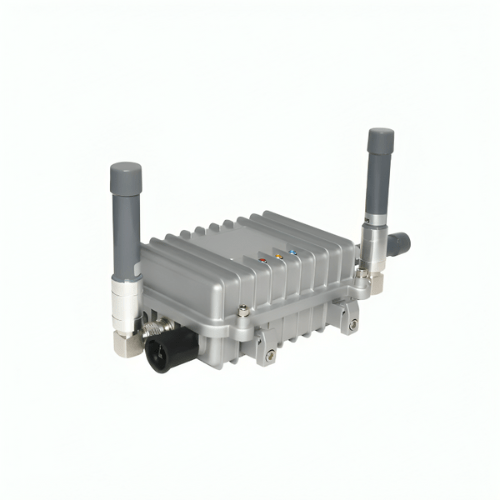

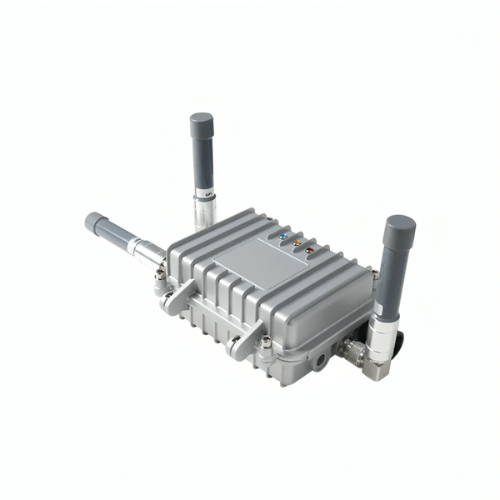

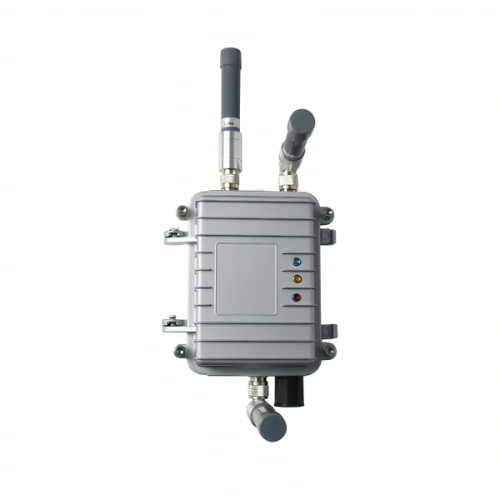

Amuse Tech Solutions LoRa WAN Outdoor Industrial Gateway
Amuse Tech Solutions LoRa wan outdoor industrial gateway acts as the base station of the LoRa WAN network allowing bidirectional communication between end-user nodes.
Description
Overview
Amuse Tech Solutions LoRa wan outdoor industrial gateway acts as the base station of the LoRa WAN network allowing bidirectional communication between end-user nodes. It is a tough and programmable IoT Gateway designed for the IoT Gateway Developer and provides complete protection against dust and water. So it can be safely installed in outdoor or industrial indoor conditions. It also features Wi-Fi 2.4G or 5G, Bluetooth 5.2 and GPS. Furthermore, the smart gateway allows the developers to build the custom firmware from the bottom layer of the hardware with pre-integrated, comprehensive, and fully documented out-of-the-box guidance and support.
Features
- Multiple backhaul connectivities
- Multiprotocol LoRa wan gateway
- High capacity
- Global LoRa wan frequency plans
- Waterproof (IP 66) and robust aluminium enclosure
Technical Specification
| CPU | PX 30 Quad core cortex A35 |
| LoRa Concentrate Engine | Semtech SX 1302 |
| RAM | Up to 2 GB |
| ROM | eMMC up to 128 GB |
| System | Linux |
| Reset button | The reset button inside gateway, after pressing the reset button for more than 5 seconds, the wifi unit will be restored to the factory settings |
| TF card | Up to 128 GB |
| Antenna | Wifi antenna, LTE Antenna, Optional BT, Zigbee, GPS |
| Current | 350 mA @ 5 V |
| Waterproof level | IP 66 |
| Operating temperature | 14 °F to 158 °F (-10 °C to 70 °C) |
| Dimension | 12.8 in x 12.6 in x 5.1 in (326 mm x 320 mm x 130 mm) |
