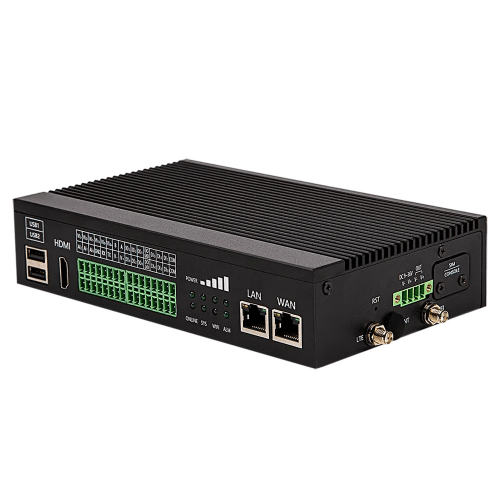

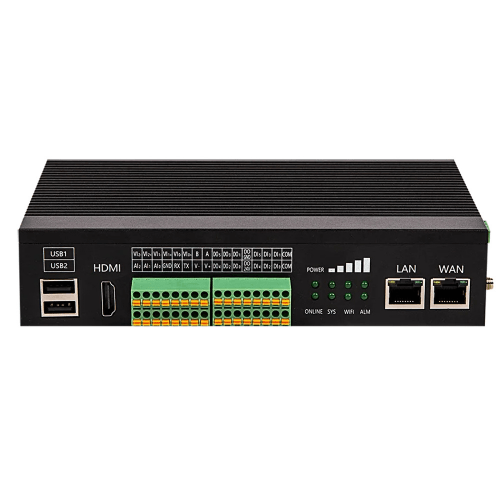

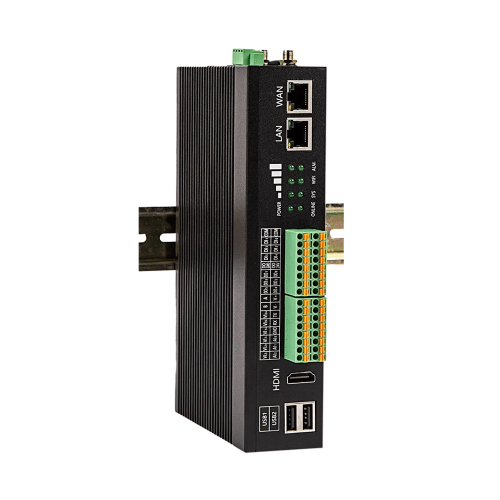

Amuse Tech Solutions LoRa WAN Industrial Gateway with Sim Card
Amuse Tech Solutions LoRa WAN industrial gateway with sim card is an industrial edge computing gateway designed for IoT applications.
Description
Overview
Amuse Tech Solutions LoRa WAN industrial gateway with sim card is an industrial edge computing gateway designed for IoT applications. Powered by Raspberry Pi CM4. Expanded I or O ports for industrial needs, diverse connectivity options, and ture IPC-grade enclosure. These allow it to be perfect for IoT Gateway, data acquisition, Industrial Controller, Edge Computing Applications. It features powerful edge computing capabilities, equipped with RS 232, RS 485, DI, DO, and ADC typical industrial interfaces. It realizes data processing at the network edge in real time for high-performance IoT deployments. significantly reduces the data flow between field sites and data center.
Technical Specifications
| CPU | RPI CM 4, Quad core A 72 (ARM V 8) and 1.5 GHz |
| Memory | 1 GB, 2 GB, 4 GB and 8 GB options LPDDR 4 |
| Flash | 8 GB, 16 GB and 32 GB options EMMC |
| Cellular | 1 x mPCIe for 4G LTE, 3G, 2G, NB-IoT, CAT-M1 cellular modules |
| Ethernet | 2 x Gigabit Ethernet, (1 WAN, 1 LAN or 2 LAN Configurable) |
| Wi Fi | Dual Band 2.4 GHz, 5 GHz + Bluetooth 5.0 |
| GPS | Cellular Module built in supported (Optional) |
| Serial Ports | Isolated RS 232 x 1, RS 485 x 1 |
| USB | USB 2.0 x 2 for peripherals |
| Power Supply | 9 V to 36 V DC, 1 A, recommended 24 V, 1.5 A |
| Enclosure | Full Aluminium, IP 30, DIN rail |
| Operating Temperature | -13 °F to 158 °F (-25 °C to 70 °C), (industrial grade) |
| Dimensions | 7.36 in x 4.40 in x 1.65 in (187 mm x 112 mm x 42 mm) |
| Weight | 1.72 lb (780 g) |
