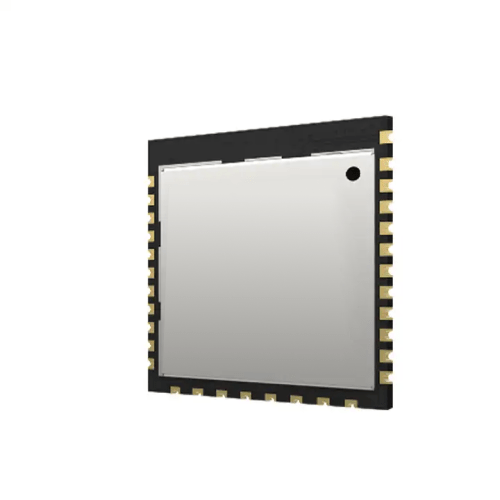

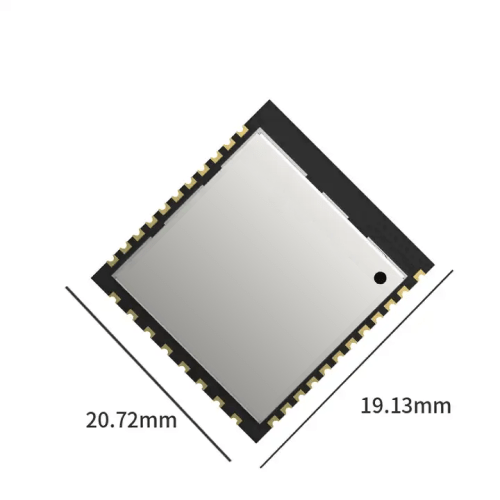

Amuse Tech Solutions LoRa Transceiver Module
Amuse Tech Solutions LoRa Transceiver module is a versatile wireless half-duplex transceiver chip supporting global ISM frequencies.
Description
Overview
Amuse Tech Solutions LoRa Transceiver module is a versatile wireless half-duplex transceiver chip supporting global ISM frequencies. This LoRaWAN transceiver module offers exceptions. Compliant with LoRaWAN standards, it supports both LoRa® P2P (peer-to-peer) communication and the swift establishment of private, long-range LoRa® networks. Ideal for applications in smart metering, automated buildings, agriculture sensors, smart cities, and retail sensor networks.
Features
- Low power consumption
- Ultra-long-range connectivity
- Compatibility with various interfaces
Technical Specification
| Supplier Type | Original Manufacturer |
| Application | Smart home, smart agriculture, smart city, smart healthcare, environment |
| Antenna | None |
| SoC (System on Chip) | STM 32 WLE 5CCU 6 |
| Transmission Range | 1968196850.390.39 in (5) in (5 km) |
| Transmission Power | +20.5 dBm |
| Reception Sensitivity | -146 dBm |
| Emission Current | 120 mA |
| Receiving Current | 4.2 mA |
| GPIO | 24 |
| Characteristic | Internal RAM 64 KB, Flash 256 KB, LoRaWAN protocol 1.0.3, multi-IO interface |
