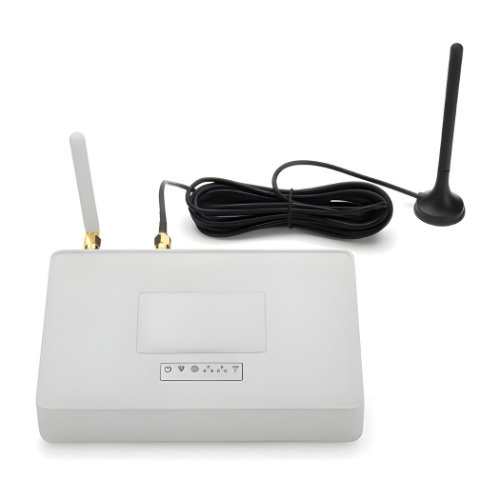

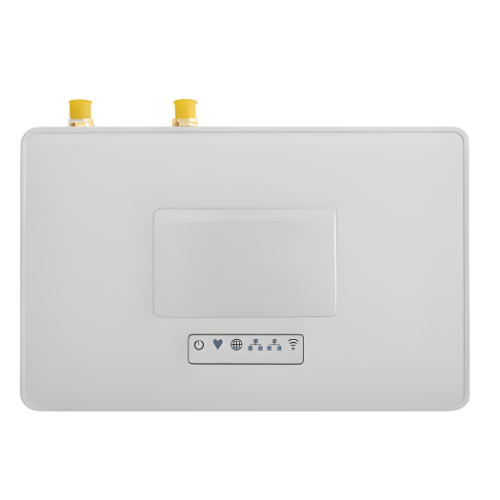

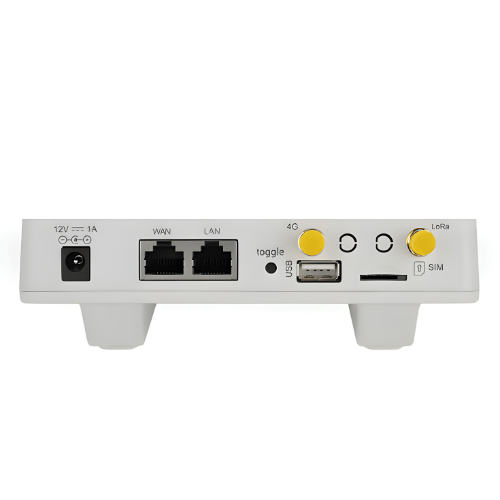

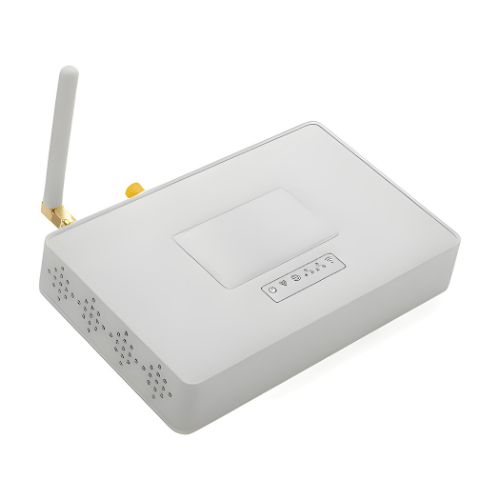

Amuse Tech Solutions LoRa Hardware
Amuse Tech Solutions lora hardware is an open source LoRaWAN Pico Gateway.
Description
Overview
Amuse Tech Solutions lora hardware is an open source LoRaWAN Pico Gateway. It lets you bridge LoRa wireless network to an IP network via Wi-Fi, Ethernet, Or 3G/4G cellular via optional LTE module. The LoRa wireless allows users to send data and reach extremely long ranges at low data-rates. It has an optional built-in LoRaWAN server. System integrators can use it to integrate with their existing IoT Service without setting up their own LoRaWAN server or use 3rd party LoRaWAN service.
Features
- Open Source OpenWrt system
- Management via Web GUI, SSH over LAN or Wi-Fi
- Internet connectivity options through LAN, Wi-Fi, or optional LTE module (3 G / 4 G)
- Emulation of 49x LoRa demodulators
- LoRaWAN Gateway functionality
- 10 programmable parallel demodulation paths
Technical Specification
| LoRa Spec | SX 1302 + 2 SX 1250 |
| RJ45 Ports | 10 M / 100 M 2 R J45 Ports |
| Wi-Fi | 2.4 G Wi-Fi (802.11 bgn) |
| USB Port | USB host port |
| Mini-PCIe Interface | Mini-PCIe Interface |
| Power Input | 12 V, 2 A |
| LTE Module | Quectel EC 25 LTE module |
| Micro SIM Slot | Yes |
| Internal 4G Antenna | Yes |
| External 4G Sticker Antenna | Yes |
| Data Rates | Up to 100 Mbps downlink and 50 Mbps uplink data rates |
| Worldwide Coverage | LTE, UMTS / HSPA+, GSM / GPRS / EDGE |
| MIMO Technology | Yes (for data rate and link reliability) |
| Color | White |
| Weight | 1.32 lb (600 g) |
| Usage | Transfer Data + Power |
