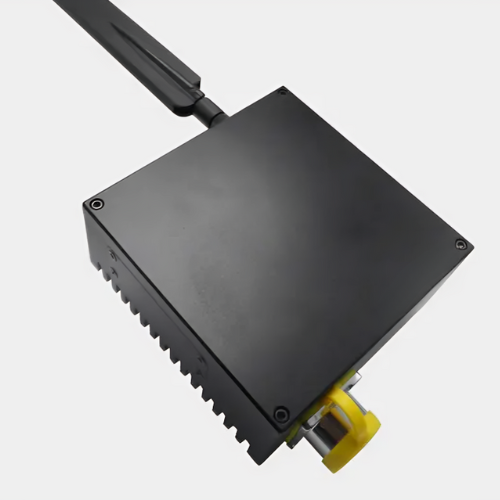

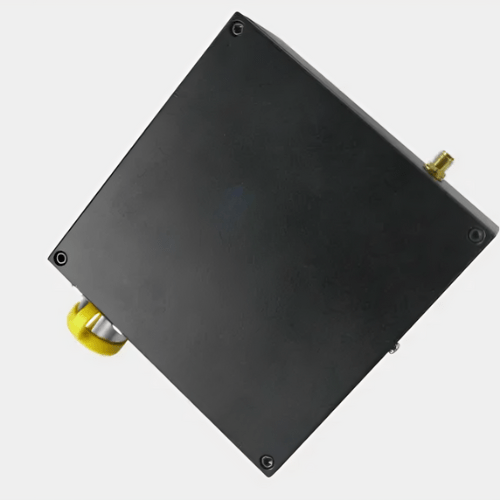

Amuse Tech Solutions LoRa Hardware
Amuse Tech Solutions lora hardware offers a robust solution for various industrial applications.
Description
Overview
Amuse Tech Solutions lora hardware offers a robust solution for various industrial applications. With its advanced features, including IP67 waterproofing, efficient heat dissipation, and support for LoRaWAN protocols, it is designed to excel in challenging environments. This system ensures data reliability and security, making it ideal for outdoor use.
Features
- IP67 Waterproofing
- SX1301 Digital Baseband Chip
- Dynamic Data-rate Adaptation (ADR)
- SPI/USB Interface
- Standard LoRaWAN Protocol
- Integrated Linux Operating System
- Good Openness, Perfect Built-in Network, and Reliable Security System
- 14 Kernel
- Debian Stretch 9.8
- IP65 Waterproofing
- Passed the Water Immersion Test for Half an Hour
- Closed Design to Avoid Dust

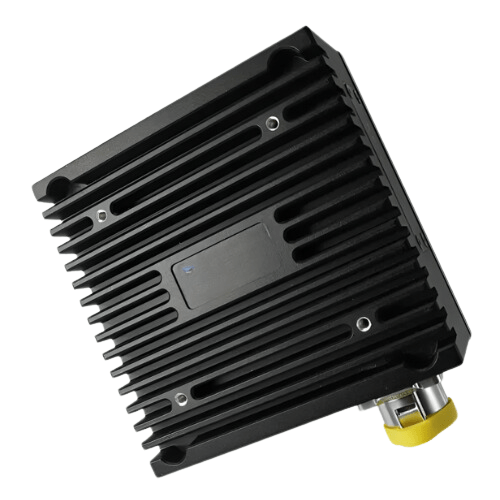

- Efficient Heat Dissipation with Unique Heat Conduction Device
Technical Specification
| Processor | 1 GHz Sitara ARM Cortex A8 32 Bit RISC Processor |
| Memory | 512 MB DDR3, 4G eMMC |
| LoRa Support | Standard LoRaWAN Protocols Class A, Class B, FSK, -139 dBm Sensitivity |
| Demodulators | 49 LoRa demodulators, 1x (G) FSK demodulator, 10 programmable parallel demodulation paths |
| Chips | SX 1257 / SX 1255 Chips Automatic adaptive spread spectrum factor (SF 7 to SF 12) |
| Power Supply | PoE+ AC Power Supply, PoE or 110 / 220 V AC power supply (4G version for LoRa data) |
| Industrial Durability | Designed for outdoor industrial use |
| Ports/Indicators | Micro SIM (4G), Micro TF (for system recovery), REC (system recovery button), LAN (Network status indicator), RX (LoRa Receiving indicator), SPEED (Network signal indicator), TX (LoRa Sending indicator), SYS (system status indicator) |
| Dimension (mm) | 4.92 in x 4.92 in x 2.05 in (125 mm x 125 mm x 52 mm) |
