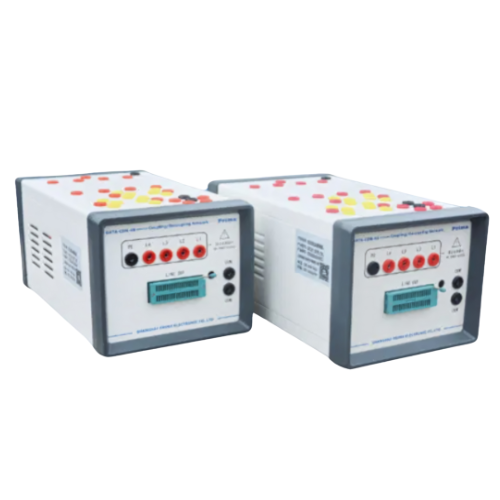

Amuse Tech Solutions Lighting Surge Communication Line
Amuse Tech Solutions lighting surge communication line isData cdn of intelligent lightning surge DATA line coupling or decoupling network is a supporting equipment specially designed for the characteristics and requirements of lightning surge generator to do surge immunity test on data and signal lines.
Description
Overview
Amuse Tech Solutions lighting surge communication line isData cdn of intelligent lightning surge DATA line coupling or decoupling network is a supporting equipment specially designed for the characteristics and requirements of lightning surge generator to do surge immunity test on data and signal lines. It can be used together with lightning surge generator to realize the lightning surge test function of data and signal lines. The network performance fully complies with IEC61000 4 5 and GB or T17626.5 standards. DATA CDN 4A symmetric line coupling decoupling network, DATA CDN 4B asymmetric line coupling decoupling network.
Features
- Capacitance, gas discharge tube coupling
- Four-wire input
- Output maximum passable rate 328.08 ft (100 m)
- Short-circuit current wave is 5 or 320 μs 5 to 150 A
- Manual operation
Technical Specifications
| Coupled Surge Waveform | Open circuit voltage wave 10 or 700 μs 0.2 to 6 kV
Short circuit current wave 5 or 320 μs 5 to 150 A |
| Maximum Coupled Surge Voltage | 7K V |
| Maximum Coupled Surge Current | 3.5 KA |
| Working Power Supply | AC220 V 50 or 60 Hz |
| Environment Temperature | 59 °F to 95 °F (15 °C to 35 °C) |
| Dimensions | 4.72 in x 4.72 in x 0.98 in x 8.66 in (120
‘[ mm x 120 mm x220 mm) |
