Amuse Tech Solutions Light Network Management Ethernet Switch
Amuse Tech Solutions light network management ethernet switch adopts the network chip solution of high quality and high speed.
Description
Overview

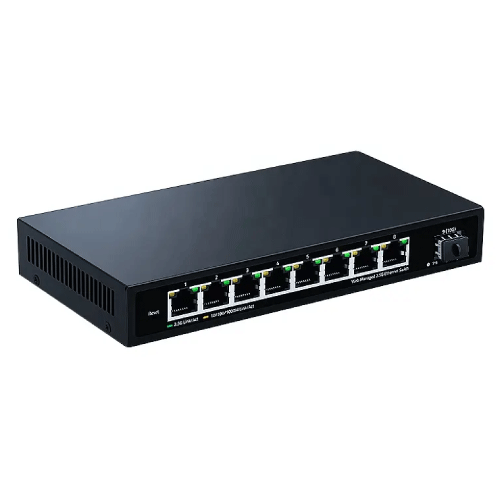

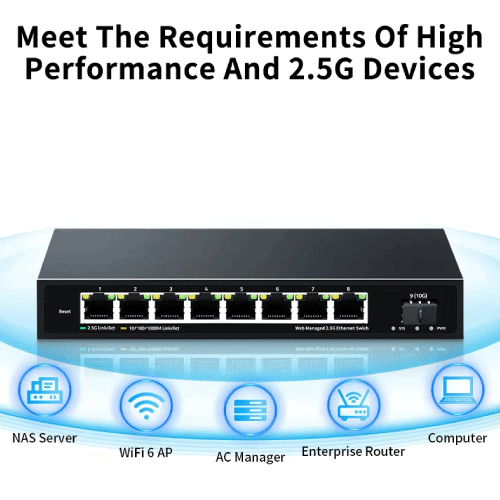

Amuse Tech Solutions light network management ethernet switch adopts the network chip solution of high quality and high speed. The product is designed to be fan-free and quiet, which completely solves the problem of loud noise from small switches deployed in the office environment. The switch has 8 x 100 / 1000 / 2500 M RJ45 ports and 1 x 10 G SFP+ port, providing seamless connection to 100 / 1000 / 2500 M Ethernet for easy management and maintenance. The switch can be widely used in security network video surveillance, hotels, campuses, and network engineering of small and medium-sized enterprises.
Features
- 8 x 2.5 G RJ45 port + 1 x 10 G SFP+ ports
- Ethernet port support 10 / 100 / 1000 M / 2.5 G adaptive
- Supports automatic port rollover (Auto MDI / MDIX)
- Panel indicator lights monitor working status and help failure analysis
- Flow control mode
- Full duplex adopts IEEE802.3x standard
- Half duplex adopts Back pressure standard
Technical Specifications
| Power | DC 2.1 |
| Ethernet | 8 x 100 / 1000 / 2500 M RJ45 ports1 x 10 G SFP+ ports |
| Bandwidth | 60 Gbps |
| Packet forwarding rate | 44.64 Mpps |
| Package cache | 8 Mbit |
| VLAN | 4096 |
| MAC address table | 4K |
| Jumbo frame | 16 Kbytes |
| Forwarding mode | Store and forward |
| MTBF | 100000 Hour |
| Network protocol | IEEE802.3 (Ethernet)IEEE802.3u (Fast Ethernet)IEEE802.3ab (Gigabit Ethernet)IEEE 802.3bz (5G Ethernet)IEEE 802.3z (Gigabit Ethernet)IEEE 802.3ae (10G Ethernet)IEEE802.3x (Flow control) |
| Industry standard | EMI: FCC Part 15 CISPR (EN55032) class AEMS: EN61000-4-2 (ESD), EN61000-4-5(Surge) |
| Network medium | 10 Base-T: Cat3, 4, 5 or above UTP / STP ((≤ 3937.01 in (≤ (100 m))100 Base-TX: Cat5 or higher UTP / STP ((≤ 3937.01 in ≤ (100 m))1000 Base-TX: Cat5 or higher UTP / STP ((≤ 3937.01 in ≤ (100 m)) |
| SFP medium | Multimode optical fiber: 50 / 125, 62.5 / 125, 100 / 140 umSingle-mode optical fiber: 8 / 125, 8.7 / 125, 9 / 125, 10 / 125 um |
| Safety certification | CE, FCC, RoHS |
| Working environment | Operating temperature: 14 °F to 122 °F (- 10 °C to 50 °C)Storage temperature: -40 °F to 158 °F (- 40 °C to 70 °C)Operating humidity: 10 % to 90 %, no condensationStorage humidity: 5 % to 95 %, no condensation |
| PWR (Power indicator) | On: Powered onOff: Powered off |
| SYS | Flashing: System startupLighting: System Running |
| 1 to 8 Port | Green On: 2.5 G Link connect normalYellow On: 10 / 100 / 1000 M Link connect normalOff: Link offFlashing: data transmitting |
| 9 Port Green Light | On: 10 G Link connect normalOff: Link offFlashing: data transmitting |
| Reset | Long press for 6 seconds to Factory reset |
| Operating voltage | Adapter input voltage: 100 V AC to 240 V ACSwitch input voltage: DC 12 V 2 A |
| Power | Maximum 24 W |
| Port | Port SwitchPort SpeedPort DuplexPort Flow ControlJumbo, up to 16356 bytes |

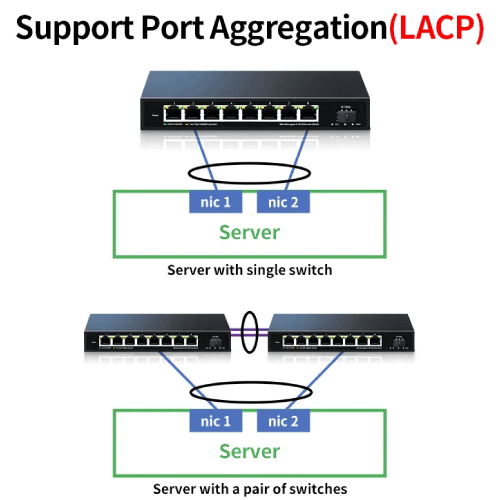

| Link Aggregation | Static GroupUp to 2 groupsMax. 4 members per group |
| Storm Control | BroadcastUnknown MulticastUnknown Unicast |
| Port Security | MAC Address Constraints |
| VLAN | Access/Trunk/HybridCongurable VID from 1 to 4094Max. 31 static VLAN groups |
| MAC Address | Dynamic AddressStatic Address |
| Spinning Tree Protocol | STP / RSTP / MSTPEdge Port |
| Multicast | IGMP SnoopingIGMP V1 / V2Router PortStatic IGMP Join |
| QoS | Traffic classification based, Strict priority and WRRPort PrioritySupports up to 8 queues per port |

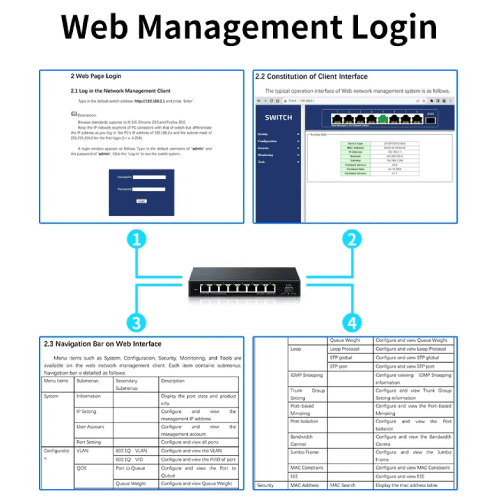

| Access Protocol | HTTP |
| Weight | 1.08 lb (490 g) |
| Structural dimension | 7.4 in x 4 in x 1.1 in (190 mm x 100 mm x 28 mm) |
