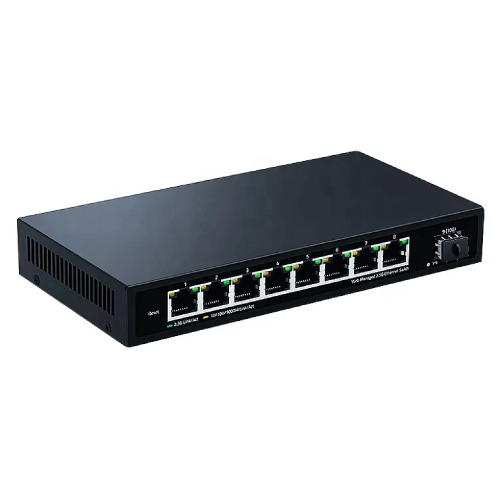

Amuse Tech Solutions Light Network Management Ethernet Switch
Amuse Tech Solutions light network management ethernet switch adopts the network chip solution of high quality and high speed.
Description
Overview
Amuse Tech Solutions light network management ethernet switch adopts the network chip solution of high quality and high speed. The product is designed to be fan-free and quiet, which completely solves the problem of loud noise from small switches deployed in the office environment. The switch has 8 x 100 / 1000 / 2500 M RJ45 ports and 1 x 10 G SFP+ port, providing seamless connection to 100 / 1000 / 2500 M Ethernet for easy management and maintenance. The switch can be widely used in security network video surveillance, hotels, campuses, and network engineering of small and medium-sized enterprises.
Features
- 8 x 2.5 G RJ45 port + 1 x 10 G SFP+ ports
- Ethernet port support 10 / 100 / 1000 M / 2.5 G adaptive
- Supports automatic port rollover (Auto MDI / MDIX)
- Panel indicator lights monitor working status and help failure analysis
- Flow control mode
- Full duplex adopts IEEE802.3x standard
- Half duplex adopts Back pressure standard
Technical Specifications
| Power | DC 2.1 |
| Ethernet | 8 x 100 / 1000 / 2500 M RJ45 ports 1 x 10 G SFP+ ports |
| Bandwidth | 60 Gbps |
| Packet forwarding rate | 44.64 Mpps |
| Package cache | 8 Mbit |

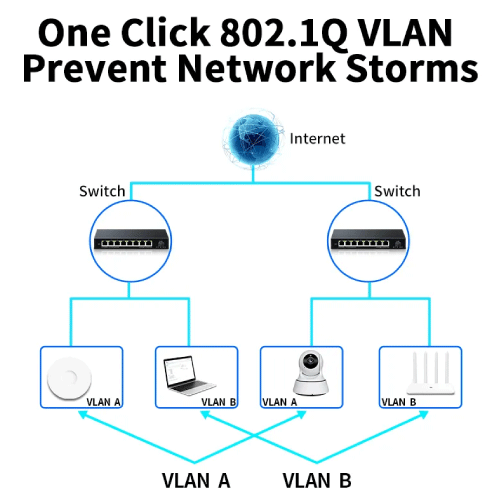

| VLAN | 4096 |
| MAC address table | 4K |
| Jumbo frame | 16 Kbytes |
| Forwarding mode | Store and forward |
| MTBF | 100000 Hour |
| Network protocol | IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE 802.3bz (5G Ethernet) IEEE 802.3z (Gigabit Ethernet) IEEE 802.3ae (10G Ethernet) IEEE802.3x (Flow control) |
| Industry standard | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), EN61000-4-5(Surge) |
| Network medium | 10 Base-T: Cat3, 4, 5 or above UTP / STP ((≤ 3937.01 in (≤ (100 m)) 100 Base-TX: Cat5 or higher UTP / STP ((≤ 3937.01 in ≤ (100 m)) 1000 Base-TX: Cat5 or higher UTP / STP ((≤ 3937.01 in ≤ (100 m)) |
| SFP medium | Multimode optical fiber: 50 / 125, 62.5 / 125, 100 / 140 um Single-mode optical fiber: 8 / 125, 8.7 / 125, 9 / 125, 10 / 125 um |
| Safety certification | CE, FCC, RoHS |
| Working environment | Operating temperature: 14 °F to 122 °F (- 10 °C to 50 °C) Storage temperature: -40 °F to 158 °F (- 40 °C to 70 °C) Operating humidity: 10 % to 90 %, no condensation Storage humidity: 5 % to 95 %, no condensation |
| PWR (Power indicator) | On: Powered on Off: Powered off |
| SYS | Flashing: System startup Lighting: System Running |
| 1 to 8 Port | Green On: 2.5 G Link connect normal Yellow On: 10 / 100 / 1000 M Link connect normal Off: Link off Flashing: data transmitting |
