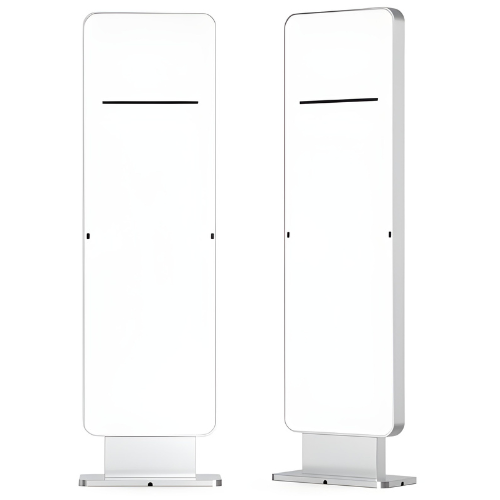

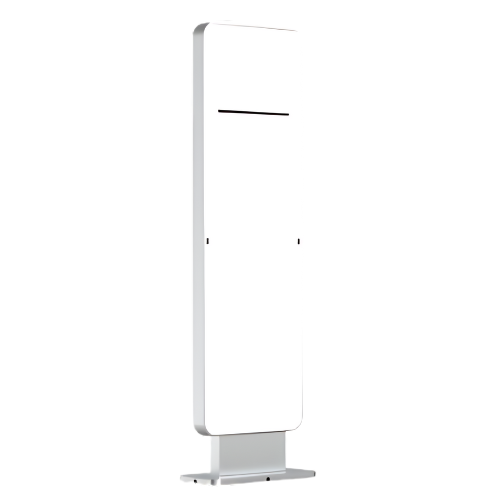

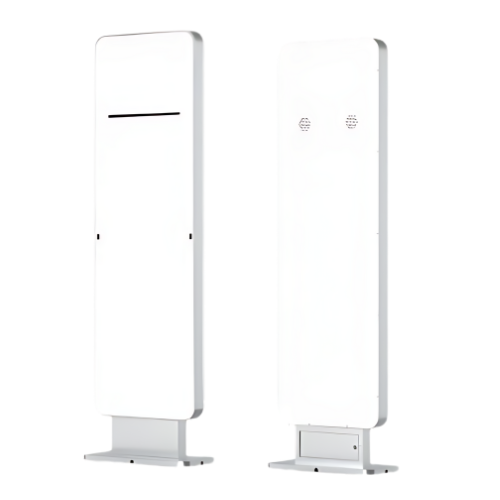

Amuse Tech Solutions JT-924 UHF RFID Portal Reader Gate Door Access ISO 18000-6C UHF RFID Gate Reader For Book Automatic Checking
Working Frequency: 865-868MHz or 920-925MHz or 902-928MHz. Chip: JT-2540 module based on TM serial chip. Software provides demo. Protocol: ISO18000 6C (EPC C1 G2). Power: DC 9-36V or 3A. RF power: 0-32 ± 1 dBm (adjustable). Reading distance: >5m. Storage: 256M flash. Clock: Real time saved when power off. Antenna gain: 8dBi. Material: Aluminum alloy. Working method: Alarm or beep. Size: 60.23in x 16.92in x 2.36in (1530mm x 430mm x 60mm)
Description
Technical Specifications
| Working Frequency | 865 to 868MHz or 920 to 925MHz or 902 to 928MHz |
| Chip | JT-2540 module based on TM serial chip |
| Software | Provides a DEMO (Reading and writing tags automatically) |
| Protocol | ISO18000 6C (EPC C1 G2) |
| Communication Port | RS232, RJ45(standard), WiFi,4G(optional) |
| Power | DC 9 to 36V or 3A |
| RF Power | 0 to 32 ± 1 dBm (adjustable） |
| Reading Distance | 196.85 in (> 5 m) |
| Storage | 256M flash |
| Clock | Real time saved when power off |
| Frequency Method | Fixed or hopping |
| Output/Input Interface | 2-way relay output, 2 way I/O input |
| Tag Signal Value | RSSI value detection |
| Antenna Gain | 8dBi circularly/linear polarized antenna (built-in) |
| Material | Aluminum alloy |
| Working Method | Alarm or beep |
| Size | 60.23 in x 16.92 in x 2.36 in (1530 mm x 430 mm x 60 mm) base: 17.71 in x 7.87 in (450 mm x 200 mm) |
| Weight | 83.77 lb (38 kg) |
| Single Package Size | 62.99 in x 8.66 in x 43.30 in (160 cm X 22 cm X 110 cm) |
| Single Gross Weight | 1093.49 oz (31.000 kg) |
| Working Temperature | -4 °F to 158 °F (-20 °C to 70 °C) |
| Storage Temperature | -22 °F to 176 °F (-30 °C to 80 °C) |
