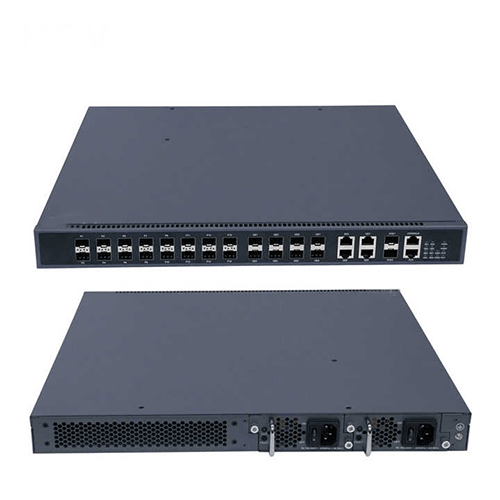

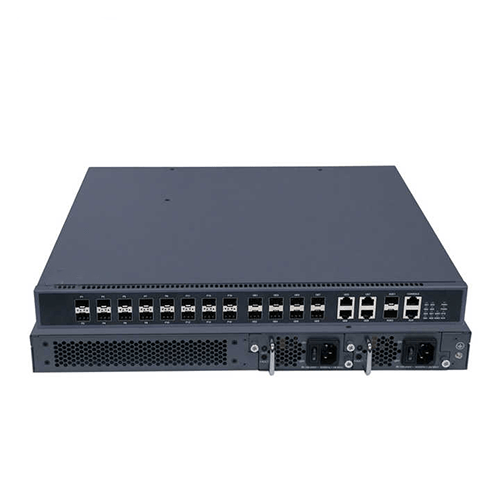

Amuse Tech Solutions High Performance Fiber Optic Converter
Amuse Tech Solutions high performance fiber optic converters are small-capacity cassette GPON OLT, meeting the requirements of ITU-T G.984 or G.988 and relative standards of China Telecom or Unicom, with super access capacity, carrier-class reliability and the complete security function.
Description
Overview
Amuse Tech Solutions high performance fiber optic converters are small-capacity cassette GPON OLT, meeting the requirements of ITU-T G.984 or G.988 and relative standards of China Telecom or Unicom, with super access capacity, carrier-class reliability and the complete security function. It can satisfy long-distance optical fiber access requirement on account of its excellent management, maintenance and monitoring capability, abundant service features and flexible network mode. 16PON can be used with NGBNVIEW network management system so as to provide users with the comprehensive access and perfect solution.Â
Technical Specifications
| Switching capacity | 140 Gbps |
| Throughput (IPv4/IPv6) | 104 Mpps |
| Ports | 16 x PON port, 4 x GE COMBO port, 2 x 10GE SFP+ port |
| Power redundancy | Dual power supply. Can be double AC, double DC or AC+DCÂ |
| Power supply | AC: input 90 V to 264 V 47 Hz or 63 Hz DC: input -36 V to -72 VÂ |
| Environmental requirements | Working temperature: 5 °F to 131 °F (-15 ℃ to 55 ℃) Storage temperature: -40 °F to 158 °F (-40 ℃ to 70 ℃) |
| Relative humidity | 10% to 90%, no condensing |
| PON Features | ITU-TG. 984.x standard |
| Dimensions | 20.47 in x 18.11 in x 5.51 in (520 mm x 460 mm x 140mm)Â |
| Weight | 17.64 lb (≤8 kg) |
