Amuse Tech Solutions Handheld Fiber Optic Reflectometer Ethernet Tester
This Handheld Fiber Optic Reflectometer Ethernet Tester has wavelength of 1310 nm to 1550 nm, and operation temperatures of 14° F to 140° F.
Description
Features
- 5.6 in (14.22 cm) outdoor enhanced touchscreen
- Combined multi dynamic range and wavelengths
- Multi measurement mode, support Touching LCD and pressing keys
- Warning function could prevent OTDR module
- Real time measuring function
- Support English or Chinese input, adopts friendly input interface
- Integrated with 8 GB internal memory, more than 80,000 groups
- PC remote access and control function is available
Technical Specification
| Power Supply | 8.4 V Li-ion Battery 4400 mAH |
| Operating Temperature | 14° F to 140° F (-10 ˚ C to +60 ˚ C) |
| Storage Temperature | -13° F to 158° F (-25 ˚ C to 70 ˚ C) |
| Network | Wireless Lan, Bluetooth, Wired LAN, ONVIF, None, None, SDK, TCP, Ip, POE, GPRS, WIFI, 4g, GSM, 3G, Wigand |
| Testing Wavelength | 1310 nm to 1550 nm |
| Dynamic Range | 30 dB or 28 dB |
| Dead-zone | 31.49 in to 13.12 ft (0.8 m to 4m) |
| Data Storage | 20000 groups of curves |
| VFL | 10 mW |
| Loss Resolution | 0.001 dB |
| Loss Threshold | 0.01 dB |

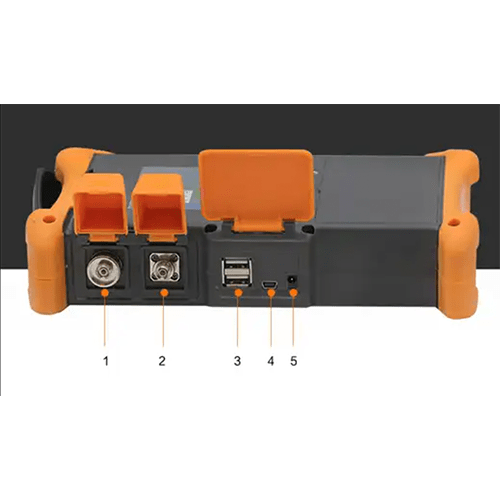

| Interface | 3 USB |
| Battery | 7.4 v |
| Linearity | 0.05 dB |
| Display | 6.5 in (16.51 cm) LCD, Touch screen |
| Weight | 0.6 lb (300 g) |
