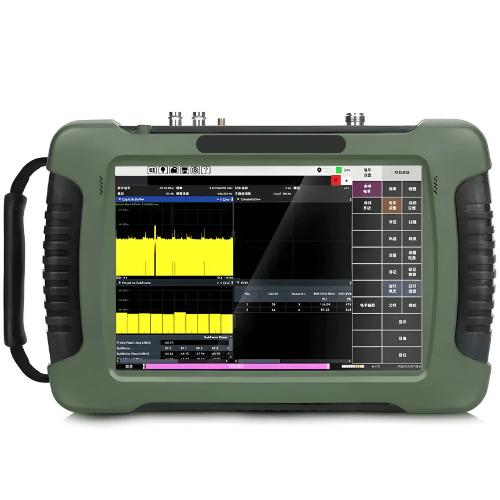

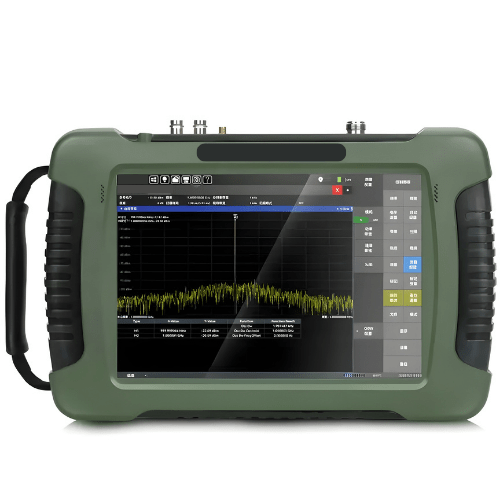

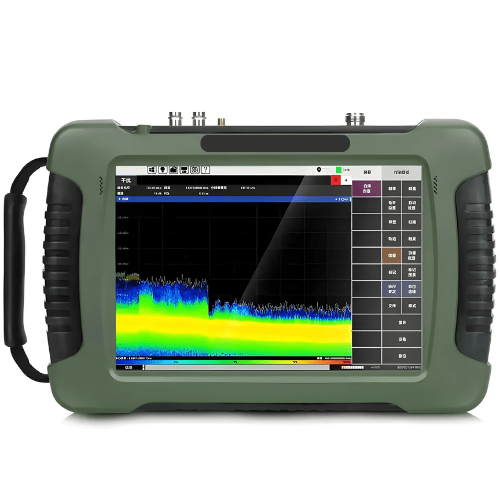

Amuse Tech Solutions Handheld Digital Spectrum Analyzer
This Handheld Digital Spectrum Analyzer has 9 kHz to 20 GHz frequency range, ± 1.5 dB level accuracy, ambient temperature of 32 ℉ to 104 ℉.
Description
Technical Specifications
| Frequency Range | 9 KHz to 20 GHz |
| Frequency Accuracy | ± 0.01 ppm |
| Level Accuracy | ± 1.5 dB |
| Level Resolution | 0.1 dB |
| Phase noise | -114 dBc or Hz at 10 KHz Offset at 1 GHz, -115dBc or Hz at 100 KHz Offset at 1 GHz, -131dBc or Hz at 1 MHz Offset at 1 GHz |
| Reference level range | -130 dBm to +30 dBm |
| Maximum input safe power | 25.7 dBm |
| Second harmonic suppression | -75 dBC |
| Third order intermodulation | + 12 dBm (typical value) |
| Remaining Response | -90 dBm |
| Standing wave ratio | 2.0 |
| Spectrum scanning speed | 9 kHz to 6.3 GHz: 18 GHz or s at 25 KHz .9 kHz to 9 G or 20 G: 137 GHz or s at 25 KHz |
| Real time spectrum analysis bandwidth | Maximum 100 MHz |
| Demodulation analysis support mode | SG-NR, LTE, NB-IoT, WCDMA, GSM, Vector |
| Power Supply | AC100 V to 240 V or 50 Hz to 60 Hz DC12 V |
| Ambient Temperature | 32 ℉ to 104 ℉ (0 ℃ to 40 ℃) |
| Display | 10.5 in (26.6 cm) high-definition display screen |
| Size | 11.6 in x 8.8 in x 1.9 in (295 mm x 225 mm x 50 mm) |
| Weight | 5 lb (2.3 kg) |
