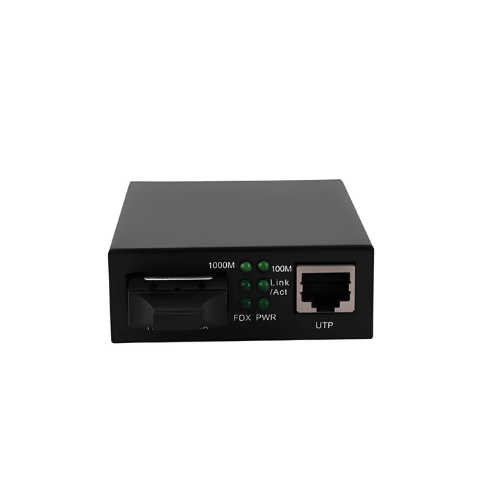

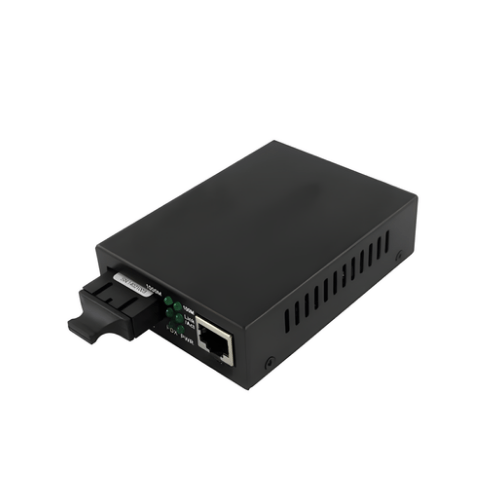

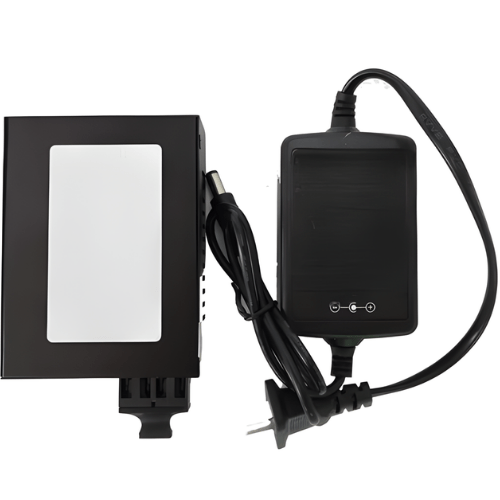

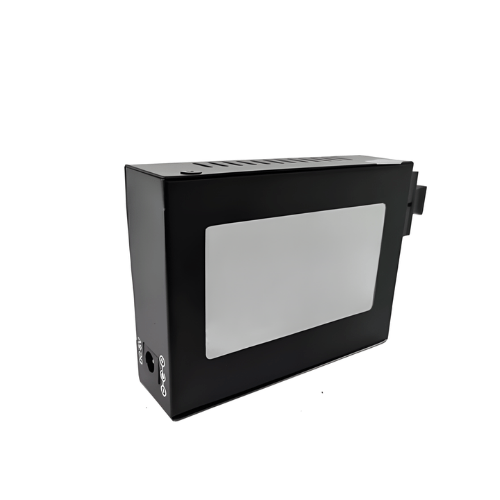

Amuse Tech Solutions Gigabit Single Mode Fiber Converter
This Gigabit Single Mode Fiber Converter has operating temperature of 32 ℉ to 122 ℉, humidity of 5 % to 95 %, and data Rate of 1000 Mbps.
Description
Technical Specifications
| Connector | SFP |
| Data Rate | 1000 Mbps |
| Duplex Mode | Full duplex |
| Fiber | MM 50 um or 125 um, 62.5 um or 125 um SM 9 um or 125 um |
| Distance | MM 0.3 mi or 1.2 mi (550 m or 2 km), SM 12.4 mi or 24.8 mi or 37.2 mi or 49.7 mi (20 km or 40 km or 60 km or 80 km) |
| Wavelength | MM 850 nm, 1310 nm, SM 1310 nm,1550 nm WDM T x 1310 nm or R x 1550 nm (A side), T x 1550 nm or R x 1310 nm (B side) WDM T x 1490 nm or R x 1550 nm (A side), T x 1550 nm or R x 1490 nm (B side) |
| Connector | RJ45 |
| Data Rate | 10 Mbps or 100 Mbps or 1000 Mbps |
| Duplex Mode | Half or full duplex |
| Cable | Cat 5, Cat 6 |
| Power Consumption | <3 W |
| Power Supply | DC + 5 V or 1 A output |
| Operating Temperature | 32 ℉ to 122 ℉ (0 ℃ to 50 ℃) |
| Storage Temperature | -40 ℉ to 158 ℉ (-40 ℃ to 70 ℃) |
| Humidity | 5 % to 95 % (no condensing) |
| MTBF | ≥ 10.0000 hrs |
| Dimensions | 37 in x 27.7 in x 10.4 in (94 cm x 70.5 cm x 26.5 cm) 5.5 in x 43.7 in x 11.8 in (140.5 cm x 111 cm x 30 cm) |
| Weight | 0.85 lb (390 g) 1.47 lb (670 g) |
