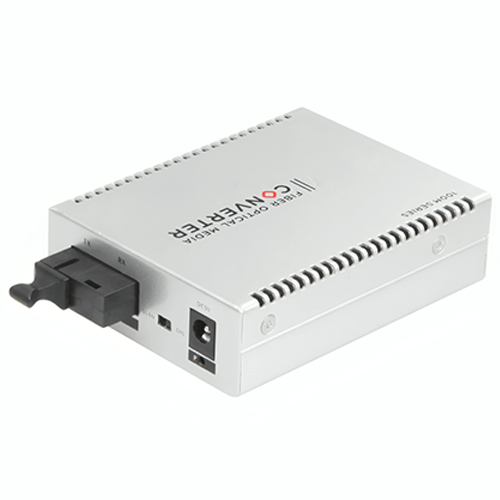

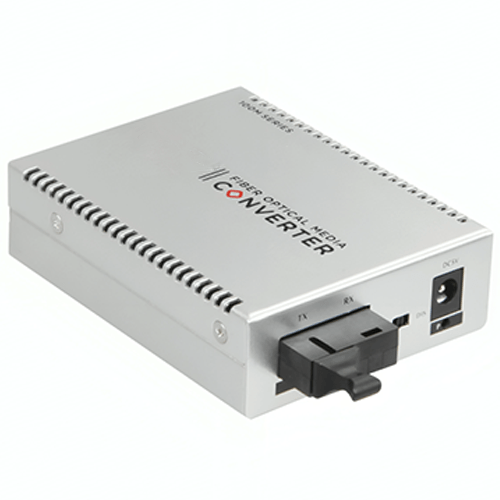

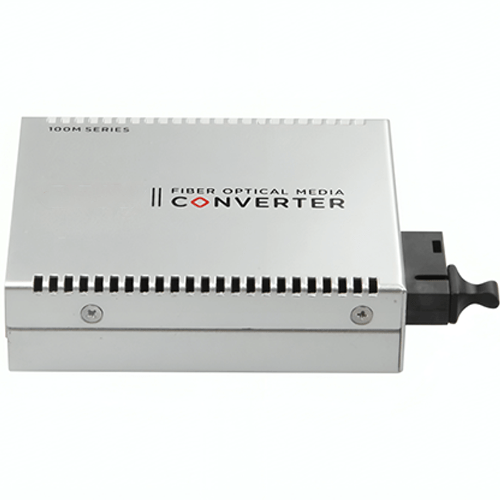

Amuse Tech Solutions Gigabit Single Mode Fiber Converter
Amuse Tech Solutions gigabit single mode fiber converter 10 Mbps or 100 Mbps series of fiber optic transceivers can be used between 100 base-TX cable and 100 base FX fiber cable or 10 base T cable and 10 base FL fiber cable for the data transmission usage.
Description
Overview
Amuse Tech Solutions gigabit single mode fiber converter 10 Mbps or 100 Mbps series of fiber optic transceivers can be used between 100 base-TX cable and 100 base FX fiber cable or 10 base T cable and 10 base FL fiber cable for the data transmission usage. Suitable for intelligent community, it extends the network transmission from 0.06 mi to 62.1 mi (100 m to 100 km). Also, it can be realizing the interconnection between motherboard server, Repeaters, hubs, switches, and terminal. Plug and play design makes installation easy, no on-site adjustment, all the light, electricity interfaces are in line with international standards, Products applicable to different harsh industrial environment.
Features

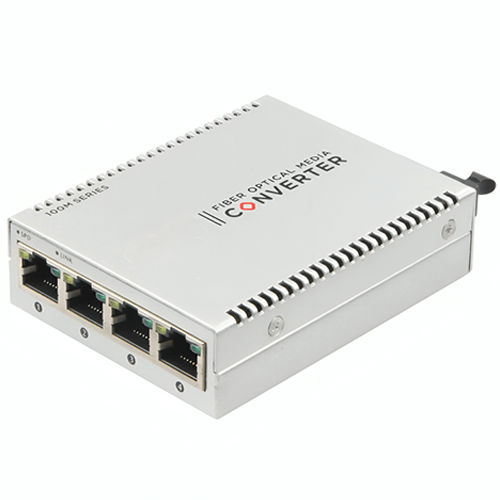

- 4 Mbps x 10 Mbps or 100 Mbps RJ45 Ports + 1 Mbps x 155 Mbps Fiber Port
- Ethernet 10 base T or 100 base TX to 100 base FX fiber
- Ethernet electrical port supports the consultations between rates
- Duplex mode, parallel or crossover line adaptive function
- Supports 10 Mbps and 100 Mbps automatically adaptive
- (Working bandwidth can be 200 Mbps in full-duplex mode)
- Features with link loss diagnosis, electrical port link diagnosis
- Optical port link diagnosis, dynamic data transmission
- Full-duplex or half-duplex, speed indicator
- Supports super long frame transmission
- Fully compatible with various expansion standards data frame
- Supports optical path interruption transfer function
- Transfer the interruption-alarm to the opposite equipment
- Provides single or dual fiber transmission, many optical interface
- Configuration for different wavelength and LED power etc.
- Various status indicators
- Can easily and accurately show the working status of the interface and link
Technical Specifications
| Wavelength | 1310 nm or 1550 nm |
| Switching Capacity | 10 Gbps |
| Forwarding Rate at 64 bytes | 7.44 Mpps |
| Interface | 4 Mbps x 10 Mbps or 100 Mbps RJ45 Ports + 1 Mbps x 155 Mbps Fiber Port |
| Transmission | 12.4 mi (20 km) |
| Optic Fiber | Single Mode Single Fiber, SC port, 1310 nm or 1550 nm |
| Broadband | 155 Mbps |
| Rate | 10 MHz or 100 MHz |
| MAC | 2 K |
| Buffer Memory | 2 M |
| Network Media | 10 base T, Cat 3, 4, 5 UTP cable ,100 base TX more than cat 5 UTP cable |
| Architecture | Store-And-Forward Architecture |
| Operating Temperature |  -4 ℉ to 131 ℉ (-20 ℃ to +55 ℃) |
| Storage Temperature | -4 ℉ to 167 ℉ (-20 ℃ to +75 ℃ |
| Relative Humidity | 10 % to 95 % (non-condensing) |
| EMI Safety | FCC Class A, CE |
| Power supply | Input, AC 100 V to 240 V 50 Hz or 60 Hz, External power supply |
| Dimension | in x in x in (93 mm x 72 mm x 26 mm) |
