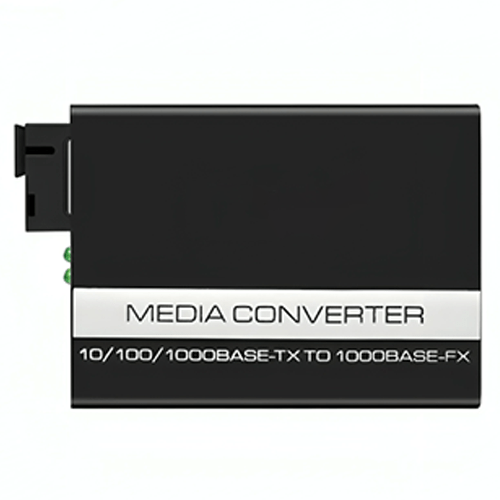

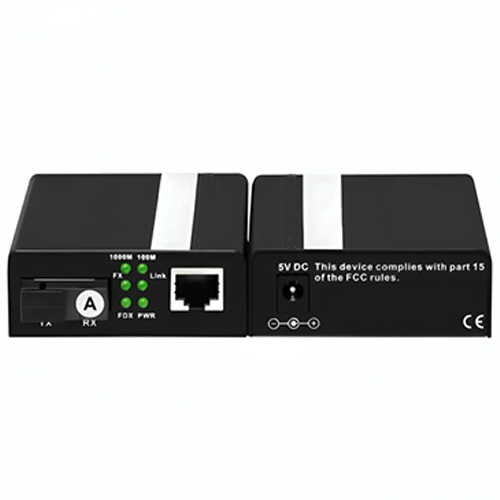

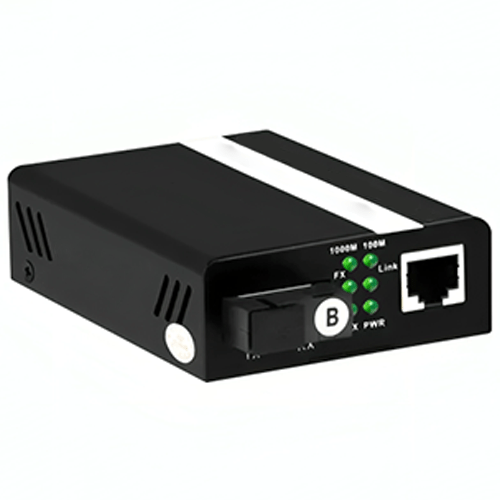

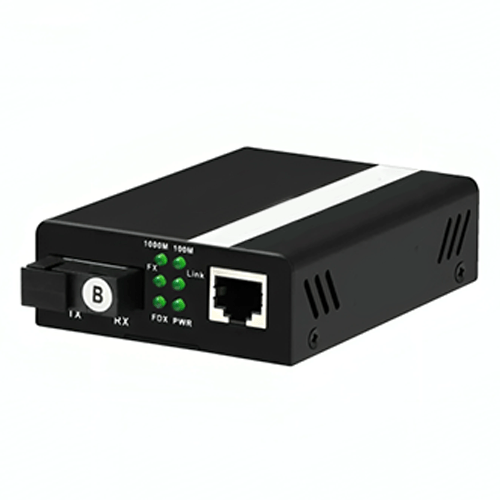

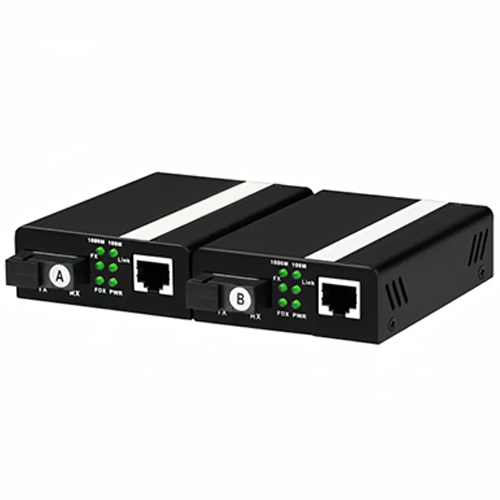

Amuse Tech Solutions Gigabit Single Fiber Media Converter
Amuse Tech Solutions gigabit single fiber media converter can efficiently realize the conversion between 10 Mbps or 100 Mbps or 1000 Mbps Ethernet electrical port and fiber port, automatically compatible with half or full duplex mode.
Description
Overview
Amuse Tech Solutions gigabit single fiber media converter can efficiently realize the conversion between 10 Mbps or 100 Mbps or 1000 Mbps Ethernet electrical port and fiber port, automatically compatible with half or full duplex mode. It can carry out long- distance data and video signal transmission via optical fiber, which is convenient for network upgrading and flow control. Adopt international advanced chip and design to ensure the stability and practicability with ultra- low transmission delay and line speed forwarding ability, it can realize flexible Ethernet expansion even in harsh environment. Use standard international optical and electronic components to ensure reliable and stable operation. This series of products can be configured with combo port, able to connect with single-made fiber or multi-mode fiber according to the user’s situation. Adopts double side ventilated heat dissipation design.
Features
- Built-in high efficiency switching core to achieve
- Flow control and reduce broadcast packet
- Automatically adapt to 10 Mbps or 100 Mbps or 1000 Mbps
- Network environment, free conversion network upgrade
- Support full-duplex and half-duplex transmission
- Mode, automatic negotiation
- Support 9216-byte packets, monitoring and
- Transmission more smooth
- Complete power link, working mode indicator light
- Working state at a glance
- Low power consumption low heat, long time
- Stable work, network security advanced
- Support dual-fiber multimode, dual-fiber single-
- Mode single-fiber single-mode, and multiple fiber interface options
Technical Specifications
| Power | DCÂ 5V |
| Ethernet | 1-Port 10 Mbps or 100 Mbps or 1000 Mbps RJ45, 1-Port 1000 Mbps fiber ports |
| Switching Capacity | 4 Gbps |
| Throughput | 2.976 Mpps |
| Packet Buffer | 2 K |
| MAC Address | 2 K |
| Jumbo Frame | 9216 bytes |
| Transfer Mode | Store and forward |
| MTBF | 100000Â hrs |
| Network protocol | IEEE802.3 (10 Base-T), IEEE802.3 u (100 Base-TX or FX), IEEE802.3 ab (1000 Base-TX or FX), IEEE802.3 x (Flow control) |
| Optical characteristics | Multi-mode, 850 nm or 1310 nm, 0 mi to 1.2 mi (0 km to 2 km), Single mode, 1310 nm or 1550 nm or 1490 nm, 0 mi to 74.5 mi (0 km to 120 km) |
| Industry Standard | EMI, FCC Part 15 CISPR (EN55032) class A, EMS, EN61000-4-2 (ESD), EN61000-4-4 (EFT), Shock, IEC 60068-2-27, Free Fall, IEC 60068-2-32, Vibration, IEC 60068-2-6 |
| Network Medium | 10Base-T, Cat 3, 4, 5 or above UTP 0.06 mi (≤ 100 m), 100 Base-TX, Cat 5 or above UTP 0.06 mi (≤ 100 m), 1000 Base-TX, Cat 5 or above UTP 0.06 mi (≤ 100 m) |
| Optical Media | Multimode fiber, 50 um or 125 um, 62.5 um or 125 um, 100 um or 140 um Single mode fiber, 8 um or 125 um, 8.7 um or 125 um, 9 um or 125 um, 10 um or 125 ums |
| Working Temperature | -4 ℉ to 122 ℉ (-20 °C to 50 °C) |
| Storage Temperature | -40 ℉ to 158 ℉ (-40 °C to 70 °C) |
| Working Humidity | 10 % to 90 %, non-condensing |
| Storage Temperature | 5 % to 90 %, non-condensing |
| Product Size | 3.7 in x 2.7 in x 1 in (94 mm x 70 mm x 26 mm), 9.6 in x 7.4 in x 2.3 in (245 mm x 190 mm x 60 mm) |
| Product Net-Weight | 0.44 lb x 4.4 lb (200 g x 2 kg), 1.5 lb (700 g) |
