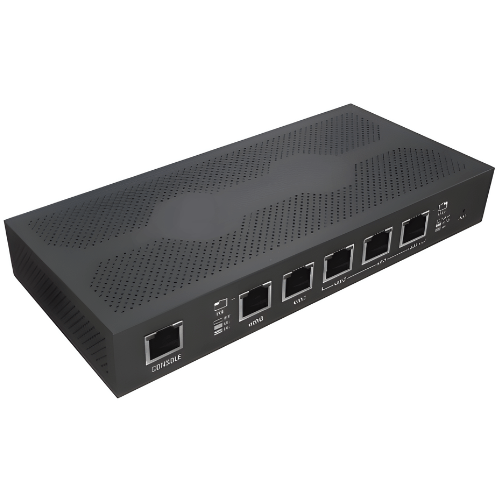

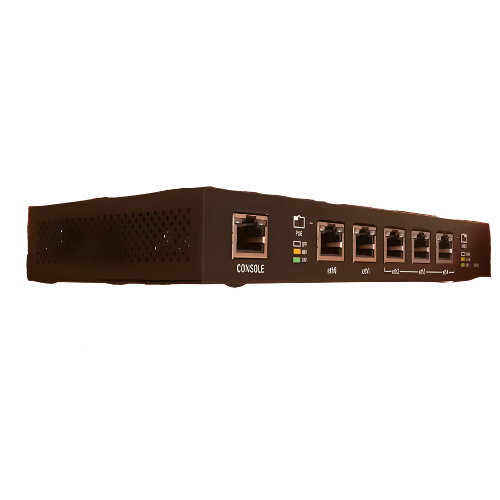

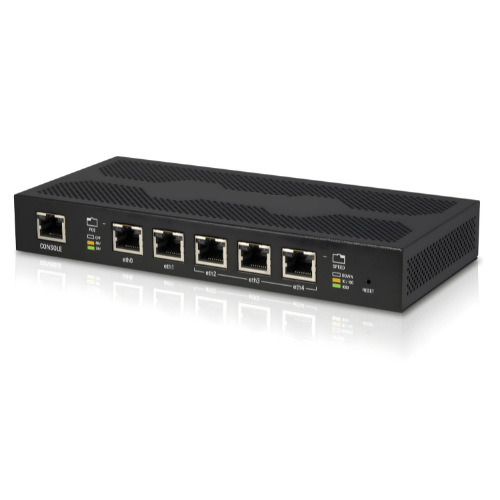

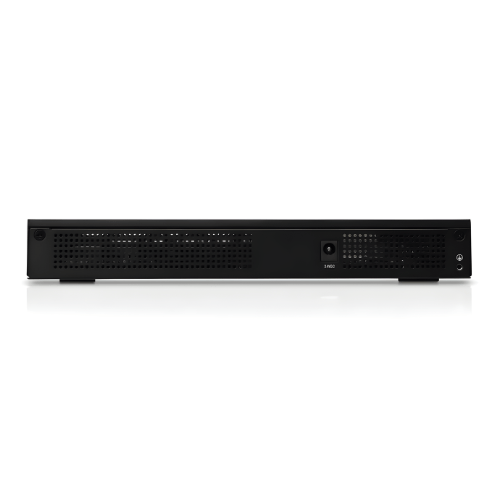

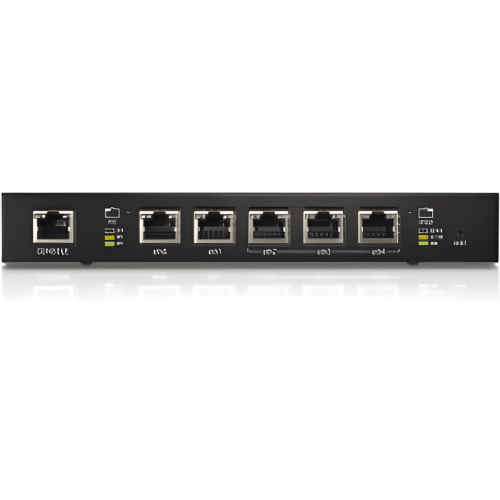

Amuse Tech Solutions Gigabit POE
This gigabit PoE has a 60 W max power consumption, External AC or DC Power Adapter, 60 W (24 V, 2.5 A) Power Method and Power Input 24 VDC to 48 VDC.
Description
Technical Specifications
| Max. Power Consumption | 60 W |
| Power Method | External AC or DC Power Adapter, 60W (24 V, 2.5 A) (Included) |
| Power Supply | External AC or DC Adapter |
| Supported Voltage Range | 38Â to 54 VDC |
| Power Input | 24 VDCÂ to 48 VDC (48 VDC, 1.25A Power Adapter Included) |
| Button | Reset |
| Processor | Dual-Core 500 MHz, MIPS64 with Hardware Acceleration for Packet Processing |
| System Memory | 512 MB DDR2 RAM |
| Code Storage | 2 GB |
| Serial Console Port | Power |
| Data Ports | PoE, Speed or Link or Activity |
| Serial Console Port | N or A |
| Data Ports | Off or 24 V or 48 V* |
| Serial Console Port | (1) RJ45 Serial Port |
| Data Ports | (2) 10 or 100 or 1000 Ethernet Router Ports (3) 10 or 100 or 1000 Ethernet Router or Switch Ports |
| Wall-Mount | Yes |
| Certifications | CE, FCC, IC |
| PoE Out Voltage Range | 22-24 VDC or 45-48 VDC |
| Max. PoE Wattage Per Data Port | 12 W (24 V), 24 W (48 V) |
| Max. PoE Wattage Combined for All 5 Data Ports | 50 W |
| PoE Method | Passive |
| Operating Temperature | 22 F to 122 F (5.55 °C to 50 °C) |
| Operating Humidity | 10 to 90% Noncondensing |
| Dimensions | 7.87 in x 3.54 in x 1.18 in (200 mm x 90 mm x 30 mm) |
| Weight | 0.79 lb (0.35 kg) |
