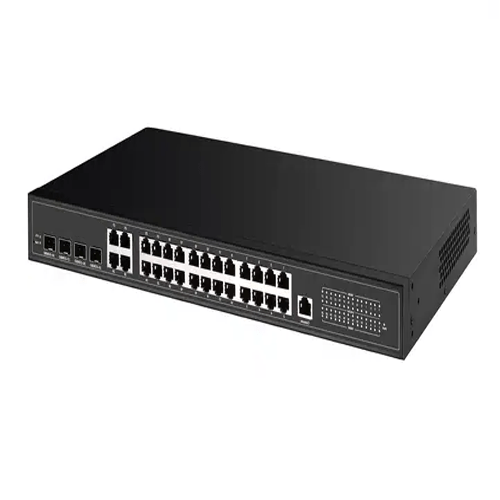

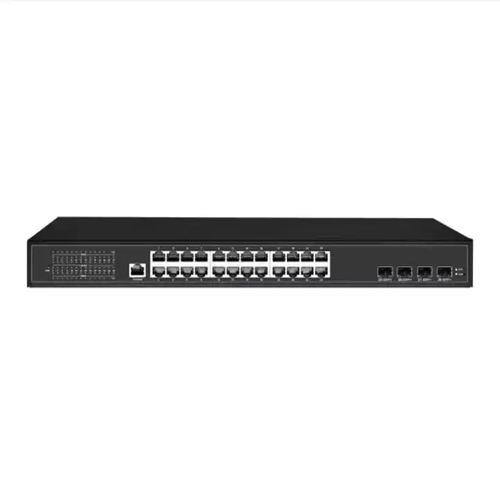

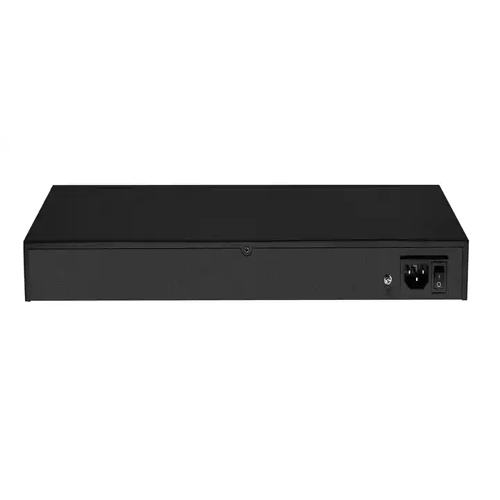

Amuse Tech Solutions Gigabit Optical Fiber Network Switch
Amuse Tech Solutions gigabit optical fiber network switches are L2 Non-traffic Ethernet switches using BCM standard chipsets.
Description
Overview
Amuse Tech Solutions gigabit optical fiber network switches are L2 Non-traffic Ethernet switches using BCM standard chipsets. They provide 24 ports of 10 or 100 or 1000 Mbps auto-negotiation Ethernet ports and 4 x 10Gb fiber SFP uplink ports, high integration designs, small and exquisite, portable, suitable for medium and small offices and home networks. Using store-and-forward technology, combined with dynamic memory allocation, ensures allocation to each port effectively. Their wire-speed switching that forwards packets can be as fast as the speed that your network delivers those packets to them.
Features
- Excellent Performance
- 256Gbps Bandwidth
- Hardware routing, forwarding rate 131Mbps of line speed L3 switching packet
- Can be deployed in the core of MAN and provide last 1km technology
- Ethernet or IEEE802.3 data packet size (64 bytes to 1522 bytes)
- Giant data packet in maximum 9216 bytes
- Safety and Reliable
- Provide DNS DDoS Attacks detecting and defending, Defense against deception and viruses
- Limit the maximum connected hosts quantity of ports, Ethernet interface for multiple binding, increase the bandwidth and system redundancy
- Strong ACL, Support L2-L4 data filtering
- Strategy Control list and flowing monitoring
- Convenient operation and maintenance
- Get multiple management through Web, SNMP
- Support XModem protocol, upgrade the software and Boot Room by TFTP or ZMODEM
- Support SFP+ and downward compatible XFP
- Strong flowing and broadcast management
- Auto-detection and controlling broadcast storms, support IGMP, effectively limit the broadcast message flooding.
- Half duplex and Full duplex flow control
- Support Ethernet interface limit rate with 1M step size
Technical Specifications
| Port | 24 x 10 Mbps or 100 Mbps or 1000 Mbps 4 x 10Gbps fiber SFP |
| Management port | 1 x Console |
| Reset KEY | 1 |
| Bandwidth | 256 Gbps |
| Packet forwarding | 92.32 Mpps |
| MAC | 16 K |
| PoE port | 24 |
| Transmission Mode | Store and forward |
| Environmental | working temperature:32 °F to 122 °F (0 ℃ to 50 ℃) Storage temperature: -40 °F to 158 °F (-40 ℃ to 70 ℃) Operating humidity: 10% to 90% non-coagulation Storage humidity: 5% to 95% non-coagulation |
| Product size | 17.32 in x 11.42 in x 1.77 in (440 mm x 290 mm x 45 mm) |
| Power in | AC 100 V to 240 V 50 Hz to 60Hz |
| Lightning | Surge protection: 3 KV 8 or 20us Grade: IP30 |
| Size | 19.57 in x 15.47 in x 3.82 in (497 mm x 393 mm x 97 mm) |
| Weight | 11.02 lb (5 kg) |
