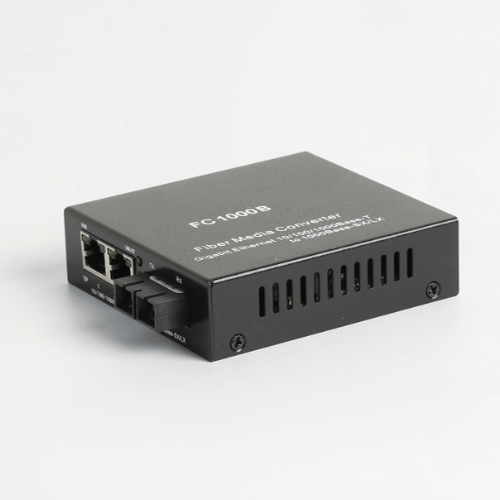

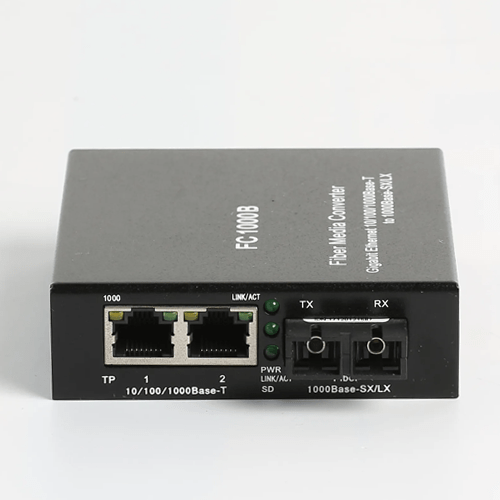

Amuse Tech Solutions Gigabit Mini Media Convertor
This Gigabit Mini Media Convertor has operating temperature of 14 °F to 131 °F, storage humidity of 5 % to 90 % and power consumption of 3 W.
Description
Technical Specification
| Wavelength | 850 nm or 1310 nm or 1490 nm or 1550 nm |
| Transmission distance | Dual-fiber multi-mode 721 ft (220 m) Fiber size 62.5 μm or 125 μm or 1804 ft (550 m) (fiber size 50 μm or 125μm) Dual-fiber single-mode 12.42 mi (20 km), 24.85 mi (40 km), 43 mi (60 km), 49 mi (80 km), 74 mi (120 km) Single-fiber single-mode 12.42 mi (20 km), 24.85 mi (40 km), 43 mi (60 km), 49 mi (80 km), 74 mi (120 km) Category 5 twisted pairs 328 ft (100 m) |
| Conversion mode | Medium conversion, storing and forwarding mode |
| MAC address table | I K |
| Buffer space | 1 Mbit |
| Delay | < 1 μs |
| Bit error rate | < 1 or 1000000000 |
| MTBF | 100,000 hrs |
| Power | DC 5 V or 1 A, AC 220 V or DC 48 V (built in) |
| Power consumption | 3 W |
| Operating humidity | 5 % to 90 % |
| Storage humidity | 5 % to 90 % |
| Operating temperature | 14 °F to 131 °F (-10 °C to 55 ℃) |
| Storage temperature | -40 °F to 176 °F (-40 °C to 80 ℃) |
| Dimensions | 1.5 in x 4.64 in x 5.98 in (38 mm x 118 mm x 152 mm) (built-in power) 4.33 in x 1.25 in x 3.18 in (110 mm x 22 mm x 81 mm) (module card) 1.02 in x 2.79 in x 3.74 in (26 mm x 71 x mm x 95 mm) (external power) |
