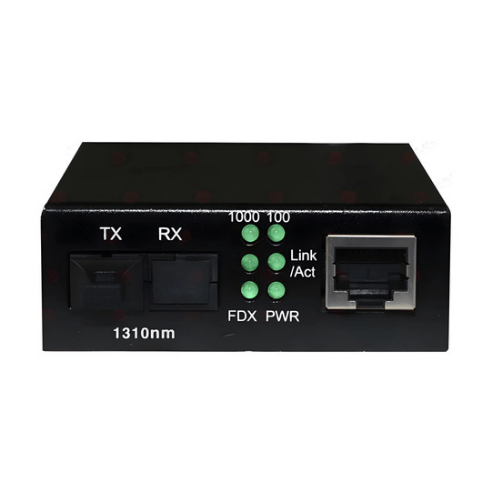

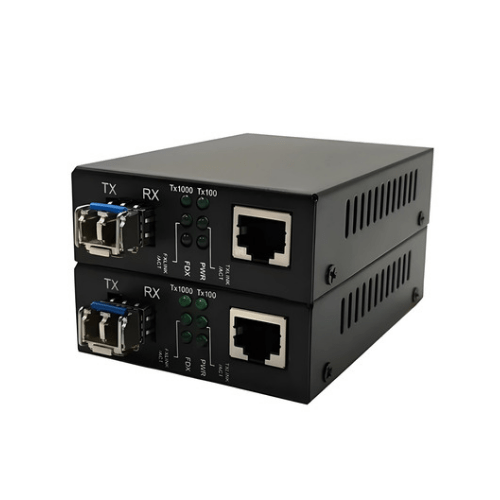

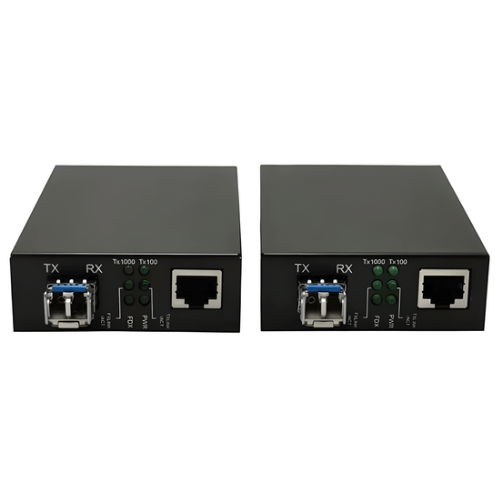

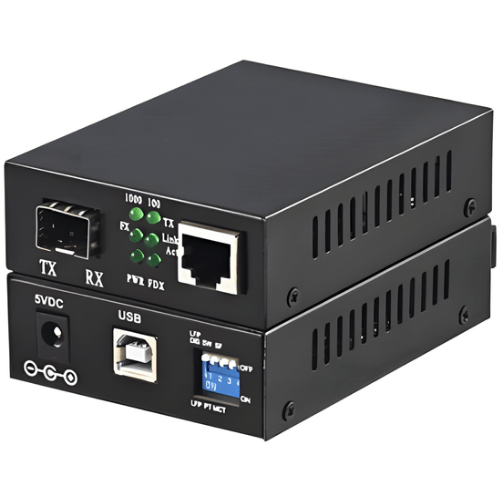

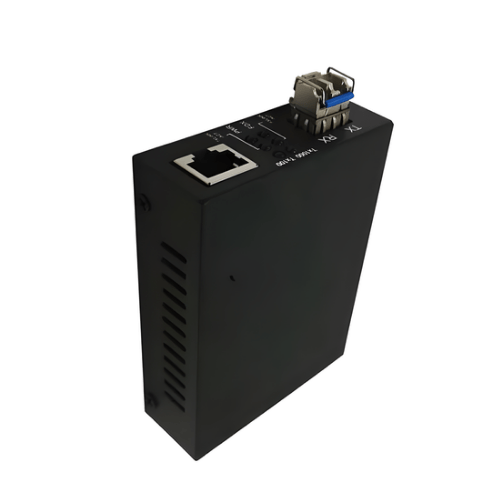

Amuse Tech Solutions Gigabit Fiber Optic Media Converter
Amuse Tech Solutions gigabit fiber optic media converter our media converter provides economic solutions for media conversion between fiber and copper Ethernet.
Description
Overview
Amuse Tech Solutions gigabit fiber optic media converter our media converter provides economic solutions for media conversion between fiber and copper Ethernet. It provides you SC or FC or ST connectors for your fiber optic cables and RJ45 for twisted pair UTP cable connection. The maximum extension is up to 74 mi (120 km) over fiber.
Â
Features
- Hot Pluggable and Wall-Mountable
- Stable performance more than 50 thousand hrs with fault-free
- Unique IC solution applied
- Supports 10 Mbps or 100 Mbps and 10 Mbps or 100 Mbps or 1000 Mbps
- Full or half duplex, easy upgrades
- Auto MDI or MDI-X
- Auto Negotiation
- Support flow control
- In conformity with safety code of FCC, CE and RoHS
Â
Technical Specifications
| Ethernet Port | 1 x 10 Mbps or 100 Mbps or 1000 Mbps RJ45 Port |
| Rate | 10 Mbps or 100 Mbps or 1000 Mbps Adaptive, Full or Half Duplex Fully |
| Mode | Single mode |
| Fiber Type | Single fiber |
| Connector | SC or FC or LC |
| Data Rate | 100 Mbps |
| Duplex Mode | Full duplex |
| Fiber | SM 9 um or 125um |
| Distance | MM 1.2 mi (2 km), SM 15.5 mi (25 km) |
| Wavelength | WDM T x 1310 nm or R x 1550 nm (A side), T x 1550 nm or R x 1310 nm (B side) |
| Connector | RJ45 |
| Data Rate | 10 Mbps or 100 Mbps |
| Duplex Mode | Half or full duplex |
| Cable | Cat 5, Cat 6 |
| Power Input | DC 5 V |
| Power Built-In Type | AC 100 V to 240 V |
| Power Consumption | <3 W |
| Operating Temperature | 32 ℉ to 122 ℉ (0 ℃ to 50 ℃) |
| Storage Temperature | -40 ℉ to 158 ℉ (-40 ℃ to 70 ℃) |
| Humidity | 5 % to 95 % (no condensing) |
| MTBF | ≥ 10.0000 hrs |
| Dimensions | 3.7 in x 2.7 in x 1 in (94 mm x 70 mm x 26 mm) |
| Weight | 0.83 lb (380 g) |
