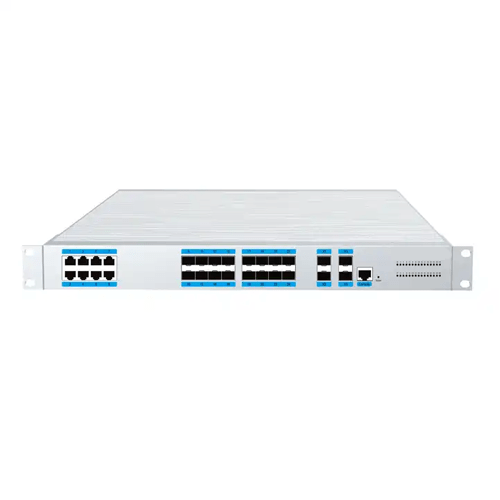

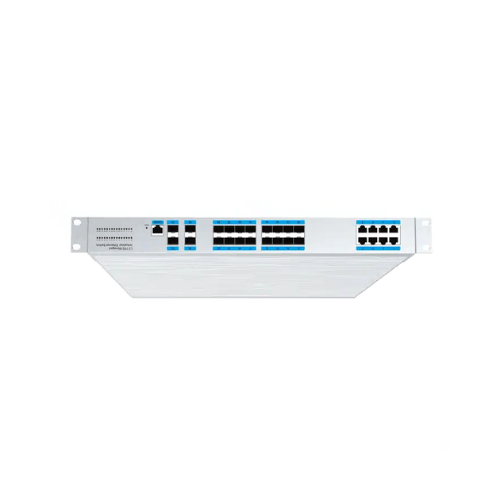

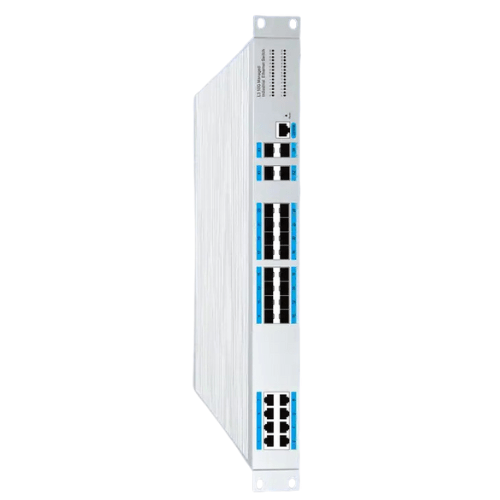

Amuse Tech Solutions Gigabit Ethernet Switch
Amuse Tech Solutions gigabit ethernet switches have L3 network management functions, support IPV4 or IPV6 management, dynamic routing full line-speed forwarding, complete security protection mechanisms, perfect ACL or QOS policies, and rich VLAN functions, easy to manage and maintain.
Description
Overview
Amuse Tech Solutions gigabit ethernet switches have L3 network management functions, support IPV4 or IPV6 management, dynamic routing full line-speed forwarding, complete security protection mechanisms, perfect ACL or QOS policies, and rich VLAN functions, easy to manage and maintain. The switches series have high reliability, high security, and high manageability, ensuring reliable transmission of key data, and supporting remote management. The products completely follow the industrial product designs and materials. The shells are made of metal materials to enhance heat dissipation. They have excellent adaptability to industrial site environments (including mechanical stability, climate environment adaptability, electromagnetic environment adaptability, etc.). Protection levels reach IP 40, and they support 2 AC + DC dual redundant power supplies. They are suitable for intelligent transportation, rail transit, power industries, mining, petroleum, and industrial scenes such as shipping, metallurgy, and green energy construction, forming cost-effective, stable, and reliable communication networks.
Technical Specifications
| Ring network | Supports ERPS ring network function, with a maximum number of rings of 5 and a convergence time of <20 ms |
| Network Protocol | IEEE 802.3 10BASE-T, IEE E802.3i 10Base-T, IEEE 802.3u 100Base-TX |
| Forwarding Mode | Store and Forward (Full Wire Speed) |
| Switching Capacity | 128 Gbps |
| Buffer Memory | 96 Mpps |
| MAC | 32 K |
| Reset Switch | Yes, Press and hold the reset switch for 10s and release it to restore the factory settings |
| Working Voltage | DC 36 V to 72 V, 4 Pin industrial phoenix terminal, support anti-reverse protection |
| Power Consumption | Standby <25 W, Full load <45 W |
| Power Supply | AC 100 V to 240 V 50 Hz or 60 Hz industrial power supply |
| Operation TEMP or Humidity | -40 °F to 176 °F (-40 °C to +80 °C), 5% to 90% RH Noncondensing |
| Storage TEMP or Humidity | -40 °F to 176 °F (-40 °C to +85°C), 5% to 95% RH Noncondensing |
| Dimension | 17.32 in x 11.81 in x 1.73 in (440 mm x 300 mm x 44 mm) |
| Installation | Desktop, 19 in (48.26 cm)1U cabinet installation |
