Amuse Tech Solutions Gigabit Ethernet Fiber Converter
Amuse Tech Solutions gigabit ethernet fiber converter can realize 10 base or 100 base or 1000 base T twisted pair and 100 base FX two medium conversion or extend the network transmission distance, is mainly used for optical fiber network transmission distance 12.4 mi or 24.8 mi or 37.2 mi or 49.7 mi or 74.5 mi (20 km or 40 km or 60 km or 80 km or 120 km).
Description
Overview

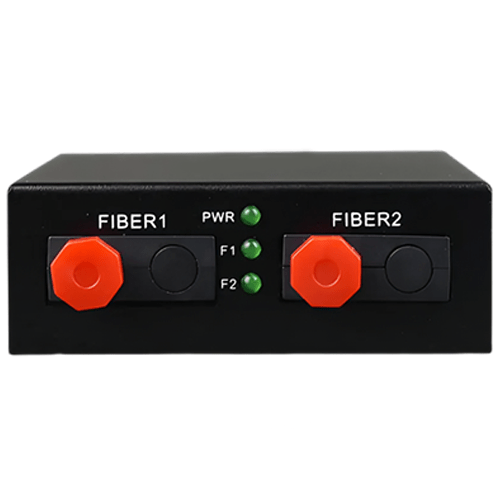

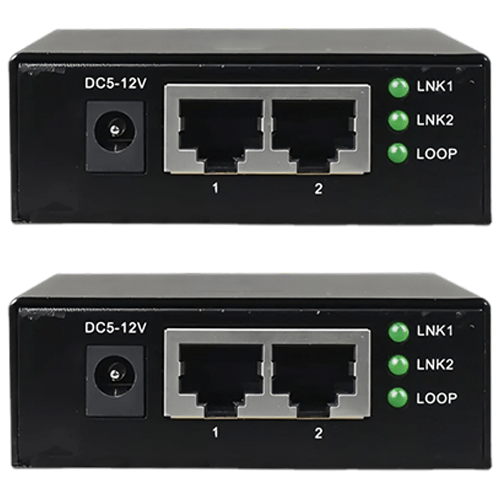

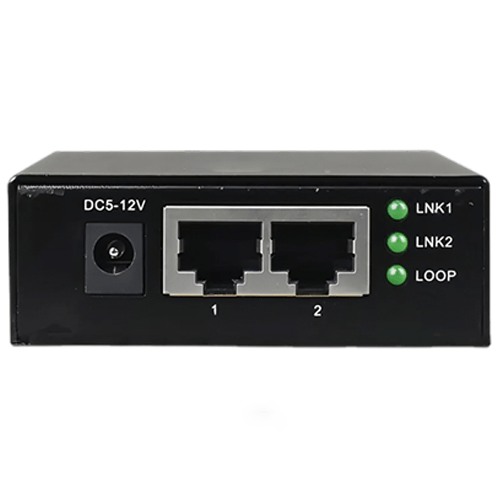

Amuse Tech Solutions gigabit ethernet fiber converter can realize 10 base or 100 base or 1000 base T twisted pair and 100 base FX two medium conversion or extend the network transmission distance, is mainly used for optical fiber network transmission distance 12.4 mi or 24.8 mi or 37.2 mi or 49.7 mi or 74.5 mi (20 km or 40 km or 60 km or 80 km or 120 km). This product provides 2 Mbps 1000 Mbps optical port (The main optical fiber interface and backup optical fiber interface, when the main optical fiber network is disconnected, the backup optical fiber network connects automatically, without affecting signal transmission.) and 2 GE Ethernet ports and shares 100 Mbps bandwidth. It has perfect alarm function, stable and reliable operation, low power consumption, high integration and small size.
Technical Specifications
| Service | 2 Mbps x 100 Mbps optical port, 2 FE Ethernet port |
| Interface Rate | 10 Mbps or 100 Mbps or 1000 Mbps half or full duplex auto-negotiation |
| Interface Standard | Compatible with IEEE 802.3 IEEE 802.1 Q (VLAN) |
| MAC Address Capability | 4096 |
| Connector | RJ45 support Auto-MDIX |
| Transmission distance | 1.2 mi (2 Km), attenuation (3 dbm or km) |
| Wavelength | 850 nm |
| Transmitting power | -12 dBm (Min) to -9 dBm (Max) |
| Receiver sensitivity | -28 dBm (Min) |
| Link budget | 16 dBm |
| Transmission distance | 12.4 mi (20 Km), attenuation (0.35 dbm or km) (provide customized products for longer distance) |
| Wavelength | 1310 nm |
| Transmitting power | -9 dBm (Min) to -5 dBm (Max) |
| Receiver sensitivity | -27 dBm (Min) |
| Link budget | 18 dBm |
| Working temperature | 14 ℉ to 122 ℉ (-10 °C to 50°C) or 14 ℉ to 158 ℉ (-10 °C to 70 °C) (industrial type) |
| Working Humidity | 5 % to 95 % (no condensation) |
| Storage temperature | -40 ℉ to 185 ℉ (-40 ℃ to +85 ℃) |
| MTBF | > 100,000 hrs. |
| Power supply | AC180 V to 260 V, DC -48 V, DC +24 V |
| Power | AC 220 V or DC -48 V (optional) |
| Dimension | 3.66 in x 2.7 in x 0.9 in (93 mm x 70 mm x 25 mm) |
| Weight | 1.1 lb (500 g) or piece |
