Amuse Tech Solutions Gigabit Ethernet Analyzers
Description
Overview

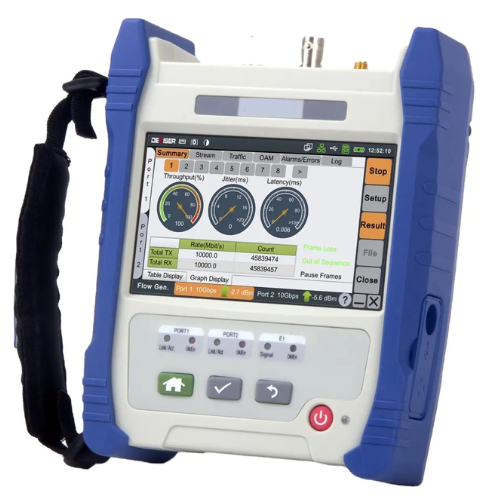

Amuse Tech Solutions gigabit ethernet analyzer is a handheld ethernet service tester that supports testing for speeds up to 1 Gbps. It’s the next generation of telecommunication systems analysis, serving the growing need for high-speed metropolitan access at unmatched cost performance. This product instruments excel at all ethernet measurement applications, including performance evaluation, metro Ethernet installation, activation, and maintenance, point-to-point Ethernet joining-up service planning, real-time online fault diagnosis, wireless backhaul service verification etc.
Features
- Complete solution for activating verifying & fault-diagnosing
- Ethernet service from 10 Mbit/s to 1 Gbit/s quickly and easily
- 5 in (12.7 cm) (800 pixels x 480 pixels) color LCD touchscreen
- Dual 1000 Base-X SFP ports; perform two measurements simultaneously
- Convenient and intuitive user interface
- Integrates multiple software tools for field measurement
- Synchronous Ethernet (SyncE) and IEEE 1588v2 measurement
- RFC 2544: symmetrical and asymmetric results
- Ethernet BERT: Layer 1 to Layer 4
- 1564: service configuration and performance measurement
- Stream traffic generation and analysis: up to 10 streams simultaneously
- Smart loopback for layer 1 to layer 4
- VLAN (Q-in-Q) support
- MPLS support
- Packet delay variation measurement
- Cable diagnostics and optical power testing
- IPv6 support
- Ping, trace route
- PDF and CSV data report generation
- Rechargeable lithium battery powers
Technical Specifications
| Display | 5 in (12.7 cm) color LCD touchscreen |
| Ethernet BERT | Layer 1 to layer 4 |
| Jitter Compliance | IEEE 802.3 |
| External Port | USB, LAN, RJ-45 (dual port) |
| Transceiver Type | SFP (dual port) |
| Relative Humidity | 0% to 95% (non-condensing) |
| Charging Time | 5 hrs from fully discharged to fully charged |
| Frequency Accuracy Test | 4.6 ppm |
| Optical Power Accuracy Test | 2 dB |
| Ethernet Type | IEEE 802.3 |
| Connector (Accuracy Test) | LC |
| Tx Test Accuracy | 4.6 ppm |
| Rx Test Accuracy | 4.6 ppm |
| Duplex Mode | Full duplex |
| Connector (Electrical Port) | RJ-45 |
| Max Distance | 328 ft (100 m) |
| Transmission Bit Rate | 1.25 Gbit/s |
| Receiving Bit Rate | 1.25 Gbit/s |
| Working Temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Storage Temperature | -4 °F to 158 °F (-20 °C to 70 °C) |
